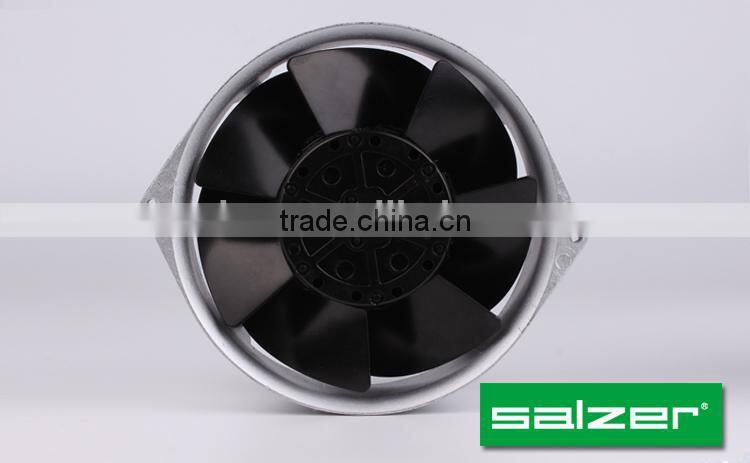

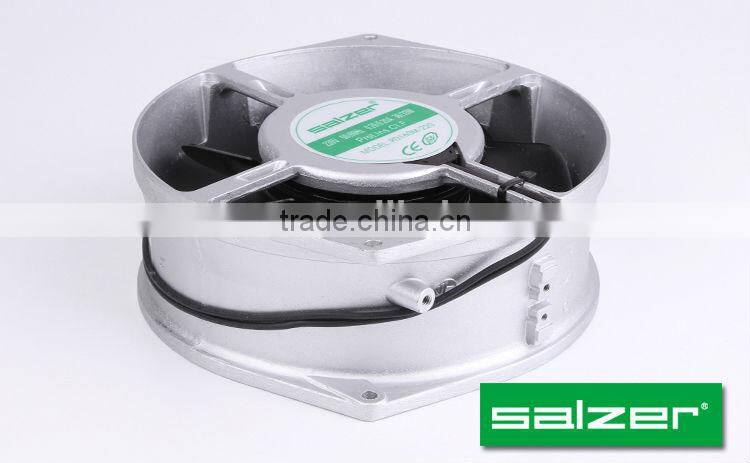

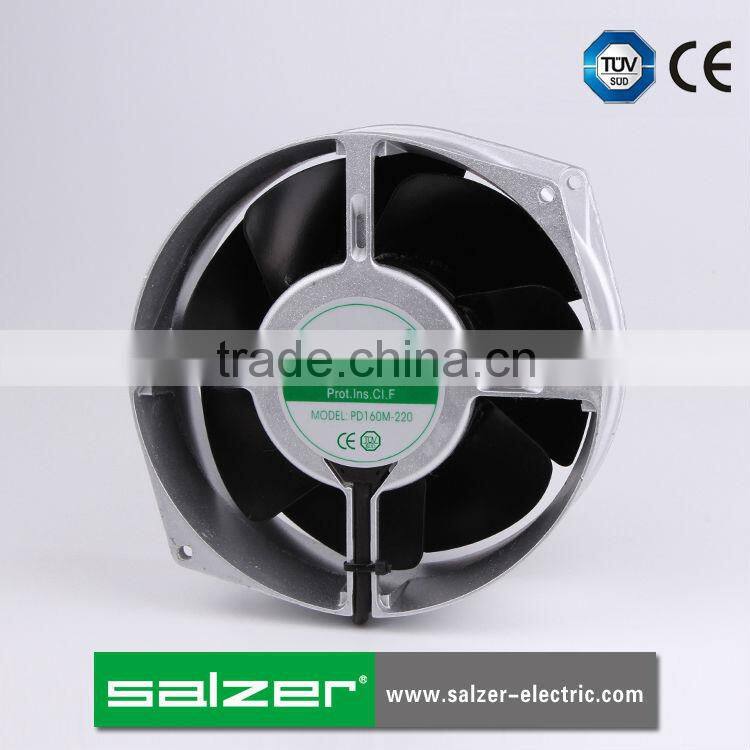

SALZER PD160M-220 axial flow fan blower

Specifications

axial flow fan blower
Voltage: 110VAC or 220VAC or 380VAC
Material: Metal frame and metal blade

SALZER PD160M-220 axial flow fan blower

Motor Structure: Shaded pole Induction Motor

Motor Protection :Thermal Protect (Standard Speed)

                               Impedance Protect (Half/Low Speed)

Insulation Resistance:100M Ω or over with a DC500V Megger

Insulating grade: B     Protecting grade:IP54

Dielectric Withstand Voltage: AC 1800V, at 0.5mA, 50/60Hz

Allowable Ambient Temperature Range: -20°c ~+80°c (Operating)

                                                                      -40°c~+80°c (Storage)

                                                                     NO such condensation ashinders practical use





Material
Casing:Die-cast aluminium

lmpeller:Sheet steel

(direct welded into motor and stove-enamelled in gray)

Bearing :Ball bearings





Technical Parameters

Dimension (mm)	Model	Vol- tage  (AC)	Freq- uency  (Hz)	Current (AMP)	Power (Watts)	Speed (PRM)	Air Flow (CFM)/ M3/h	Pres- sure (Pa)	Noise (dBA)	Weight (Gram)
172x150x55	PD160M-110	115	50	0.56	45	2700	191/325	80	48	1100
	PD160M-110	115	60	0.4.9	40	3000	224/380	120	52	1100
	PD160M-220	230	50	0.33	47	2700	191/325	80	48	1100
	PD160M-220	230	60	0.28	41	3000	224/380	120	52	1100

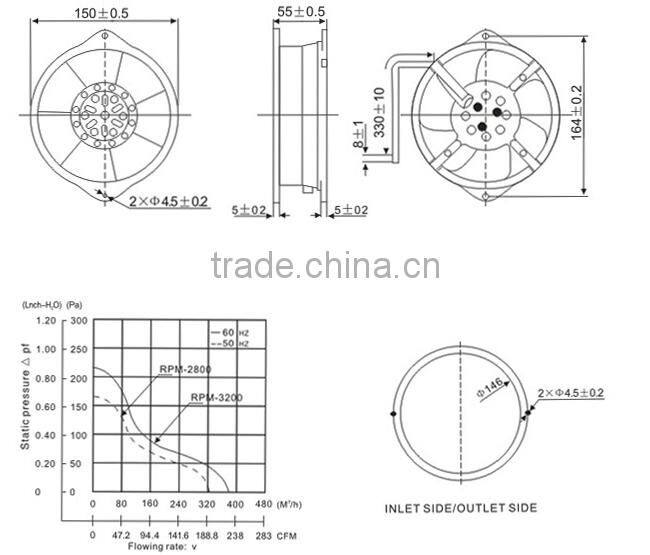

Outline drawing









We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
