SALZER PD150B-220 135mm axial fan
- 50000 Pint / Pints per Month
- Ningbo Shanghai Port
Product Details
| Electric Current Type: | AC | Mounting: | Other, plate installation | Blade Material: | Other, Plastic(UL94V-0 70%PBT+30%FRP) |
| Place of Origin: | Zhejiang, China | Brand Name: | SALZER | Model Number: | PD150B-110,PD150B-220,PD150B-380 |
| Voltage: | 110VAC, 220VAC, 380VAC | Power: | 25W, 30W | Air Volume: | 180CFM |
| Speed: | 2500RPM | Certification: | CE, Other, CE, TUV |
Product Description
Specifications
135mm axial fanVoltage: 110VAC or 220VAC or 380VAC
Material: Metal frame and Plastic blade
IP54

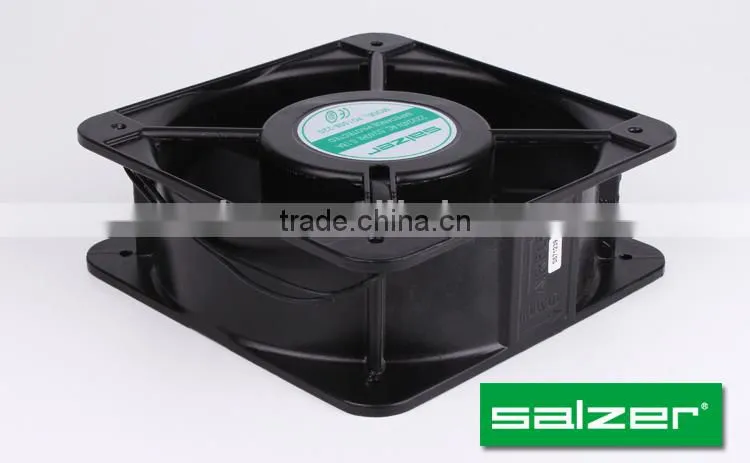

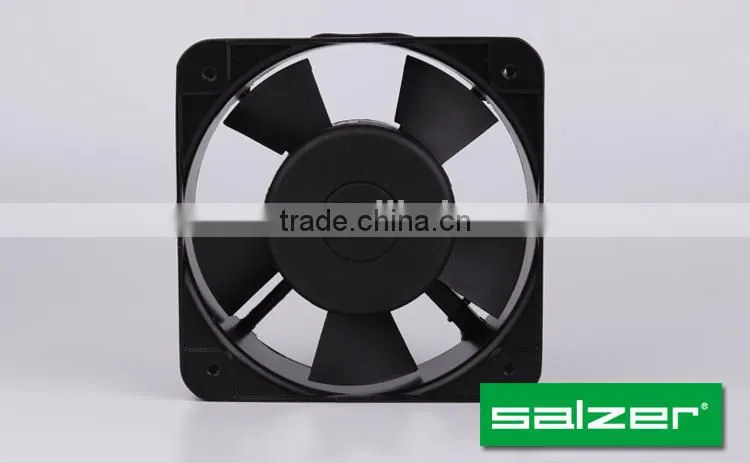

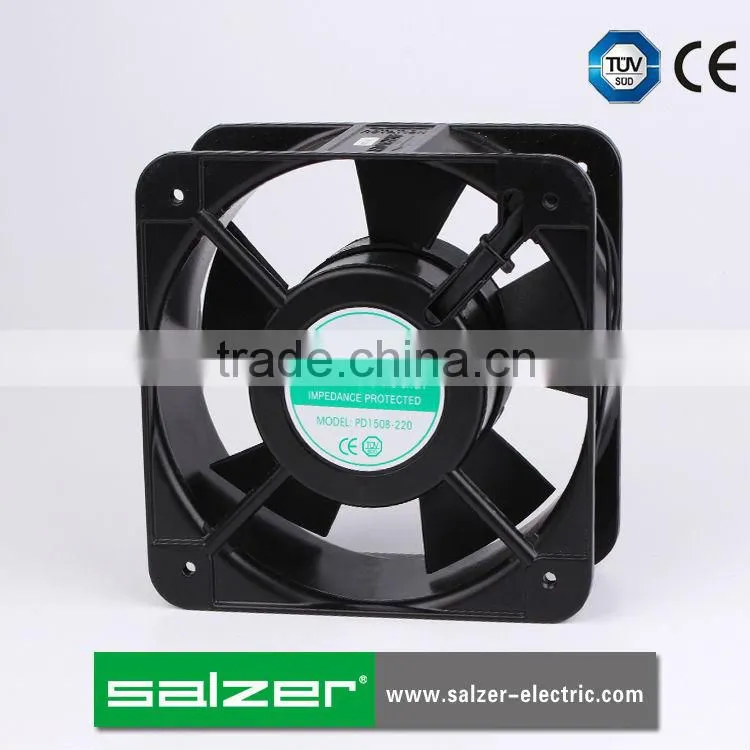

SALZER PD150B-220 135mm axial fan
General Information
Electric motor: Shaded pole AC motor design
Frame: The outside frame of the AC axial fan is made of high quality aluminum alloy
Anticorrosive and moisture-proof impeller: UL94V-0, 70% PBT, +30% FRP
Bearing: Sleeve bearing and ball bearing
Insulation: Class B
Insulation impedance: The case adds 500V DC to the coils, insulation impedance is more than 100MΩ
Dielectric strength: 0.5mA 1500V/AC min
Safety protection: Impedance protection
Operating temperature: -10 ~ +70°C
Storage temperature: -40 ~ +70°C

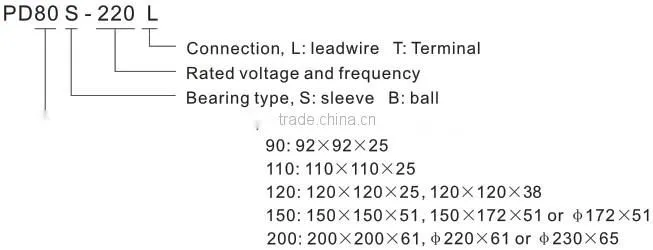

Ordering Information
150X150X51mm AC Axial Fan
Technical Parameters of AC Axial Fan
| Dimension (mm) | Model | Vol- tage (AC) | Freq- uency (Hz) | Current (AMP) | Power (Watts) | Speed (PRM) | Air Flow (CFM)/ M3/min | Pres- sure (Inch/ H2O) | Noise (dBA) | Weight (Gram) |
| 150X150X51 | PD150B-110 | 115 | 50 | 0.33 | 25 | 2500 | 180/3.06 | 0.38 | 49.6 | 960 |
PD150B-220 | 230 | 50 | 0.20 | 25 | 2500 | 180/3.06 | 0.38 | 49.6 | 960 | |
PD150B-380 | 380 | 50 | 0.14 | 30 | 2500 | 180/3.06 | 0.38 | 49.6 | 960 |

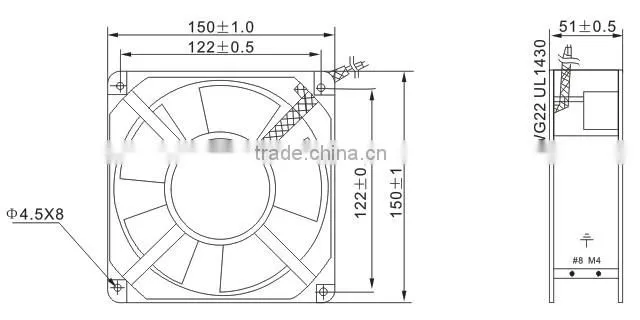

Outline drawing
We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.
