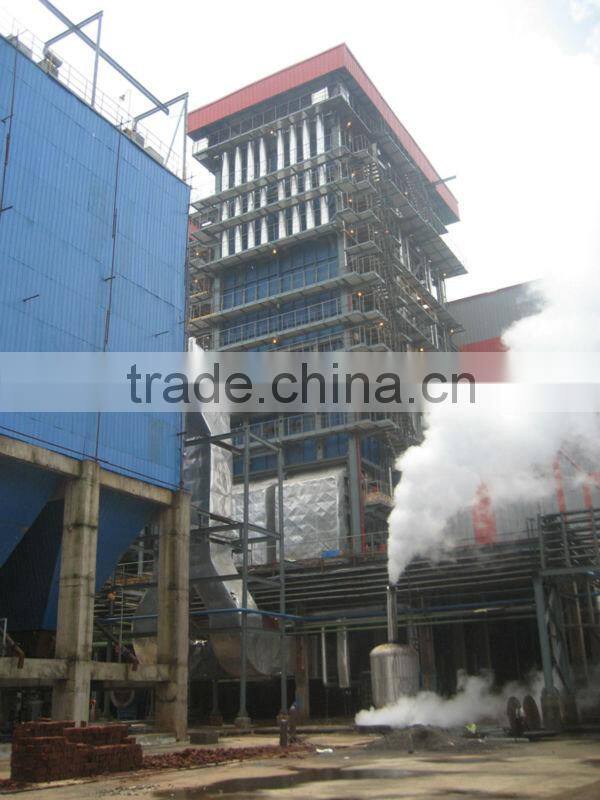

CFB Thermal Power Boiler From Grade A Manufacturer of China
US$ 100,000 - 1,200,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Once Through
Usage:
Power Station
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CFB Power Plant BoilerUS$ 100,000 - 1,200,000MOQ: 1 Set -
Circulating Fluidized Bed Thermal Power BoilerUS$ 300,000 - 1,200,000MOQ: 1 Set
-
Model of Thermoelectric Power PlantUS$ 100,000 - 1,200,000MOQ: 1 Set
-
Top Class Circulating Fluidized Bed Power Station BoilerNegotiableMOQ: 1 Set
-
China Manufacture Circulating Fluidized Bed Steam Boiler for Power StationNegotiableMOQ: 1 Set
Condition
New
Type
Once Through
Usage
Power Station
Structure
Other, water cooled wall
Pressure
High Pressure
Style
Vertical
Fuel
Other, coal / biomass
Place of Origin
Shandong, China
Brand Name
EPCB
Model Number
EPG25-130Ton
Output
Steam
Certification
ISO9001:2008; ASME; CE; AS; GOST
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Adopt various coal and high combustion efficiency CFB power boiler; Environmental protection: low monoxide & dust & NO emission

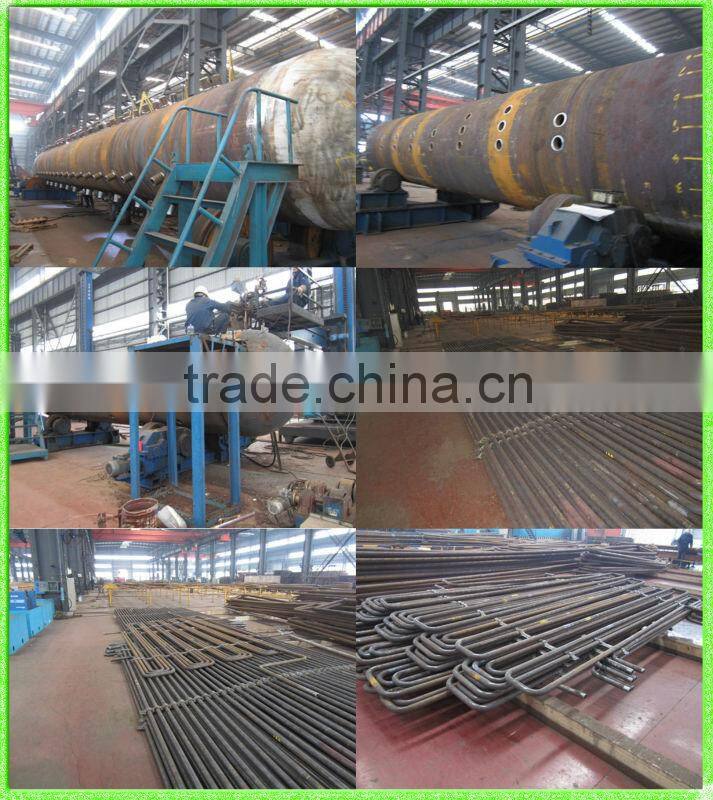

| I. Brief introduction of strength: 1. Quality: A grade boiler, A1, A2 grade pressure vessel manufacturing company. All products have passed ISO9001:2008 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification. 2. Management: In order to ensure the quality, we strictly monitor the comprehensive quality system from raw material procurement & re-testing & process to storage. All the steels and pipes are purchased from developed countries & the well-known large domestic enterprises. 3. Welding: Welding mainly uses advanced automatic welding, gas protected welding, TIG welding. Drum and other main pressure parts adopt CNC automatic welding, all of the welding 100% passed penetrant inspection. 4. Market: Our products have been exported to more than 40 countries, such as Australia, USA, Japan, Canada, Russia, Thailand, Mexico, Cyprus, Pakistan, Angola, Mongolia, etc. And supply parts for many Power Plant Projects. | |||||||||
| II. Production Description | |||||||||
|
Circulating fluidized bed is of low-temperature combustion, therefore, nitrogen oxides emissions of such boiler is much lower than that of coal-powder boiler, and such boiler could directly desulfurized during combustion process. Circulating fluidized bed boiler with high desulfurization rate is economical. Circulating fluidized bed boiler could adopt various coal types and has high combustion efficiency, which is especially suitable for low quality, low calorific value coal. The ash of circulating fluidized bed boiler is of high activity, thus it is easy to realized comprehensive utilization without secondary pollution. Circulating fluidized bed boiler could adjust its load in a wide range. Lowest load can be reduced t 30% of full capacity. | |||||||||
| Circulating Fluidized Bed Thermal Power boiler technique parameter | |||||||||
| ItemModel | EPG-35/3.82-A EPG-35/5.3-A | EPG-75/3.82-A EPG-75/5.3-A | EPG-130/3.82-A EPG-130/5.3-A | EPG-220/9.8-A | |||||
| Rated capacity t/h | 35 | 75 | 130 | 220 | |||||
| Rated working pressure Mpa | 3.82/5.3 | 3.82/5.3 | 3.82/5.3 | 9.81 | |||||
| Rated steam temperature °C | 450/500 | 450/500 | 450/500 | 540 | |||||
| Rated feed water temperature °C | 150 | 150 | 150 | 215 | |||||
| Boiler heating ares M2 | radiation heating surface | 188 | 380.3 | 777.39 | 858 | ||||
| Mixes-heating surface | - | - | - | 242 | |||||
| Superheater | 345.5 | 633 | 1089.5 | 2840 | |||||
| Economizer | 663 | 1448 | 2721.98 | 4303 | |||||
| Air preheater | 746 | 1743 | 2514.5 | 8746 | |||||
| Fluidized bed area M2 | 4.43 | 7.7 | 15.2 | 24.556 | |||||
| Design coal type | Soft coal,lean coal,Anthracite, | ||||||||
| Design thermal efficiency % | 88.3 | 90 | 90 | 89.2 | |||||
| Grain size of coal mm | ≤10 | ≤10 | ≤8 | 0~10 | |||||
| Grain size of desulfurizer mm | ≤2 | ≤2 | ≤1.5 | 0~1.5 | |||||
| Desulfurization efficiency % | ≥80 | ≥80 | ≥90 | ≥90 | |||||
| Ca/S Ratio | 2.5 | 2.5 | 2.5 | 2.5 | |||||
| Hot air temperature (primary/secondary air) C | 130/120 | 145/135 | 207/201 | 231/235 | |||||
| Smoke extraction temperature C | 150 | 150 | ~140 | 135 | |||||
| Transportation weight of Max. parts Kg | 10488 | 15538 | 18485 | 61718 | |||||
| Outside dimension of after-installed (LxWxH) M | 2.7x9.2x14.9 | 33.85x12x16.25 | 43.2x11.85x20.93 | 24.7x23x48.9 | |||||
