Specifications
Electric alternator1) STC type generator
2) Payment: T/T, L/C
3) 1 year warranty
4) short delivery,good price

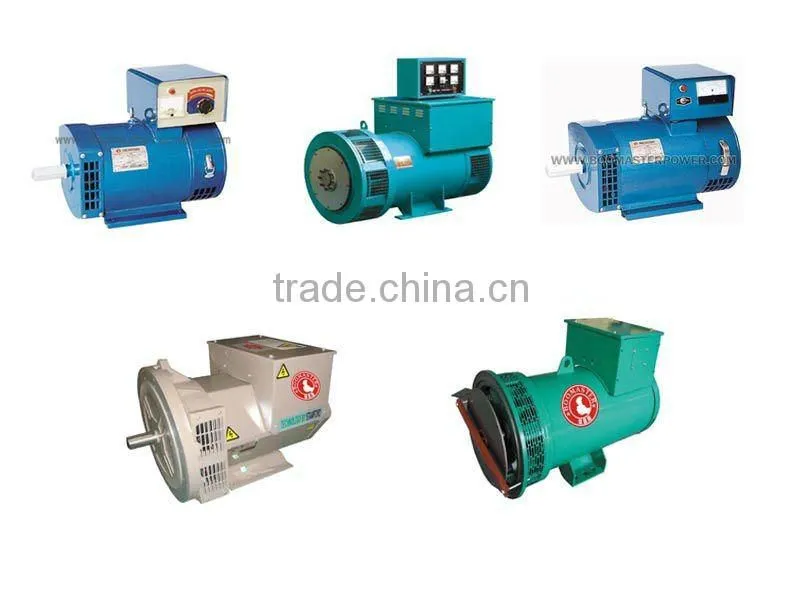

Electric alternator
Product Description
1. STC Generator is of harmonic wave self-excitation constant voltage system and automatic voltage control excitation constant voltage system; Both of them have excellent dynamic characteristic performance, convenient and reliable in operation.
2. The voltage of the alternator is 380V, 400V, 415V. The frequency is 50Hz or 60Hz
3. Its operation mode is of continuous duty.
4. The alternator can be coupled with a prime mover directly or thorough a V-belt. With 5% change of speed the prime mover under load variation of 0-100% at a voltage of 380 or 415V to get a satisfactory constant-Voltage performance.
5. STC series generators are mainly designed to serve as power generating unit of small capacity which supplies electricity for lighting purpose in ships as for household electric device use in towns or villages.
Warranty: 1 Year (according to our general sales conditions)
If you need more information about this series, please feel free to contact us.
| Model | Ouput (kw) |
Rated Capacity (KVA) |
Rated Current (A) |
Pole number | Rated Speed r. p. m |
| STC-3 | 3 | 3.8 | 5.4 | 4 | 1500 |
| STC-5 | 5 | 6.3 | 9 | ||
| STC-7.5 | 7.5 | 9.4 | 13.5 | ||
| STC-10 | 10 | 12.5 | 18.1 | ||
| STC-12 | 12 | 15 | 21.7 | ||
| STC-15 | 15 | 18.8 | 27.1 | ||
| STC-20 | 20 | 25 | 36.1 | ||
| STC-30 | 30 | 37.5 | 54.1 | ||
| STC-40 | 40 | 50 | 72.2 | ||
| STC-50 | 50 | 62.5 | 90.2 | ||
| STC-64 | 64 | 80 | 115.5 | ||
| STC-75 | 75 | 93.8 | 135.3 |
