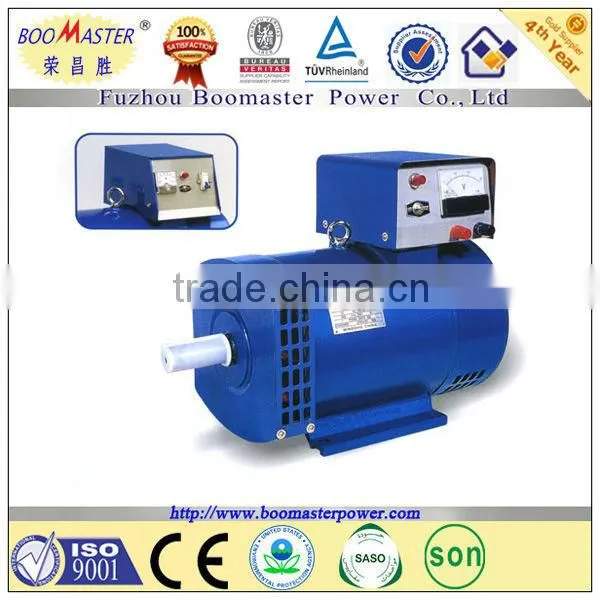

Copper Wire and Full Power Brush Alternator

Name: Copper Wire and Full Power Brush Alternator
Brand: BOOMASTER
SKU: 103701623
Availability: InStock

Copper Wire and Full Power Brush Alternator thumbnail-1

Copper Wire and Full Power Brush Alternator photo-1

US$ 99 - 599 MOQ: 10 Sets

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

BOOMASTER

Model Number:

ST and STC series

Contact Supplier Request Quote Chat Now

Elephant Tech Fuzhou Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ANY PORT IN CHINA

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name BOOMASTER

Model Number ST and STC series

Output Type AC Three Phase

Speed 1500/1800rpm

Frequency 50/60Hz

Rated Power 3-60Kw

Rated Voltage 230v-400v

Rated Current 0-99A

Specifications

Copper wire and full power Brush alternator
1.100% Copper wire
2.Strong base frame
3.Low price alternator
4.Full power

Copper wire and full power Brush alternator

AC Alternator

The generators are of drip-poof with rotary field type and with the adoption of harmonic excitation system, that allow your easy

The generators are to be used in town,the countryside, worksites, mountain and pasture lands as a electric power source for lighting purpose,It can also be used as a reserved power source for emergent case.The generators are of drip-poof with rotary field type and with the adoption of harmonic excitation system, that allow your easy operation and simple maintenance.
The generators are of three-phase four-wire type, making use of atar connection with neutral point. The rated line voltage is 400V. phase voltage 230V. frequency 50Hz. power factor 0.8(lag). It can provide 60Hz and the other voltages generator according to necessary. They can be coupled with a prime mover directly or through V-belt making right or reverse continuous rotation at the rated speed. when the revolution slip of prime mover is 3% and load varies in the range of 0 100% cos F 1.0 0.8 they give food constant voltage. After sudden change (increase or decrease)of load. the generators will soon return to their normal working state. without any starting devices the generator can directly start an unloaded squirrel cage induction motor.

Operating conditions

Under the following environment,the generator could run continuously:

1.Altitude:not exceed 1000m

2.Ambient temperature:-15°C-40°C

3.Relative air humidity:≤90%

Operating Conditions:
Under the following environment, The generator could be continuous and rated running:
Above sea level: Not exceed 1000m
Cooling air temperature: 258~313K(-15 ^oC ~ 40 ^oC)
Relative air damping: not exceed 90%

Technical Date

Model	Output (kW)		Voltage(V)	Current (A)	Power factor	Speed	Pole number
Model	KVA	kW	Voltage(V)	Current (A)	(cos)	(r.p.m)	Pole number
STC-3	3.8	3	400	5.4	0.8	1500	4
STC-5	6.3	5	400	9	0.8	1500	4
STC-7.5	9.4	7.5	400	13.5	0.8	1500	4
STC-8	10	8	400	14.4	0.8	1500	4
STC-10	12.5	10	400	18.1	0.8	1500	4
STC-12	15	12	400	21.7	0.8	1500	4
STC-15	18.8	15	400	27.1	0.8	1500	4
STC-20	25	20	400	36.1	0.8	1500	4
STC-24	30	24	400	43.3	0.8	1500	4
STC-30	37.5	30	400	54.1	0.8	1500	4
STC-40	50	40	400	72.2	0.8	1500	4
STC-50	62.5	50	400	90.2	0.8	1500	4

Guaranty:

Guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, our Boomaster will provide the free easy-damaged spare parts for problems caused by our quality of production or raw materials, except the damage caused by customer's incorrect manmade operation. After expiration, our company will provides cost spare parts maintenance for genset.
