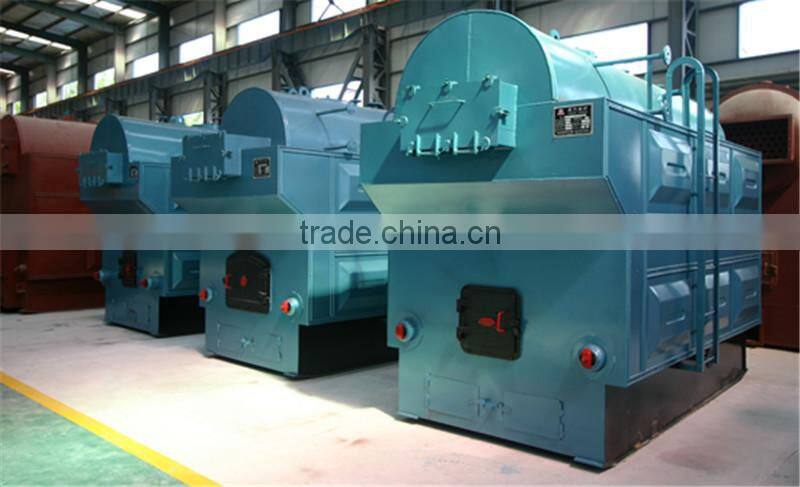

Wood waste solid fuel steam boilers hot water boiler using for bangladesh
Dear Customer:
Welcome to our website and hope our products will make you satisfied .
We think creatively,design bravely,manufacture precisely and loyalty to
our customers. And we have our own factory. So we can produce the products
according to customer requirements .
Give us a negotiate chance and we will yield you a surprise .
Yours,
EPCB
Features Of DZG Fixed Grate Steam Boiler:
1.clean coke is a solid fuel, low sulfur dioxide emissions after combustion, in line with national environmental requirements.
2.use of mechanical ventilation, complete combustion, Powerful, high thermal efficiency.
3.cast carbon longer interval, low labor intensity, simple, safe and reliable.
4.capacity than the same fuel (gas) boiler-time low investment, low operation cost, is an economical and environmentally friendly boiler type.
5.application of fuel: coke, anthracite block, the installation of desulfurization equipment for coal for the same.
6.boiler capacity of 1-4T / H (0.7-2.8MW).
| DZG series fixed grate boiler technique parameters | |||||||
| ItemType | DZG0.5-0.7/1.0-J | DZG1-0.7/1.0/1.25-J | DZG2-0.7/1.0/1.25-J | DZG0.35-0.7/95/70-J | DZG0.7-0.7/95/70-J | DZG1.4-0.7/95/70-J | |
| Rated capacity t/h | 0.5 | ||||||
Rated steam pressure Mpa | 0.7/1.0 | ||||||
Rated steam temperature C | 170/184 | ||||||
Feed water temperature C | 20 | ||||||
| Heated area M² | radiation /convection | 2.3/16.2 | 4.68/16.1 | 5.8/30.7 | 2.3/16.2 | 4.55/20.12 | 6.17/39.5 |
| Heat efficiency % | 75 | 78 | 78 | 75 | 78 | 78 | |
Fuel consumption kg/h | 76 | 146 | 290 | 76 | 146 | 290 | |
effective area of boiler M2 | 0.98 | 1.5 | 2.4 | 0.98 | 1.5 | 2.4 | |
| largest size of boiler transportation mm | length | 2970 | 3782 | 4307 | 2970 | 3782 | 4900 |
| width | 1950 | 1920 | 2130 | 1950 | 1800 | 2130 | |
| height | 2660 | 2820 | 3222 | 2660 | 2870 | 3222 | |
weight of largest parts of boiler ton | 8.3/8.4 | 11/11/11.6 | 15.7/15.8/16 | 8.3 | 11 | 15.5 | |
High Quality with Mature Design:
1. Quality:
A grade boiler, A1, A2 grade pressure vessel manufacturing company. All products have passed ISO9001:2008 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification.
2. Management:
In order to ensure the quality, we strictly monitor the comprehensive quality system from raw material procurement & re-testing & process to storage. All the steels and pipes are purchased from developed countries & the well-known large domestic enterprises.
3. Welding:
Welding mainly uses advanced automatic welding, gas protected welding, TIG welding. Drum and other main pressure parts adopt CNC automatic welding, all of the welding 100% passed penetrant inspection.
4. Market:
Asia: Kazakhstan, Uzbekistan, Kyrgyzstan, Tajikistan, Azerbaijan, Singapore, Hongkong, Philippines, Indonesia, Thailand, myanmar, Laos, United Arab Emirates, Saudi Arabia, Palestine, Afghanistan, Bangladesh, Malaysia, Qatar , Lebanon, Armenia, Yemen, Jordan
America: Colombia, Chile, Suriname,Peru, Bolivia, Ecuador
Africa: Sudan, Cameroon, Algeria, Libya, Benin, Nigeria, Egypt, Ghana, Guinea, Mauritius, Kenya, Ethiopia, Cote d'ivoire, Tunisia
Europe: Serbia, Albania
Manufacturer Recommend:
| |
| WNS Series Oil or Gas Fired Steam Boiler | DZL Series Coal or Biomess Fired Steam Boiler |
| |
| YY(Q)L Series Oil Gas Fired Thermal Oil Boiler | Electric Steam Boiler/ Hot Water Boiler |
