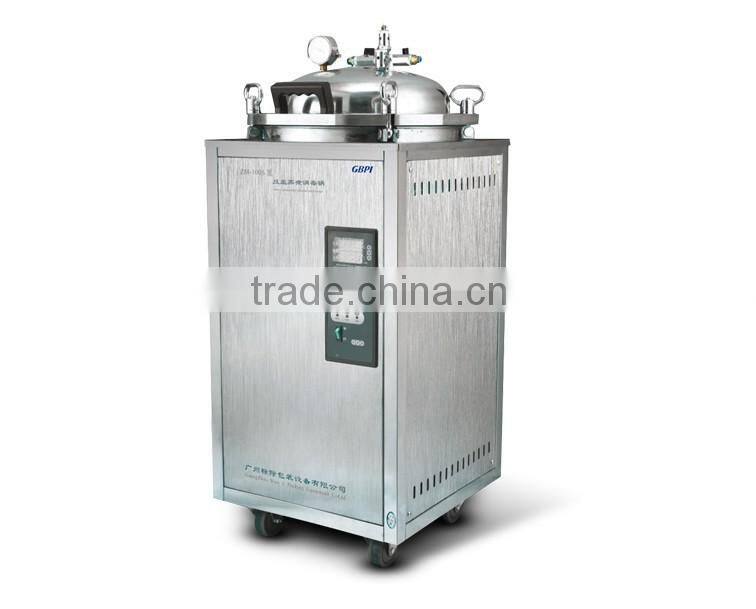

ZM-100 Inverted Pressure Sterilizer Boiler
Function & Application:
Used for sterilization and high temperature test of packaging materials (including adhesives and printing ink) in the industries of packaging, plastic films, food, medical units, inspection agency, research institute etc.
Standards
It carries the standard of GB 150, GB/T 10004, GB 4793, YY1007-2005
Technical Parameter
Item | ZM-100 |
The diameter of sterilizing barrel: | φ400mm,H500mm |
The capacity of storage barrel | 50L |
Range of working pressure | 0~0.22Mpa(saturated vapor pressure) |
Power consumption | 4.5kw±10% |
Water compensation pressure | ≥0.32 Mpa |
Sterilization temperature | 100~135°C |
Inverted pressure | 0.14~0.165 Mpa |
Operational power supply | AC220V /50Hz |
Features:
1. Automatic rising temperature, automatic keeping temperature, automatic timing;
2. Inverted Pressure Sterilized function;
3. Specially design for chamber,completely sterilized;
4. Use spray of water cooling and air cooling two ways, high efficiency cooling, completely sterilization, faster heating and cooling;
5. Five grades of safe measures, efficient and reliable.
After sale Service:
1. One year guarantee and all lifetime techinical support
2. USA, Australia Aisa Local agent for service
3. Speedy reply, 12hrs response to customer questions
4. Software free update
5. Minor maintenance ---parts ship within 24 hrs
6. Major maintenance---Technical will be sent within 15 days
About GBPI
GBPI is a professional manufacturer focused on developing
and producing packaging material test instruments. Founded in 2002, the company has received IOS9001 certification and reco gnized as high-tech enterprise and software enterprise by national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for technological progress.
Certificates:
ISO FTA
Gradation of the Certified Reference Materials
Calibration
Our customer:
Our Laboratory:
Our team:
