VVVF Elevator Geared Traction Machine BD-YJ210F, Lift Motor
- Shanghai port
- Money Gram
You May Like
-
VVVF Elevator Geared Traction Machine BD-YJ220, Lift Motor
-
VVVF Elevator Geared Traction Machine BD-YJ250B Lift Motor
-
VVVF Elevator Geared Traction Machine BD-YJ225, Lift Motor
-
VVVF Elevator Geared Traction Machine BD-YJ256, Lift Motor
-
VVVF Elevator Geared Traction Machine BD-YJ300, Lift Motor
-
VVVF Elevator Geared Traction Machine BD-YJ350, Lift Motor
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Banda | |
| Model Number | BD-YJ210F |
Product Description
VVVF Elevator Geared Traction Machine BD-YJ210F
1.Max. Static Load: 5900 kg
2.Control: VVVF
3.Speed:0.5-1.0m/s
Elevator Traction Machine, Lift Tractor, Lift Motor, Geared Elevator Motor Traction Machine,AC1,AC2,VVVF Lift Machine, Gearless Traction Machine for Elevator,VVVF Traction Machine

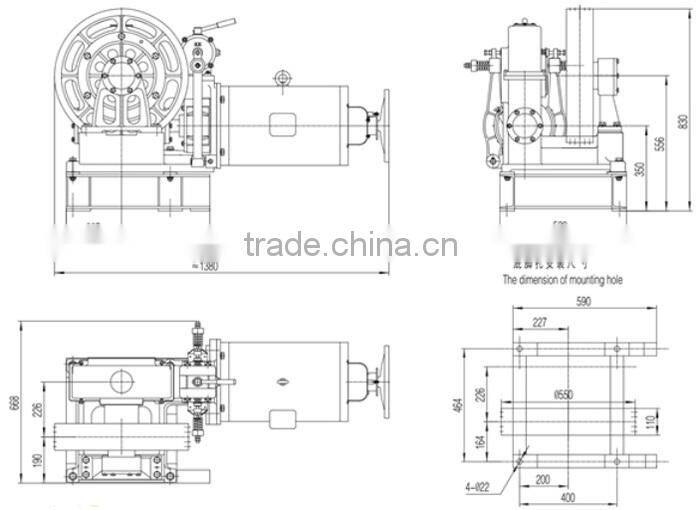

Elevator Geared Traction Machine Drawing:
VVVF Elevator Geared Traction Machine Specification:
Load (KG) | Speed (m/s) | Reduction Ratio | Wire Rope (mm) | Main sheave
| Motor Specification | Brake Voltage | Weight (kg) | Machine Dimension (mm) | Static Load (kg) | ||||||
Roping (1:1) | Motor Model | Power (kw) | Pole | RPM | Current (A) | Open | Keep | H | L | ||||||
| 630 | 1.0 | 55:2 | 13x5 | 550-20 | 7.5 | 6P | 954 | 16 | 110 | 80 | 600 | 900 | 5900 | ||
| 800 | 1.0 | 55:2 | 13X5 | 550-20 | 9 | 6P | 954 | 19.5 | 110 | 80 | 600 | 1440 | |||
| 1000 | 0.5 | 55:1 | 13X5 | 550-20 | 7.5 | 6P | 954 | 16.5 | 110 | 80 | 600 | 1440 | |||
| 1000 | 1.0 | 55:2 | 13x5 | 550-20 | 11 | 6P | 954 | 24 | 110 | 80 | 600 | 1460 | |||
Roping (2:1) | 1460 | ||||||||||||||
| 1500 | 0.5 | 55:2 | 13x5 | 550-20 | 7.5 | 6P | 954 | 16 | 110 | 80 | 600 | 1460 | |||
| 1600 | 0.5 | 55:2 | 13x5 | 550-20 | 9 | 6P | 954 | 19.5 | 110 | 80 | 600 | 1460 | |||
| 2000 | 0.5 | 55:2 | 13x5 | 550-20 | 11 | 6P | 954 | 24 | 110 | 80 | 600 | 1460 | |||
Elevator Geard Traction Machine Picture:
Elevator Geared Traction Machine Delivery:
30Days based on advance payment.
Elevator Geread Traction Machine Shipping:
By sea, by air, by DHL, UPS, Fedex, TNT, Aramex, and so on.
VVVF Elevator Geared Traction Machine Packing:
