Product Details
| Place of Origin | Jiangsu, China | Brand Name | Banda | |
| Model Number | BD-MCG100 |
Product Description
Elevator Gearless Traction Machine MCG100
1.Max. Static Load:2500 kg
2.Load: 320-630kg
3.Weight:200kg
Elevator Traction Machine, Lift Tractor, Geared Elevator Motor Traction Machine,AC1,AC2,VVVF Lift Machine, Gearless Traction Machine for Elevator,VVVF Traction Machine
Elevator Gearless Traction Machine Specification:
| Load(Kg) | 320 | 320 | 320 | 320 | 450 | 450 | 450 | 450 | 630 | 630 | 630 | 630 |
| Speed (m/s) | 0.5 | 0.63 | 1.0 | 1.5 | 0.5 | 0.63 | 1.0 | 1.5 | 0.5 | 0.63 | 1.0 | 1.5 |
| RPM | 59 | 74 | 118 | 176 | 59 | 74 | 118 | 176 | 59 | 74 | 118 | 176 |
| Voltage | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Current | 3.8 | 3.8 | 5.2 | 7.8 | 5 | 5 | 7.5 | 11.3 | 7 | 7 | 11 | 15.6 |
| Power | 1.1 | 1.4 | 2.2 | 3.4 | 1.6 | 2 | 3.2 | 4.9 | 2.2 | 2.8 | 4.5 | 6.3 |
| Hz | 9.8 | 12.3 | 19.7 | 29.5 | 9.8 | 12.3 | 19.7 | 29.5 | 9.8 | 12.3 | 19.7 | 29.5 |
| Sheave | 325-12 | 325-12 | 325-12 | 325-12 | 325-12 | 325-12 | 325-12 | 325-12 | 325-12 | 325-12 | 325-12 | 325-12 |
| Wire rope | 8x3 | 8x3 | 8x3 | 8x3 | 8x4 | 8x4 | 8x4 | 8x4 | 8x5 | 8x5 | 8x5 | 8x5 |
| Pole | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |

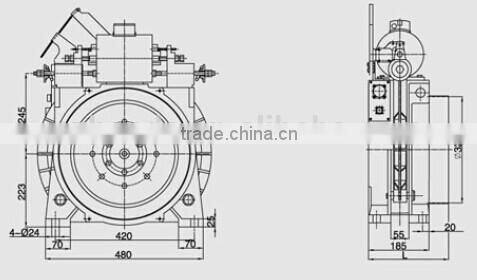

Elevator Gearless Traction Machine Drawing:
Elevator Traction Machine Picture:
Elevator Gearless Traction Machine Picture:
Elevator Traction Machine Packing:
