Elevator Gearless Belt Traction Machine BD-100, Lift Motor

Elevator Gearless Belt Traction Machine BD-100, Lift Motor thumbnail-1
Elevator Gearless Belt Traction Machine BD-100, Lift Motor photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Banda
Model Number:
BD-100
Contact Supplier Request Quote Chat Now
Suzhou Banda Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Banda
Model Number BD-100

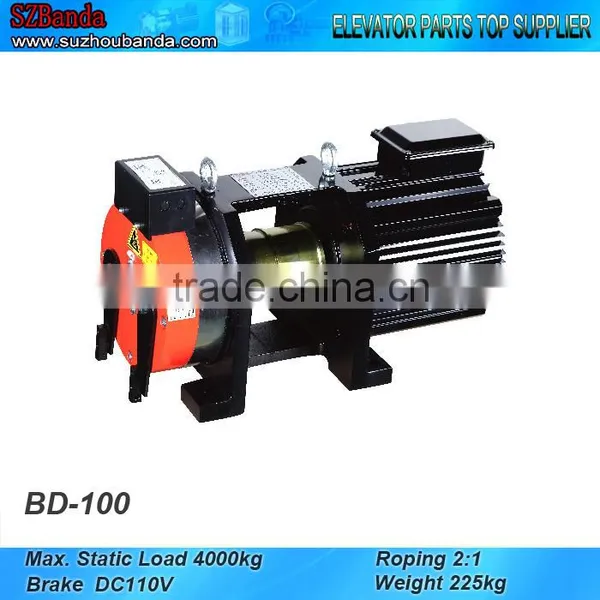

Elevator Gearless Belt Traction Machine BD-100

1.Max. Static Load:4000 kg

2.Load: 320-1600kg

3.Weight:150kg



Elevator Traction Machine



Elevator Traction Machine, Lift Tractor, Geared Elevator Motor Traction Machine,AC1,AC2,VVVF Lift Machine, Gearless Traction Machine for Elevator,VVVF Traction Machine



 Elevator Gearless Belt Traction Machine Specification:

Model

Load

(kg)

Speed

(m/s)

Torque

(Nm)

Power

(Kw)

Frequency

(HZ)

 RPM

Current

380 V

Current

220V

 Rope
BD320 320 0.3 60 0.73  15.4  116  3.9  6.8  2-60
BD320  320 0.4  60  0.96  20.4  153  3.9  6.8  2-60
BD320  320 0.5  60  1.2  25.6  192  4.6  8.0  2-60
BD450  450 0.3  80  1.6  25.6  192  5.7  9.9  2-60
BD450  450 0.4  80  2.0 32.2  242  5.7   9.9  2-60
BD450  450 0.5  80  3.2  51.2  384  8.8  15.2  2-60
BD630  630 0.5  110  2.2  25.6  192  7.4  12.8  3-60
BD630  630 0.63  110  2.8  32.2  242  7.4  12.8  3-60
BD630  630 1.0  110  4.4  51.2  384  11.4  19.7  3-60
BD800  800 0.5  135  2.7  25.6  192  7.6  13.2  4-60
BD800  800 0.63  135  3.4  32.2  242  7.6  13.2  4-60
BD800  800 1.0  135  5.4  51.2  384  11.4  19.7  4-60
BD1000 1000 0.5  170  3.4  25.6  192  8.2  14.2  4-60
BD1000 1000  0.63  170  4.3  32.2  242  9.7  16.8  4-60
BD1000 1000 1.0  170  6.8  51.2  384  16.0  27.7  4-60
BD1250 1250 0.5  210  4.2  25.6  192  10.2  17.7  5-60
BD1250 1250 0.63  210  5.3  32.2  242  13.0  22.5  5-60
BD1250 1250 1.0  210  8.4  51.2  384  20.0  34.6  5-60
BD1600 1600 0.5  270  5.4  25.6  192  14.8  25.6  5-60
BD1600 1600 0.63  270  6.8  32.2  242  17.3  30.0  5-60
BD1600 1600 1.0  270  10.9  51.2  384  28.0  48.5  5-60

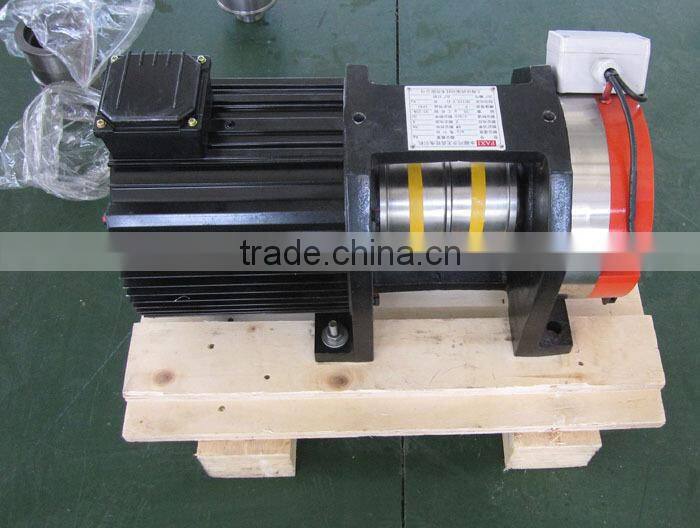

Elevator Gearless Traction Machine Picture:

Elevator Gearless Belt Traction Machine BD-100, Lift Motor

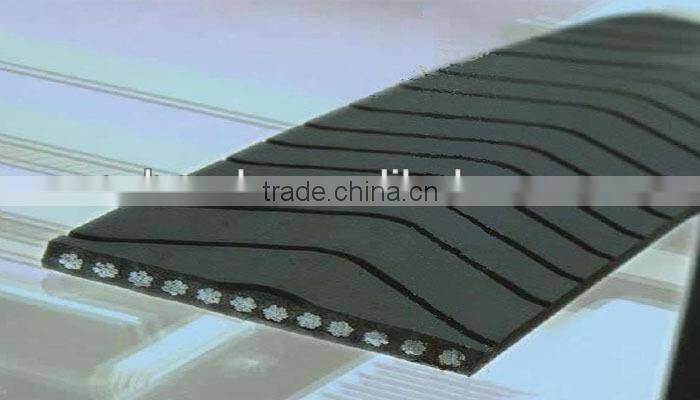

Elevator gearless Belt Traction Machine's Belt:

Elevator Gearless Belt Traction Machine BD-100, Lift Motor

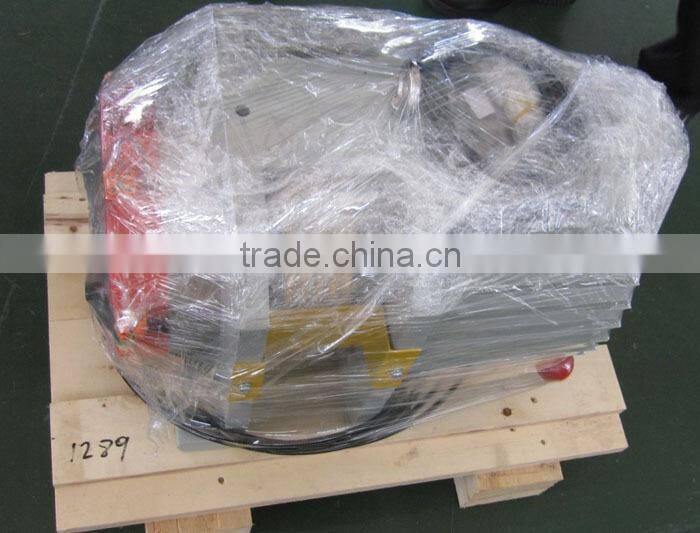

Elevator Traction Machine Packing:

Elevator Gearless Belt Traction Machine BD-100, Lift MotorElevator Gearless Belt Traction Machine BD-100, Lift Motor
