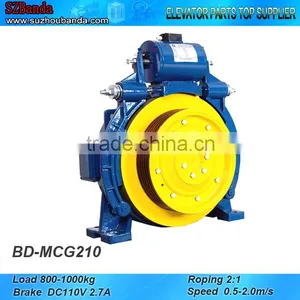

Elevator Gearless Traction Machine MCG210
1.Max. Static Load:4000 kg
2.Load: 800-1000kg
3.Weight:330kg
Elevator Traction Machine, Lift Tractor, Geared Elevator Motor Traction Machine,AC1,AC2,VVVF Lift Machine, Gearless Traction Machine for Elevator,VVVF Traction Machine
Elevator Gearless Traction Machine Specification:
| Load(Kg) | 800 | 800 | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Speed (m/s) | 0.63 | 1.0 | 1.5 | 1.6 | 1.75 | 2.0 | 0.63 | 1.0 | 1.5 | 1.6 | 1.75 | 2.0 |
| RPM | 60 | 96 | 143 | 153 | 167 | 190 | 60 | 96 | 143 | 153 | 167 | 190 |
| Voltage | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Current | 10.4 | 13 | 18 | 19 | 21 | 23.8 | 11.2 | 14.8 | 26 | 26 | 26 | 27 |
| Power | 3.5 | 5.5 | 8.3 | 8.8 | 9.6 | 10.9 | 4.2 | 6.7 | 10 | 10.7 | 11.7 | 13.3 |
| Hz | 12 | 19.2 | 28.6 | 30.6 | 33.4 | 38 | 12 | 19.2 | 28.6 | 30.6 | 33.4 | 38 |
| Sheave | 400-15 | 400-15 | 400-15 | 400-15 | 400-15 | 400-15 | 400-15 | 400-15 | 400-15 | 400-15 | 400-15 | 400-15 |
| Wire rope | 10x5 | 10x5 | 10x5 | 10x5 | 10x5 | 10x5 | 10x5 | 10x5 | 10x5 | 10x5 | 10x5 | 10x5 |
| Pole | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |

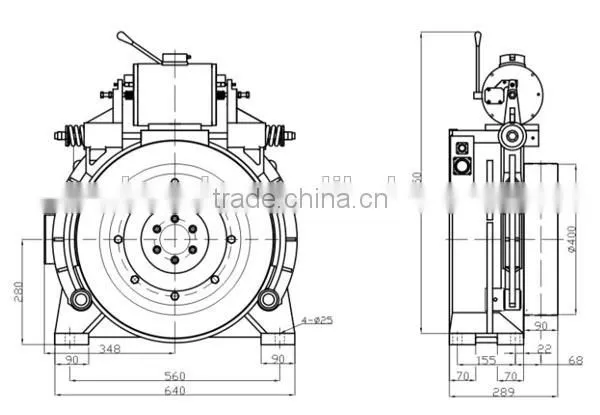

Elevator Gearless Traction Machine Drawing:

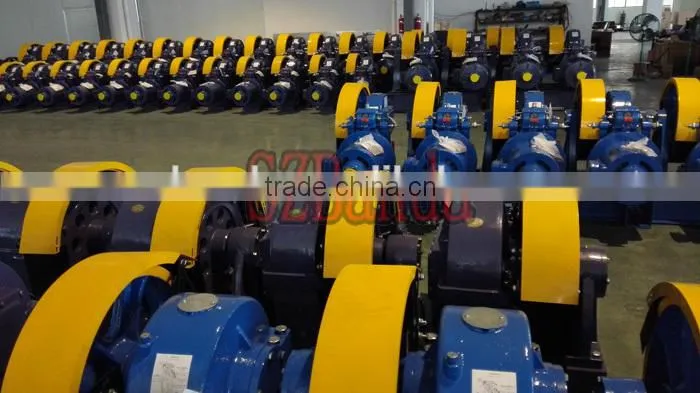

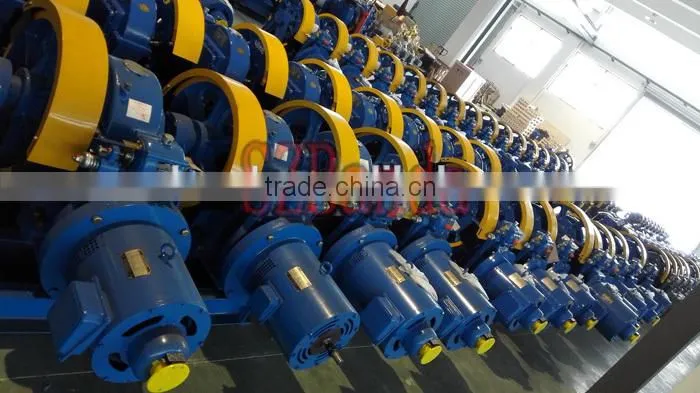

Elevator Traction Machine Picture:

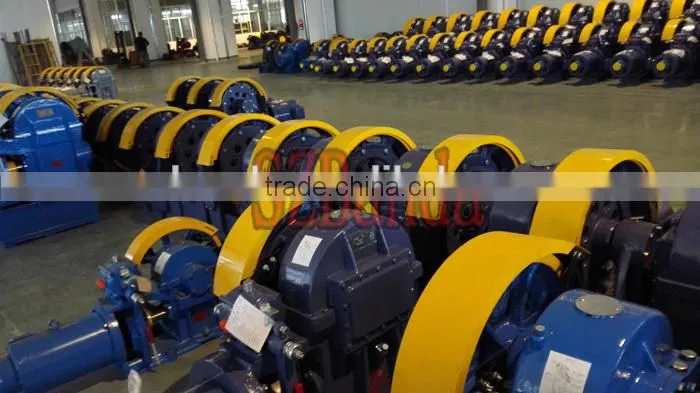

Elevator Gearless Traction Machine Picture:

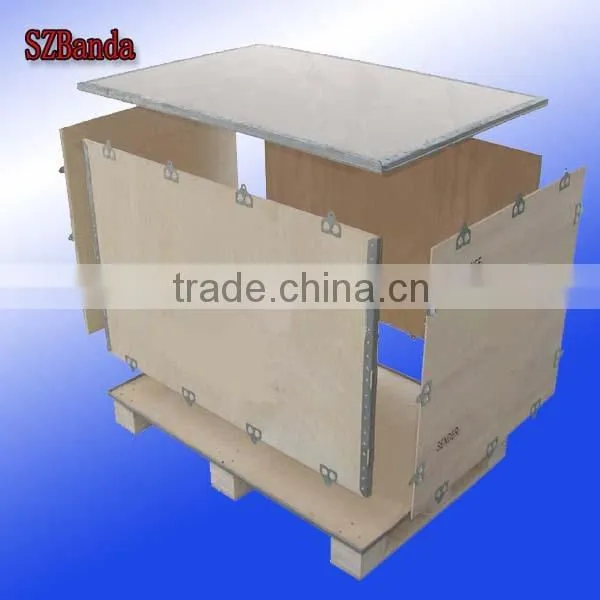

Elevator Traction Machine Packing:
