Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Cell > 320w Mono Solar Panels

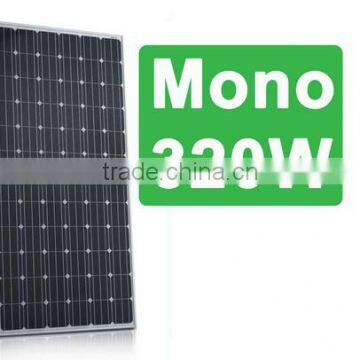

320w Mono Solar Panels

Jiangsu Modern Solar Lighting Co., Ltd.

US$ 0.49 - 0.55 MOQ: 1 Watt

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

MSL

Model Number:

MSLM-320W

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Lianyungang

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name MSL

Model Number MSLM-320W

Material Monocrystalline Silicon

Size 1956*992*50mm

Number of Cells 72pcs

Max. Power 320W

Product Description

320w mono solar panels series

STC	MSL290M-72	MSL295M-72	MSL300M-72	MSL305M-72	MSL310M-72	MSL315M-72	MSL320M-72
Maximum Power	290W	295W	300W	305W	310W	315W	320W
Module Efficiency	14.96%	15.22%	15.48%	15.73%	15.99%	16.256%	16.51%
Maxi Power Current	7.89A	7.99A	8.09A	8.21A	8.33A	8.44A	8.55A
Maxi Power Voltage	36.76V	36.96V	37.09V	37.15V	37.22V	37.33V	37.43V
Short Circuit Current	8.52A	8.56A	8.60A	8.65A	8.71A	8.78A	8.81A
Open Circuit Voltage	45.67V	45.78V	45.85V	45.96V	46.02V	46.31V	46.56V
Power Tolerance	0~+5W
Values at Standard Test Conditions STC(Air Mass AM1.5,Irradiance 1000W/m²,Cell Temperature 25℃)
Mechanical Characteristics
Cell Type			Monocrystalline 156x156mm,72(6x12)pcs in series
Glass			High Transmission,Low Iron,Tempered Glass
Frame			Anodized Aluminium Alloy
Junction box			IP65/IP67 rated,with bypass diodes
Dimension			1956x992x40/45/50mm
Output Cable			4mm2(EU)/12AWG(US),1000mm²
Weight			27Kg

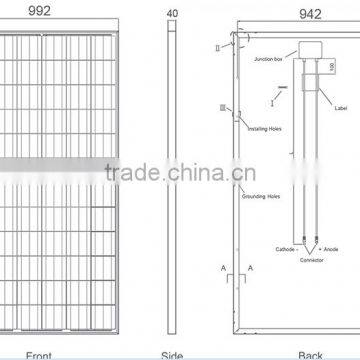

Installation Hole Location			See Drawing Above
No.of Bypass Diodes			6

Product Feature

1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
3. Unique frame design with high mechanical strength for easy Installation.
4. Advanced encapsulation material with multiplayer sheet lamination to provide efficient
protection from the severest environmental conditions, PET sheet imported from Toyo Japan with advanced encapsulating material
5. Outstanding electrical performance under high temperature and low irradiance conditons
6. Excellent performance in harsh weather,Outstanding electrical performance under high temperature and low irradiance
7. Strictly quality control ensure the stability and reliability, totally 30 QC procedures.
