Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Cell > 260w Mono Solar Panels

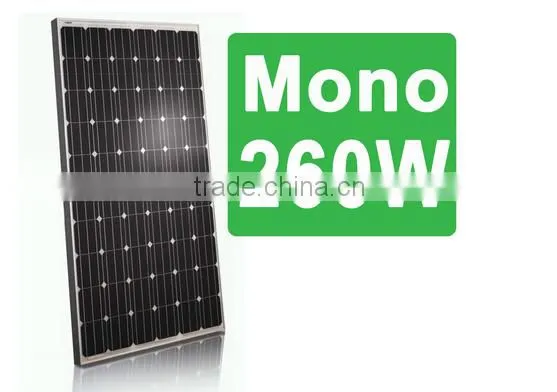

260w Mono Solar Panels

Jiangsu Modern Solar Lighting Co., Ltd.

US$ 0.49 - 0.55 MOQ: 1 Watt

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

MSL

Model Number:

MSLM-260W

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Lianyungang

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name MSL

Model Number MSLM-260W

Material Monocrystalline Silicon

Size 1640*990*40mm

Number of Cells 60pcs

Max. Power 260W

Product Description

260w mono solar panels series

STC	MSLM230-60	MSLM235-60	MSLM240-60	MSLM245-60	MSLM250-60	MSLM255-60	MSLM260-60
Maximum Power	230W	235W	240W	245W	250W	255W	260W
Module Efficiency	14.10%	14.35%	14.66%	14.96%	15.30%	15.60%	16.00%
Maxi Power Current	7.62A	7.72A	7.895A	8.033A	8.23A	8.31A	8.47A
Maxi Power Voltage	29.5V	30.2V	30.4V	30.5V	30.4V	30.6V	30.7V
Short Circuit Current	8.31A	8.59A	8.718A	8.781A	8.81A	8.84A	8.93A
Open Circuit Voltage	36.8V	36.8V	37.2V	37.2V	37.6V	37.7V	37.8V
Power Tolerance	0~+5W
Values at Standard Test Conditions STC(Air Mass AM1.5,Irradiance 1000W/m²,Cell Temperature 25℃)
Mechanical Characteristics
Cell Type			monocrystalline 156x156mm,60(6x10)pcs in series
Glass			High Transmission,Low Iron,Tempered Glass
Frame			Anodized Aluminium Alloy
Junction box			IP65/IP67 rated,with bypass diodes
Dimension			1640x990x35/40mm
Output Cable			4mm2(EU)/12AWG(US),1000mm²
Weight			19Kg
Installation Hole Location			See Drawing Above
No.of Bypass Diodes			3/6

Product Feature

1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
3. Unique frame design with high mechanical strength for easy Installation.
4. Advanced encapsulation material with multiplayer sheet lamination to provide efficient
protection from the severest environmental conditions, PET sheet imported from Toyo Japan with advanced encapsulating material
5. Outstanding electrical performance under high temperature and low irradiance conditons
6. Excellent performance in harsh weather,Outstanding electrical performance under high temperature and low irradiance
7. Strictly quality control ensure the stability and reliability, totally 30 QC procedures.
