100w Mono Solar Panels

Jiangsu Modern Solar Lighting Co., Ltd.
100w Mono Solar Panels thumbnail-1
100w Mono Solar Panels thumbnail-2
100w Mono Solar Panels photo-1
100w Mono Solar Panels photo-2
US$ 0.49 - 0.55 MOQ: 1 Watt
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
MSL
Model Number:
MSLM-100W
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Lianyungang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name MSL
Model Number MSLM-100W
Material Monocrystalline Silicon
Size 1195*545*30mm
Number of Cells 36pcs
Max. Power 100W
Product Description

100W MONO SOLAR PANELS SERIES



STCMSLM80MSLM85MSLM90MSLM95MSLM100MSLM110
Maximum Power80W85W90W95W100W110W
Maxi Power Current4.78A4.91A5.12A5.35A5.59A5.95A
Maxi Power Voltage17.81V17.89V17.94V17.99V18.06V22.20V
Short Circuit Current4.95A5.15A5.36A5.65A5.84A5.46A
Open Circuit Voltage21.98V22.05V22.14V22.28V22.45V26.5V
Power Tolerance0~+5W
Values at Standard Test Conditions STC(Air Mass AM1.5,Irradiance 1000W/m²,Cell Temperature 25℃)
Mechanical Characteristics
Cell Type                                                     Polycrystalline 125x125mm,36(4X9)s in series
GlassHigh Transmission,Low Iron,Tempered Glass
Frame                           Anodized Aluminium Alloy
Junction box                                                     IP65/IP67 rated,with bypass diodes
Dimension1195x545x35/40mm
Output Cable                                     4mm2(EU)/12AWG(US),1000mm²
Weight                         9Kg

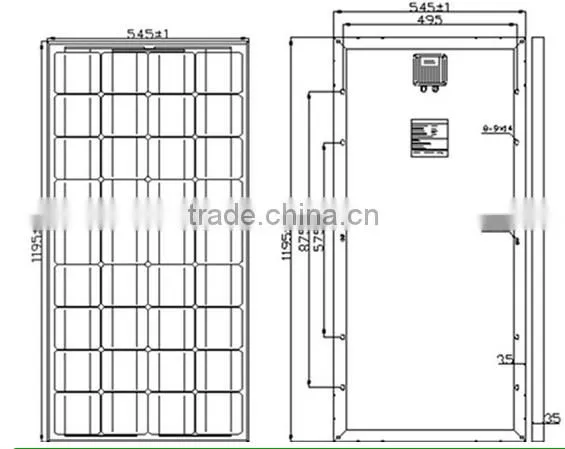

Installation Hole LocationSee Drawing Above
No.of Bypass Diodes3
Product Feature

  1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
3. Unique frame design with high mechanical strength for easy Installation.
4. Advanced encapsulation material with multiplayer sheet lamination to provide efficient
protection from the severest environmental conditions, PET sheet imported from Toyo Japan with advanced encapsulating material
5. Outstanding electrical performance under high temperature and low irradiance conditons
6. Excellent performance in harsh weather,Outstanding electrical performance under high temperature and low irradiance
7. Strictly quality control ensure the stability and reliability, totally 30 QC procedures.

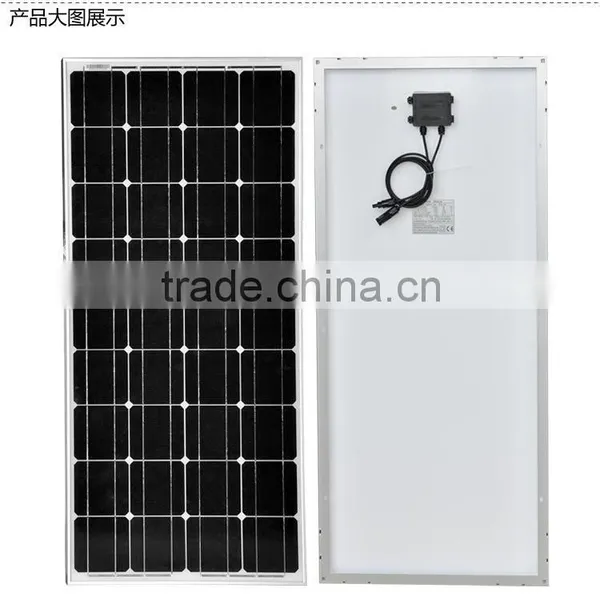

100w mono solar panels100w mono solar panels

PRODUCTION LINE

 100w mono solar panels100w mono solar panels

Packaging & Shipping

 100w mono solar panels

100w mono solar panels
