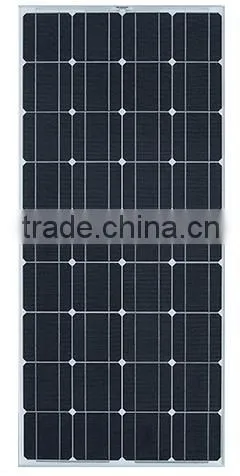

150W MONO SOLAR PANELS SERIES
| STC | MSL120M-36 | MSL130M-36 | MSL140M-36 | MSL150M-36 | MSL160M-36 |
| Maximum Power | 120W | 130W | 140W | 150W | 160W |
| Maxi Power Voltage | 17.45 | 17.75 | 17.96 | 18.25 | 18.51 |
| Maxi Power Current | 7.01 | 7.41 | 7.85 | 8.31 | 8.68 |
| Open Circuit Voltage | 21.72 | 27.84 | 22.05 | 22.20 | 22.32 |
| Short Circuit Current | 8.76 | 9.04 | 9.24 | 9.47 | 9.71 |
| Power Tolerance | 0~+5W | ||||
| Values at Standard Test Conditions STC(Air Mass AM1.5,Irradiance 1000W/m²,Cell Temperature 25℃) | |||||
| Mechanical Characteristics | |||||
| Cell Type | Monocrystalline 156x156mm,36(4x9)pcs in series | ||||
| Glass | High Transmission,Low Iron,Tempered Glass | ||||
| Frame | Anodized Aluminium Alloy | ||||
| Junction box | IP65/IP67 rated,with bypass diodes | ||||
| Dimension | 1480*673*30mm | ||||
| Output Cable | 4mm2(EU)/12AWG(US),1000mm² | ||||
| Weight | 13.5Kg | ||||

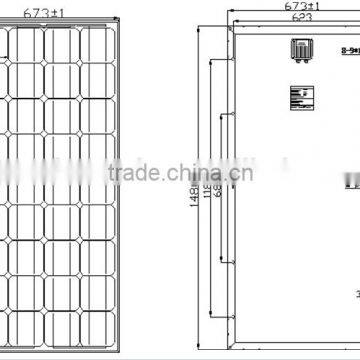

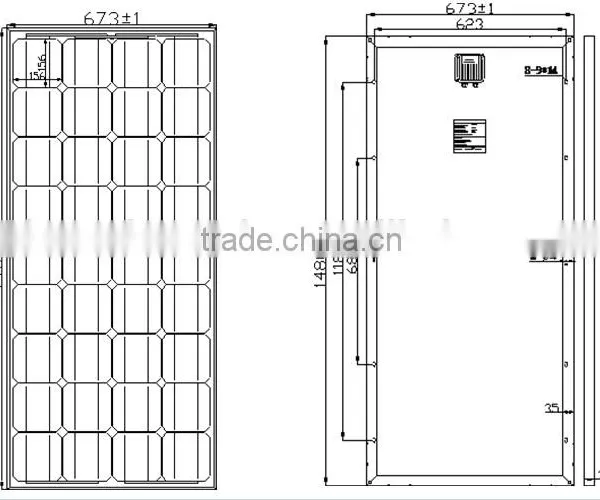

| Installation Hole Location | See Drawing Above | ||||
| No.of Bypass Diodes | 3 | ||||
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
3. Unique frame design with high mechanical strength for easy Installation.
4. Advanced encapsulation material with multiplayer sheet lamination to provide efficient
protection from the severest environmental conditions, PET sheet imported from Toyo Japan with advanced encapsulating material
5. Outstanding electrical performance under high temperature and low irradiance conditons
6. Excellent performance in harsh weather,Outstanding electrical performance under high temperature and low irradiance
7. Strictly quality control ensure the stability and reliability, totally 30 QC procedures.
