Home > Products > Building Material Series > Perpainted Metal Sheet

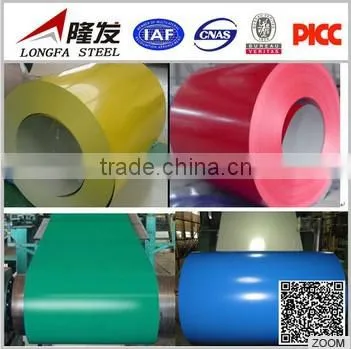

Perpainted Metal Sheet
- QINGDAO/TIANJIN
- T/T L/C D/P D/A
You May Like
Product Details
| Standard | AISI, JIS | Grade | sgcc/spcc | |
| Place of Origin | Shandong, China | Brand Name | shandong longfa | |
| Type | Steel Coil | Technique | Hot Rolled | |
| Surface Treatment | Galvanized | Application | Other | |
| Special Use | High-strength Steel Plate | Width | 110mm-1250mm | |
| Length | 700m-1100m |
Product Description
Specifications
Highly competitive price and quality1.Thickness:0.13mm~0.7mm
2.width:110mm~1250mm
3.Zinc coating:60g-275g/m2
4.Color:RAL
PRE-PRE-PAINTED GALVANIZED STEEL COIL DETAILED SPECIFICATION
1) AVAILABLE DESIGNATION
Quality | Q/BQB 440-2003 | JIS G3312-1994 | EN 10326-2004 | ASTM A653-02a |
EN 10327-2004 | (BASE PLATE) | |||
Commercial Steel | TDC51D | CGCC | DX51D+Z/AZ | CS Type A/B/C |
Forming Steel | (TSt01,TSt02,TSt03) | CGCD1 | FS Type A, Type B | |
Drawing steel | TDC52D /TDC53D | - | DX52D+Z/AZ | DDS TYPE A/C |
DX53D+Z/AZ | ||||
Structural Steel | TS280GD(TStE28) | CGC400 | S280D+Z/AZ | SS275 |
TS350GD(TStE34) | CGC440 | S350D+Z/AZ | SS340 Class1 |
2) OUR SPECIFICATION
Available Size:
Manufacturer | Thickness | Width | Length of plate | Inner diameter of coil |
SHANDONG LONGFA STEEL PLATE | 0.13-1.2mm | 800/914/1000/1200/1219/1250mm | 1000-6000mm | 508mm/610mm |
Coated Mass:
Base plate | Available Coated Mass(g/m^2)
|
Galvanized Steel | 60,80, 100, 120, 160, 180 |
Galvalume Steel | 50, 70, 150 |
Available Painting:
Category of Painting | Item | Code | |
Polyester | PE | ||
High-durability polyester | HDP | ||
Silicon modified polyesters | SMP | ||
Polyvinylidene fluoride | PVDF | ||
Easy-Cleaning | — | ||
Painting Thickness | Top side: 20±5microns; | ||
Bottom side: 5~7microns. | |||

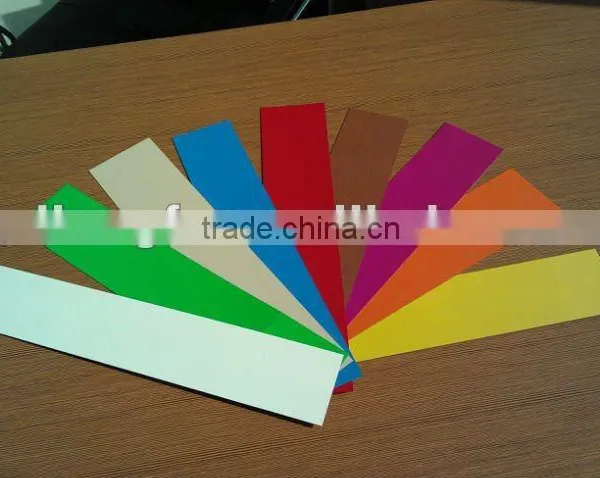

Color System | Produce according to RAL Color System or as per buyer’s color sample. | ||
Painting structure | Top surface | Bottom surface |
|
Primer coating | No coating | 1/0 | |
Primer coating | Primer coating | 1/1 | |
Primer coating + Finish coatin | No coating | 2/0 | |
Primer coating + Finish coating | Primer coating or single back coating | 2/1 | |
Primer coating + Finish coating | Primer coating + Finish back coating | 2/2 | |
Note: Protect film available
3) APPLICATION OF OUR PREPAINTED STEEL

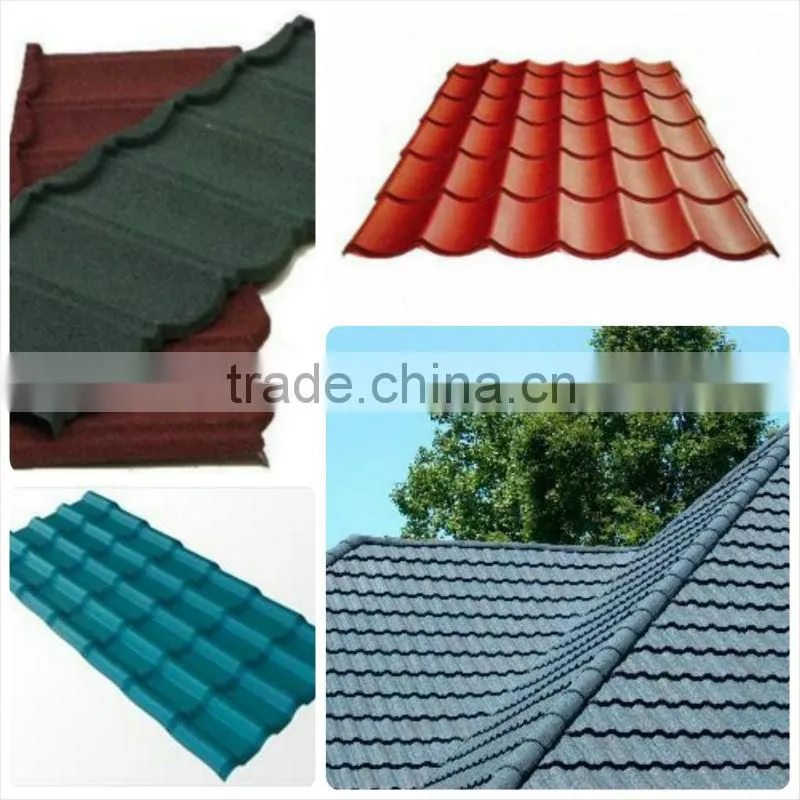

Construction | Outside | Workshop, agricultural warehouse, residential precast unit, corrugated roof, roller shutter door, rainwater drainage pipe, retailer booth |
Inside | Door, doorcase, light steel roof structure, folding screen, elevator, stairway, vent gutter | |
Electrical appliance | Refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker | |
Furniture | Central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf | |
Carrying trade | Exterior decoration of auto and train, clapboard, container, isolation lairage, isolation board | |
Others | Writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment | |
4)ISO CERTIFICATE

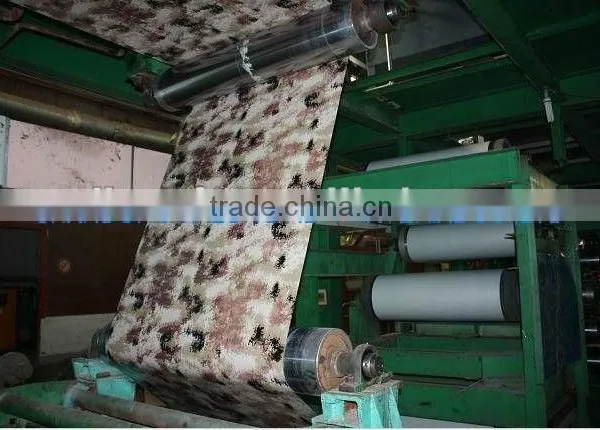

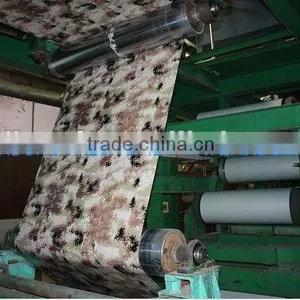

5)PPGI PRODUCE PROCESS
