Specifications
Highly competitive price and quality1.Thickness:0.13mm~0.7mm
2.width:110mm~1250mm
3.Zinc coating:60g-275g/m2
4.Color:RAL
PPGI PRE-PAINTED GALVANIZED STEEL COIL
1) AVAILABLE DESIGNATION
Quality |
Q/BQB 440-2003 |
JIS G3312-1994 |
EN 10326-2004 |
ASTM A653-02a |
EN 10327-2004 |
(BASE PLATE) |
|||
Commercial Steel |
TDC51D |
CGCC |
DX51D+Z/AZ |
CS Type A/B/C |
Forming Steel |
(TSt01,TSt02,TSt03) |
CGCD1 |
FS Type A, Type B |
|
Drawing steel |
TDC52D /TDC53D |
- |
DX52D+Z/AZ |
DDS TYPE A/C |
DX53D+Z/AZ | ||||
Structural Steel |
TS280GD(TStE28) |
CGC400 |
S280D+Z/AZ |
SS275 |
TS350GD(TStE34) |
CGC440 |
S350D+Z/AZ |
SS340 Class1 |
2) OUR SPECIFICATION
Available Size:
Manufacturer |
Thickness |
Width |
Length of plate |
Inner diameter of coil |
SHANDONG LONGFA STEEL PLATE |
0.13-1.2mm |
800/914/1000/1200/1219/1250mm |
1000-6000mm |
508mm/610mm |
Coated Mass:
Base plate |
Available Coated Mass(g/m^2)
|
Galvanized Steel |
60,80, 100, 120, 160, 180 |
Galvalume Steel |
50, 70, 150 |
Available Painting:
Category of Painting |
Item |
Code |
|
Polyester |
PE |
||
High-durability polyester |
HDP |
||
Silicon modified polyesters |
SMP |
||
Polyvinylidene fluoride |
PVDF |
||
Easy-Cleaning |
— |
||
Painting Thickness |
Top side: 20±5microns; |
||
Bottom side: 5~7microns. | |||
Color System |
Produce according to RAL Color System or as per buyer’s color sample. |
||
Painting structure |
Top surface |
Bottom surface |
|
Primer coating |
No coating |
1/0 |
|
Primer coating |
Primer coating |
1/1 |
|
Primer coating + Finish coatin |
No coating |
2/0 |
|
Primer coating + Finish coating |
Primer coating or single back coating |
2/1 |
|
Primer coating + Finish coating |
Primer coating + Finish back coating |
2/2 |
|
Advantage

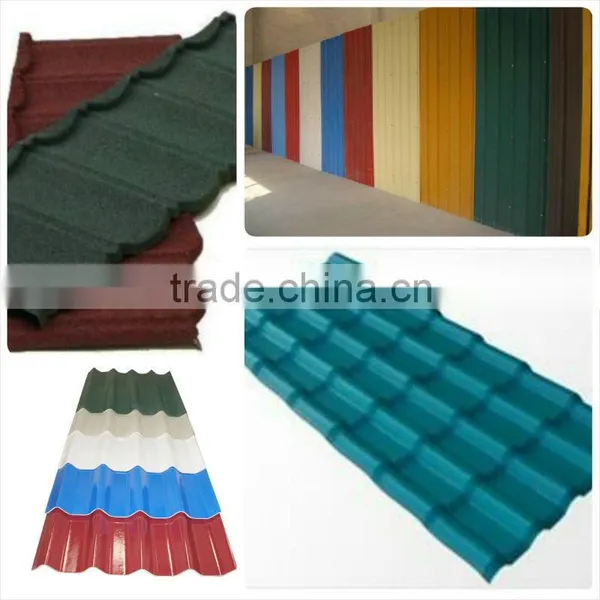

APPLICATION OF OUR PREPAINTED STEEL
Construction |
Outside |
Workshop, agricultural warehouse, residential precast unit, corrugated roof, roller shutter door, rainwater drainage pipe, retailer booth |
Inside |
Door, doorcase, light steel roof structure, folding screen, elevator, stairway, vent gutter |
|
Electrical appliance |
Refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker |
|
Furniture |
Central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf |
|
Carrying trade |
Exterior decoration of auto and train, clapboard, container, isolation lairage, isolation board |
|
Others |
Writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment |
|

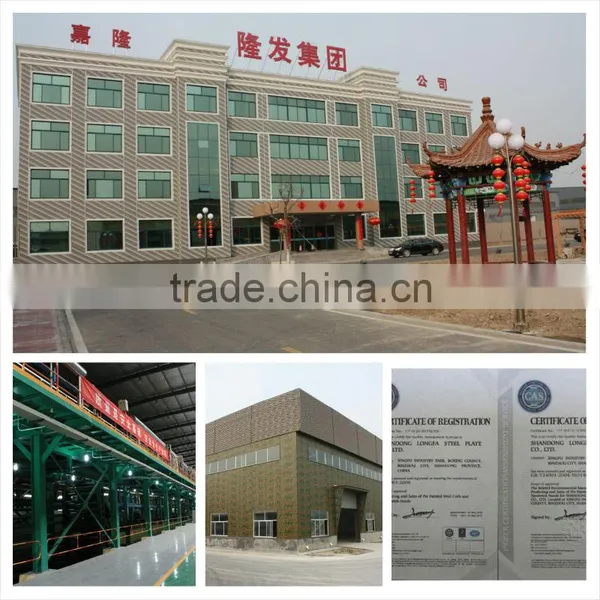

Office
ISO CERTIFICATE

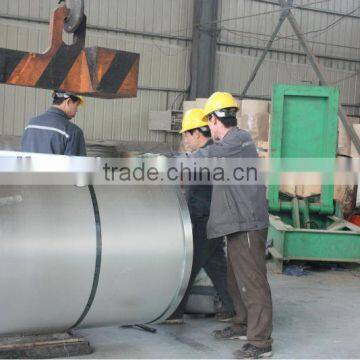

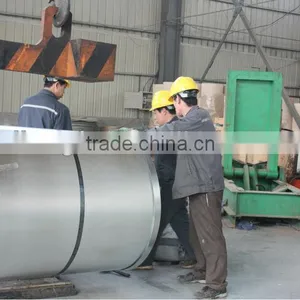

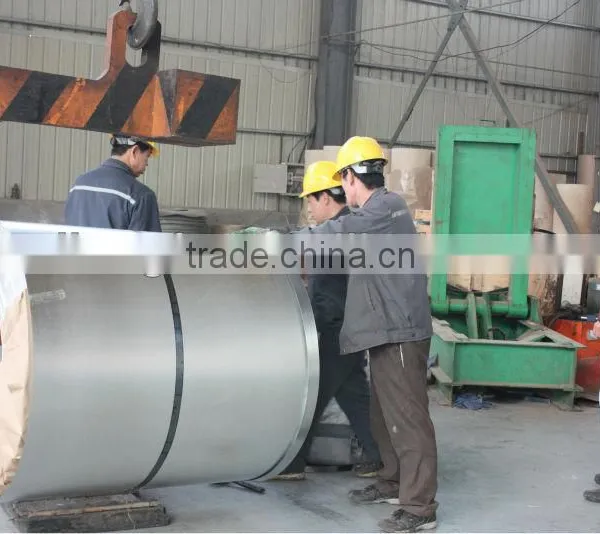

Package

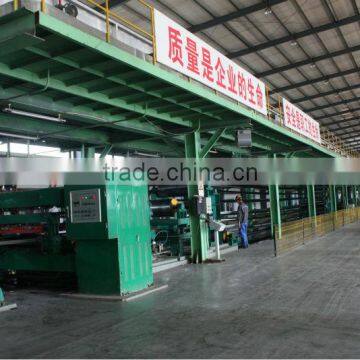

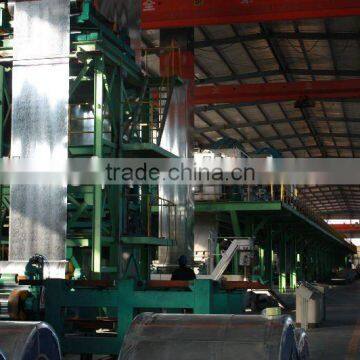

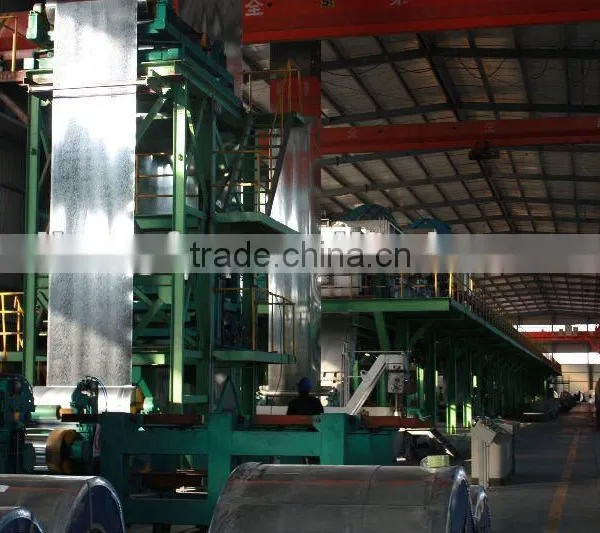

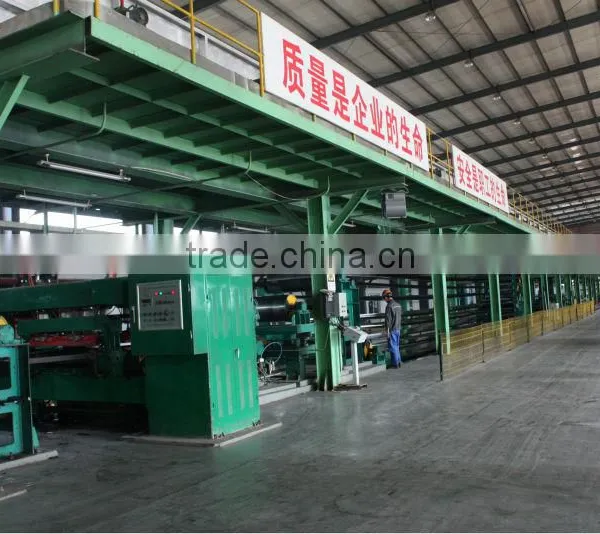

PPGI PRODUCE PROCESS
