steel coilshigh quality best price
standard export package
short delivery
good follow up service

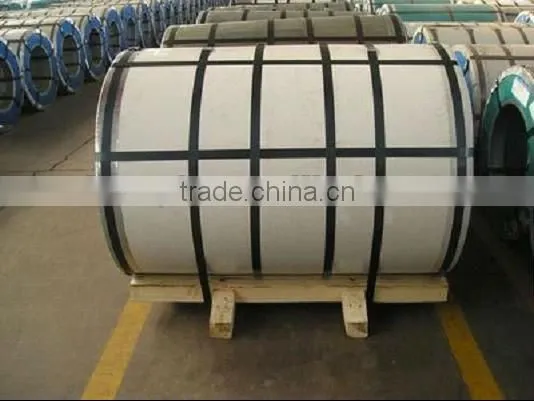

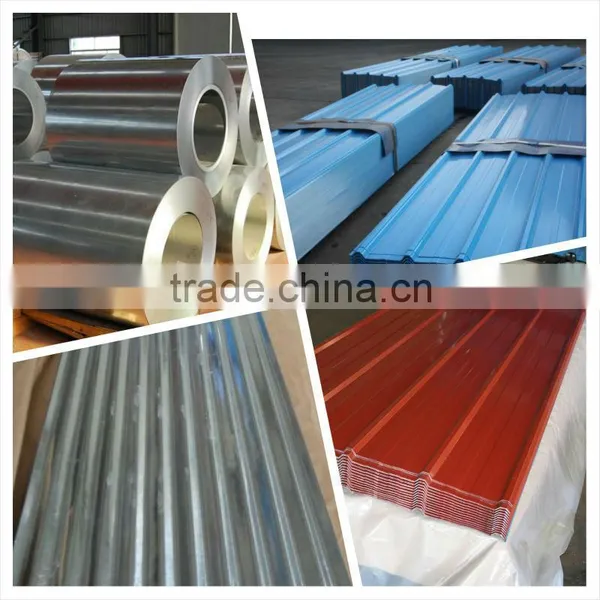

steel coils
1.Grade:SGCC,DX51D+Z
2.Thickness:0.18mm-1.2mm
3.Width:600mm-1250mm
4.ISO9001,ISO14001
1.Product Specification
1). Available Size:
Manufacturer | Thickness | Width | Inner diameter of coil | Weight of coil |
Shandong Longfa Steel PlateCo.,Ltd | 0.16-1.2mm | available from 600-1250mm Common width: 914/1000/ 1200/1219/1250mm | 508mm/610mm | 2.5-8.0tons |
2). Base plate:
Base plate | Available Zinc Coating / Alu-Zinc Coating(g/m2) |
Galvanized Steel coil | Available from 60-275g/m2 Common: 60,80, 100, 120, 160, 180,275 |
Galvalume Steel coil | Available from 30-150g/m2 Common: 30,40,50, 70, 100, 150 |

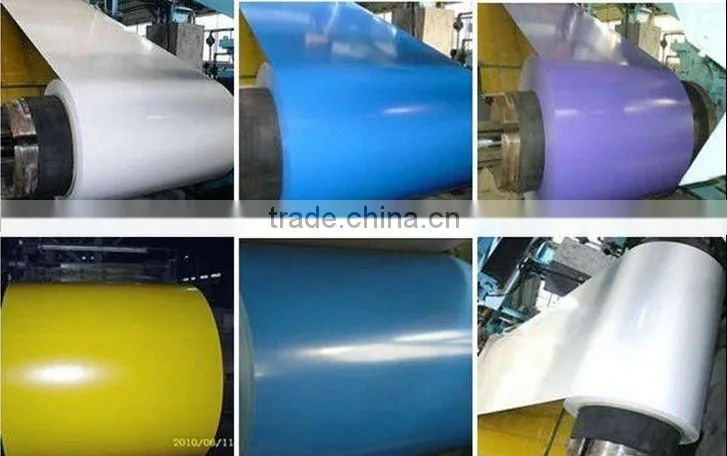

3). Available painting
Color System | Produce according to RAL Color System or as per buyer’s color sample. | ||
Painting Thickness | Top surface: 15~25microns; | ||
Bottom surface: 5~8microns. | |||
Category of Painting | Item | Code | |
Polyester | PE | ||
High-durability polyester | HDP | ||
Silicon modified polyesters | SMP | ||
Polyvinylidene fluoride | PVDF | ||
Painting structure | Top surface | Bottom surface |
|
Primer coating | No coating | 1/0 | |
Primer coating | Primer coating | 1/1 | |
Primer coating + Finish coating | No coating | 2/0 | |
Primer coating + Finish coating | Primer coating or single back coating | 2/1 | |
Primer coating + Finish coating | Primer coating + Finish back coating | 2/2 | |
4). Application
Application | Building exterior application |
Building interior application | |
Furniture | |
Household appliances | |
Steel windows | |
Others |
5). Application in the building industry
Building industry | Outdoor application | Roof, structural balcony, panels, window sills, window frames, gates, garage doors, rolling doors, booths, shutters, watch rooms, makeshift houses, street waiting room (booth), refrigerators, etc. |
Indoor application | Room doors, dividing walls, door frames, light house steel structures, sliding doors, screens, ceilings, toilets, interior elevator lobby, stairwayventilating duct, communication pipelines. |

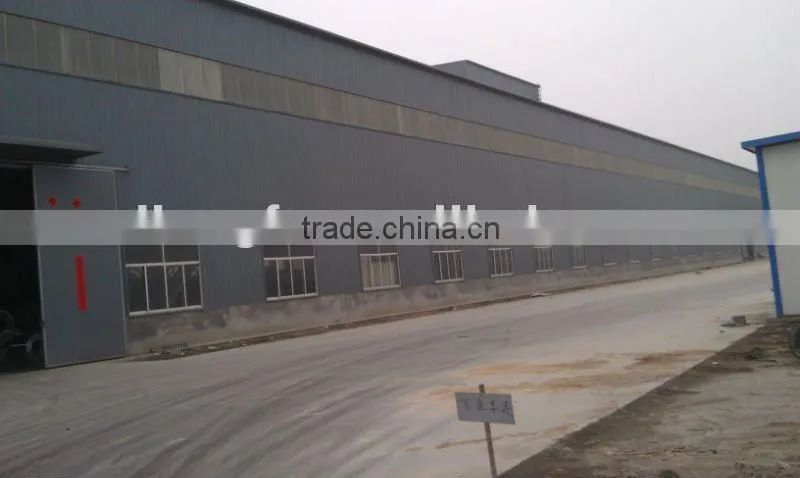

2.OUR COMPANY WORK SHOP MADE OF OR OWN PRODUCTS
3.OUR PRODUCTION LINE

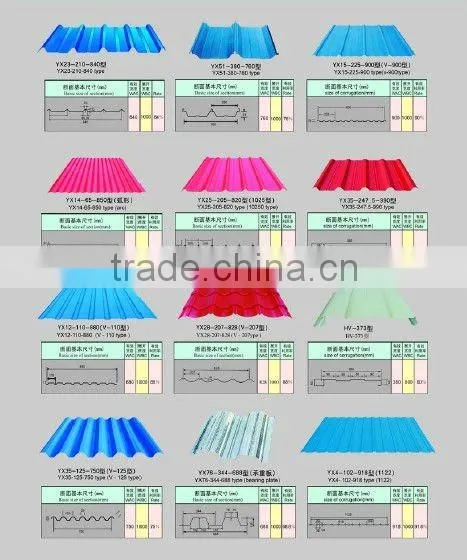

4.OUR PRODUCTS

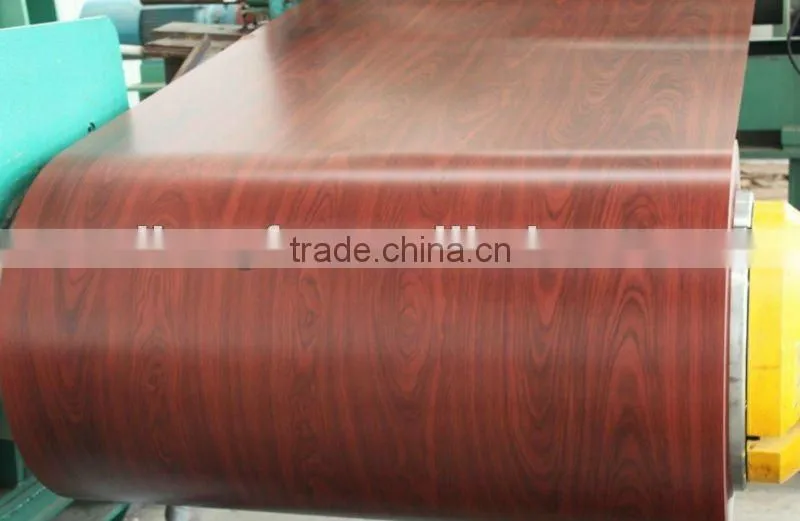

5.OUR CHARACTERISTICS PRODUCTS

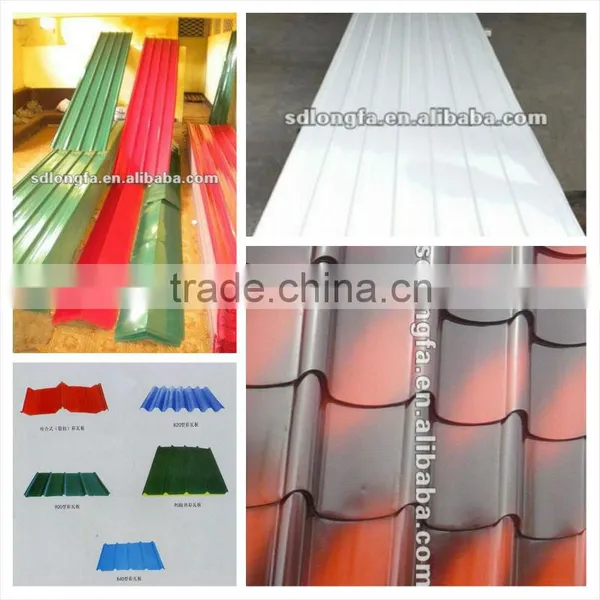

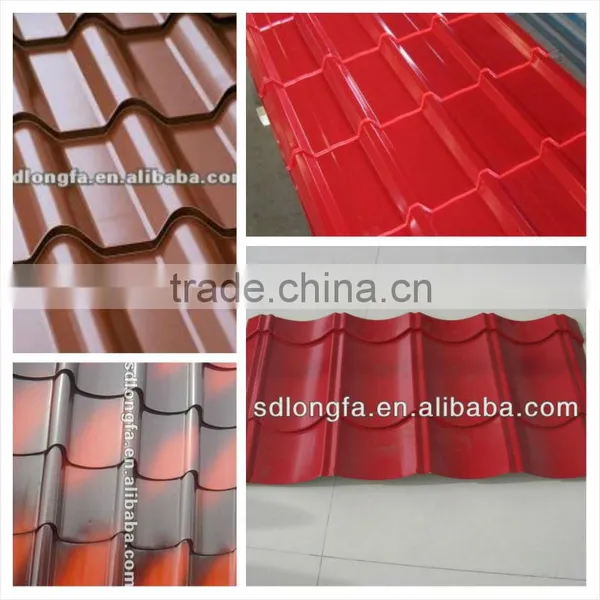

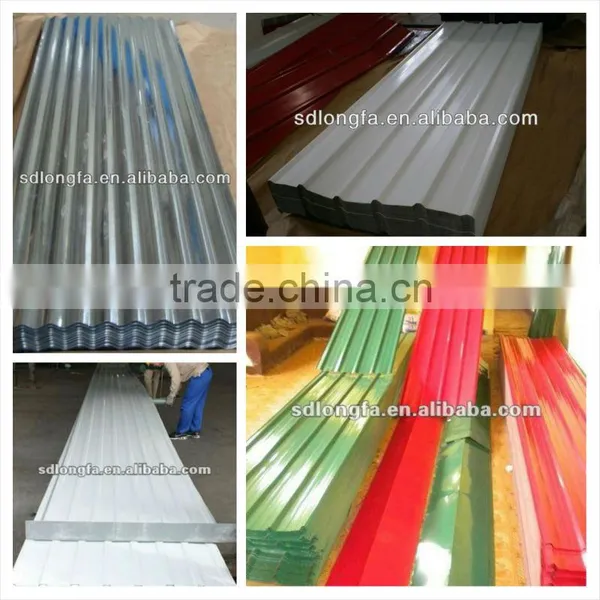

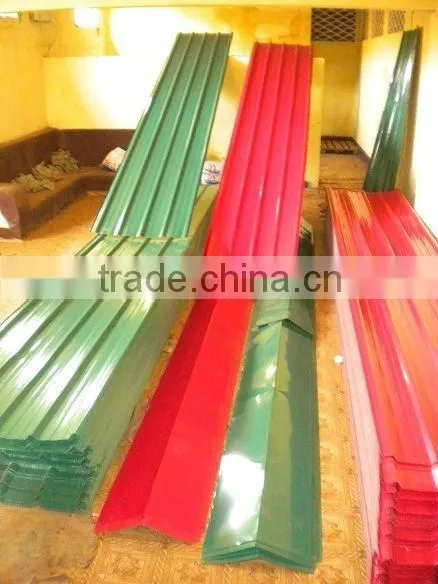

6.OUR ROOFING SHEET AND PACKAGE

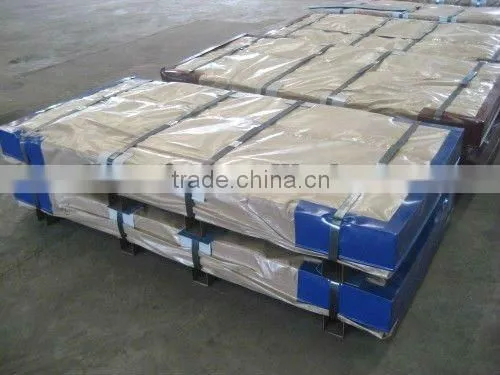

7.THE PACKAGE
8.IF YOU DO HAVE INTEREST IN OUR COMPANY AND OUR PRODUCTS,YOU MAY CONTACT ME,Lucky.
