Hard Rail Vmc-850 Cnc Mini Vertical Machining Center Price

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Vertical

Place of Origin:

Liaoning, China

Dalian R&C Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

DALIAN

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

Place of Origin Liaoning, China

Brand Name R&C

Model Number VM850B

Voltage 380V

Power(W) 5.5-7.5KW

Weight 5800KG

Certification CE ISO BV

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Hard Rail vmc-850 cnc mini vertical machining center price

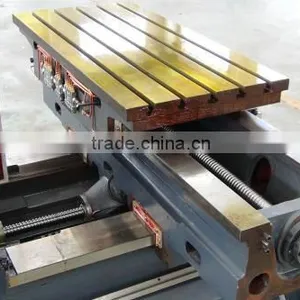

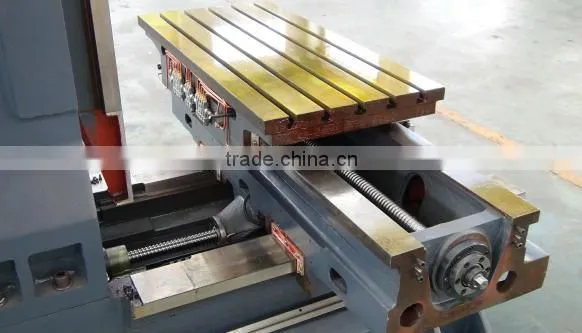

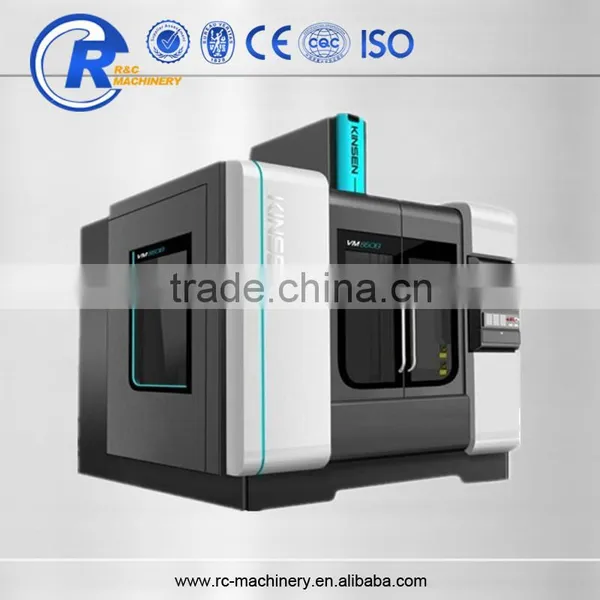

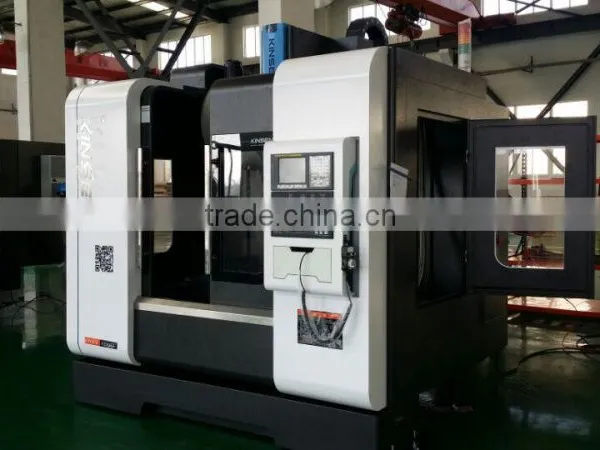

Photos of Machine

Main Parameters

Item		VM850B(Hard Rail)	VM850(Linear Rail)	VM850H(Linear Rail)	Unit
Travel	X axis travel	800	800	800	mm
	Y axis travel	500	500	500	mm
	Z axis travel	550	550	550	mm
	Distance from spindle nose to table surface	105-655	105-655	170-720	mm
Table	Size	500×1050	500×1050	450×900	mm
	T-slots	18×5	18×5	18×5	mm
	Max. loading capacity	800	600	400	kg
Spindle	Spindle taper	BT40	BT40	BT40
	Spindle speed	8000	8000	12000	rpm
	Spindle motor power	5.5/7.5(7.5/11)	5.5/7.5(7.5/11)	7.5	kw
Automatic tool changer	Tool capacity	24	24	24	pieces
	Tool Change type	Vertical	Vertical	Vertical
	Tool holder type	BT40	BT40	BT40
Feed rate	Rapid traverse	24000/24000/18000	36000/36000/30000	48000/48000/48000	mm/min
Feed rate	Cutting Feed rate	1-8000	1-10000	1-15000	mm/min
Motor	Axis motor X/Y/Z	2.3	2.3	2.3	kw
Motor	Coolant pump motor	90	90	90	W
Accuracy	Repeatability	0.005	0.005	0.004	mm
Accuracy	positioning accuracy	0.01	0.01	0.008	mm
Dimension	CNC system	KENYO/GSK/FAGOR/ SIEMENS/FANUC	KENYO/GSK/FAGOR/ SIEMENS/FANUC	KENYO/GSK/FAGOR/ SIEMENS/FANUC
	Coolant tank capacity	100	100	100	L
	Overall dimension	2640×2010×2600	2640×2010×2600	2640×2010×2600	mm
	Machine weight	5800	5800	5000	kg
