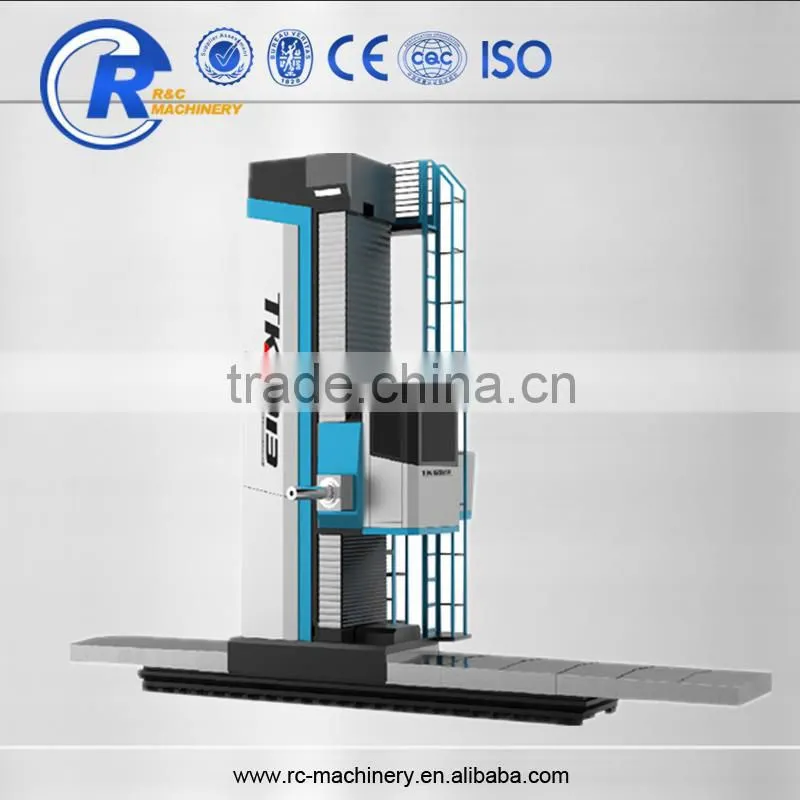

TK6916 Heavy Duty Floor Type CNC Metal Boring and Milling Machine
IMAGES>SPECIFICATION>SHOW ROOM>OTHER VERTICAL LATHES>OTHER MACHINES>PACKING>R&C |
|
| IMAGES>SPECIFICATION>>SHOW ROOM>>OTHER VERTICAL LATHES>>OTHER MACHINES>>PACKING>>R&C |
Specification |
Unit |
TK6913 |
TK6916 |
TK6920 |
TK6926 |
Boring spindle diameter |
mm |
Ø130 |
Ø 160 |
Ø 200 |
Ø 260 |
Spindle taper |
|
ISO50(BT50) |
ISO50(BT50) |
ISO60 |
ISO60 |
Spindle speed |
rpm |
2-1000(Op:2000) |
2-800(Op:2000) |
2-800(Op:2000) |
2-800 |
Size of ram section |
mm |
380´380 |
480´520 |
480´520 |
640´720 |
Total travel of boring spindle and ram |
mm |
1500 |
2400 |
2400 |
3200 |
Travel of boring spindle (W axis) |
mm |
800 |
1200 |
1200 |
1600 |
Axial travel of ram(Z axis) |
mm |
700 |
1200 |
1200 |
1600 |
Vertical travel of boring head (Y axis) |
mm |
2000-4000 |
2000-6000 |
2000-7000 |
3000-9000 |
Longitudinal travel of column(X axis) |
mm |
3000-30000 |
3000-30000 |
3000-30000 |
3000-30000 |
Feedrate of ram(Z axis) |
mm/min |
0.5-4800 |
1-4000 |
1-4000 |
0.5-4800 |
Feedrate of boring spindle (W axis) |
mm/min |
0.5-4800 |
1-4000 |
1-4000 |
0.5-4800 |
Longitude travel speed of column |
mm/min |
1-5600 |
1-6000 |
1-6000 |
1-5600 |
Vertical travel speed of boring head |
mm/min |
1-5600 |
1-6000 |
1-6000 |
1-5600 |
Main travel speed of boring head |
kW |
22/30 |
55 |
75 |
110 |
| IMAGES>>SPECIFICATION>>SHOW ROOM>>OTHER VERTICAL LATHES>>OTHER MACHINES>>PACKING>>R&C |
|
|
|
|
| IMAGES>>SPECIFICATION>>SHOW ROOM>>OTHER VERTICAL LATHES>>TRADE SHOWS>>R&C |
|
|
IMAGES>> SPECIFICATION>> SHOW ROOM>> OTHER VERTICAL LATHES>> OTHER MACHINES> PACKING>> R&C |
|
| IMAGES>> SPECIFICATION>> SHOW ROOM>> OTHER VERTICAL LATHES>> OTHER MACHINES>> PACKING>> R&C |
|
COMPANY PROFILE. |
|
CERTIFICATION. |
|
