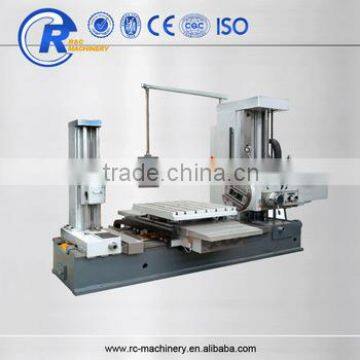

TPX6113 Portable in Line Boring Machine

TPX6113 Portable in Line Boring Machine thumbnail-1
TPX6113 Portable in Line Boring Machine thumbnail-2
TPX6113 Portable in Line Boring Machine photo-1

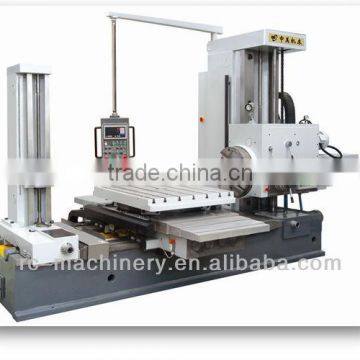

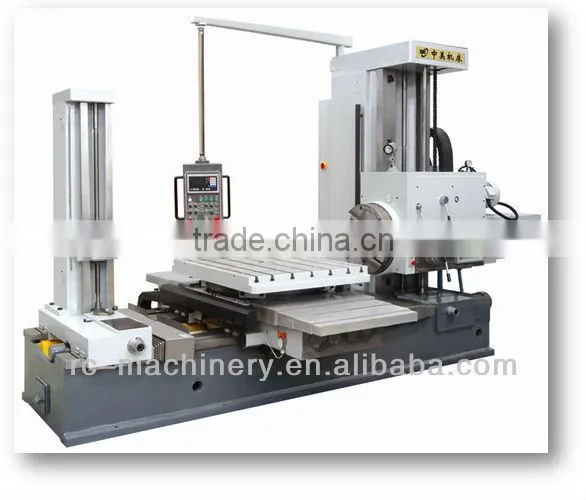

TPX6113 Portable in Line Boring Machine photo-2
US$ 100,000 - 2,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Production Capacity:
40/month
Contact Supplier Request Quote Chat Now
Dalian R&C Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Production Capacity 40/month
Place of Origin Liaoning, China
Brand Name R&C
Model Number TPX6113
Voltage 220V/380V/420V/440V
Power(W) optional
Dimension(L*W*H) 1600*1400(table size)
Weight 40t
Certification ISO CE
After-sales Service Provided Engineers available to service machinery overseas

                    TPX6113 portable in line boring machine

IMAGE >>SPECIFICATION >>DESCRIPTION >>OTHER BORING  MACHINE >>PACKING  >>OUR MAIN PRODUCTS >>R&C >>CONTACT

TPX6113 portable in line boring machine

IMAGE >>SPECIFICATION >>DESCRIPTION >>OTHER BORING  MACHINE >>

PACKING  >>OUR MAIN PRODUCTS >>R&C >>CONTACT



Specifications

Unit

TPX6111

TPX6111A

TPX6113

TPX6113A

TPX6113A/2

Spindle diameter

mm

110

110

130

130

130

Spindle Taper

Morse No.6

Morse No.6

Metric 80

Metric 80

Metric 80

(7:24 No50)

(7:24 No50)

(7:24 No50)

(7:24 No50)

(7:24 No50)

Speed range of spindle

r/min

8-1000

8-1000

4-800

4-800

4-800

Power of main motor

kw

7.5

7.5

15

15

15

Facing head diameter

mm

600

600

750

750

750

Table size(L*W)

mm

1140*1000

1140*1000

1600*1400

1600*1400

1800*1600

Max. load of table

kg

2500

2500

8000

8000

8000

X-axis travel

mm

1000

1350

1600

2000

2000

Y-axis travel

mm

1000

1000

1500

1800

2000

Z-axis travel

mm

1000

1000

1500

1500

1500

W-axis travel

mm

600

600

900

900

9000

U-axis travel(Slide of facing head travel)

mm

180

180

250

250

250

B-axis angulationgs

degree

360

360

360

360

360

Rapid travel(X/Y/Z)

mm/min

2500

2500

2500

2500

2500

B-axis measurement system reading precision

degree

0.001

0.001

0.001

0.001

0.001

IMAGE >>SPECIFICATION >>DESCRIPTION >>OTHER BORING  MACHINE >>

PACKING  >>OUR MAIN PRODUCTS >>R&C >>CONTACT

Main transmission:
The main transmission of this boring and milling head adopts the square ram portable structure level and is one of the core parts of this machine. 2 the transmission system

The transmission structure:

X axis traverse by eliminating gaps for the double pinion and rack structure of the whole feed structure in a slide in the body and therefore good rigidity and transmission can be eliminate the clearance adjusting

Spindle box vertical feed (Y) with ball screw pair drive screw fixation in the first column on the feed motor through slow down gear drives the rotating spindle box to get the vertical feed

Z axis W axis driving principle of the ball screw vice same as Y-axis

Hydraulic and lubrication system:

Columns (X axis) mobile adopts hydrostatic slide friction coefficient is small

X Y Z axis of the guide surface are stick to plastic processing machine tool guide rail protection

Key components of the hydraulic system pump hydraulic valve parts were picked from domestic famous manufacturers of products with reliable work stability

Pillar square ram guide are adopted the measures to prevent oil spills

Precision compensation system:

TK69 CNC floor-type boring and milling machine series adopts automatic gravity compensation system to ensure the balance of spindle box body and prevent slippery pillow moved forward when the main spindle box focus changes and make the spindle head

 Protective device:

The machine adopts the overall protective set spindle box adopts processing center type integral protection

Square ram with fixed protective cover at the back of the pillar bed way scalability protective cover can prevent contamination of guide rail damage and pollution

TPX6113 portable in line boring machine


IMAGE >>SPECIFICATION >>DESCRIPTION >>OTHER BORING  MACHINE >>

PACKING  >>OUR MAIN PRODUCTS >>R&C >>CONTACT

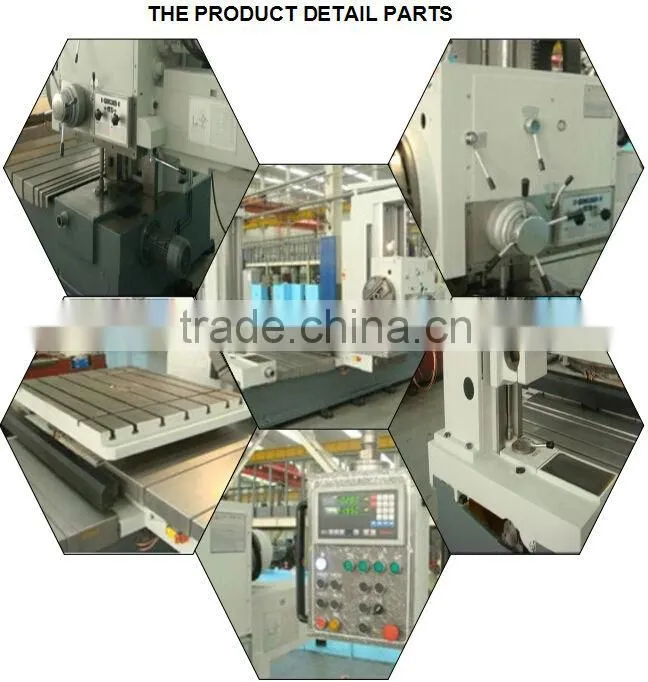

TPX6113 portable in line boring machine

IMAGE>>SPECIFICATION>>DESCRIPTION>>OTHER BORING  MACHINE >>

PACKING>>OUR MAIN PRODUCTS >>R&C >>CONTACT

TPX6113 portable in line boring machine

TPX6113 portable in line boring machine

TPX6113 portable in line boring machine

TPX6113 portable in line boring machine

TPX6113 portable in line boring machine

IMAGE>>SPECIFICATION>>DESCRIPTION>>OTHER BORING  MACHINE>>

PACKING >>OUR MAIN PRODUCTS >>R&C >>CONTACT

TPX6113 portable in line boring machine

IMAGE >>SPECIFICATION >>DESCRIPTION >>OTHER BORING  MACHINE >>

PACKING  >>OUR MAIN PRODUCTS >>R&C >>CONTACT

 TPX6113 portable in line boring machine
