Dalian R&C Machinery Co., Ltd.: Dalian, Liaoning, China; Main products: CNC Lathe, Machine Center, CNC Milling Machine, Industrial Robot, Machine Equipment CNC Lathe, Vertical Lathe, Boring and Milling Machine, Pipe threading lathe

Home > Products > Milling Machine > KX3018 Used CNC Milling Machine Price

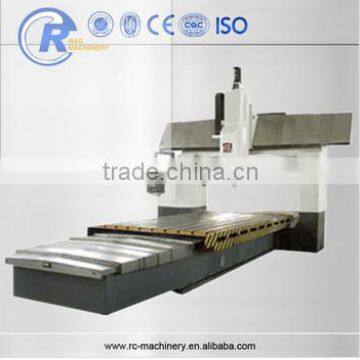

KX3018 Used CNC Milling Machine Price

FOB Price

USD $50,000 - $68,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vertical
CNC or Not	CNC	Automatic Grade	Automatic
Place of Origin	Liaoning, China	Brand Name	R&C
Model Number	kx-3018	Voltage	380V
Power(W)	22/26kw	Dimension(LWH)	3000*3000810000
Weight	30500kg	Certification	ISO9001 & CE
After-sales Service Provided	Engineers available to service machinery overseas

KX3018 Used CNC Milling Machine Price

IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES >> PACKING >> R&C

IMAGE > SPECIFICATION>MAIN PARTS > OTHER 5AXIS>PACKING>OTHER MACHINES> PACKING > R&C

ITEM		UNIT	PARAMETER
Travel	X travel	mm	3000
	Y travel	mm	1800
	Z travel	mm	850
	Distance from spindle nose to workbench	mm	318-1168
	Distance from spindle to post	mm	384
	Distance from two columns	mm	2400
Worktable	Table size	mm	3000×1600
	T groove(size×quantity×distance)	mm	28×9×200
	Max. load	kg	10000
Spindle	Spindle taper		#50
	Standard spindle type	rpm	Gear type BT50-6000
	Spindle power(continuation/30 min overload)	Kw	Wide area22/26
	Spindle torque(continuation/overload)	N·m	560/662
Feed	Cutting speed	mm/min	1-8000
Feed	Rapid travel	m/min	X/Y:16 Z:10
Accuracy	Position accuracy(total excursion)	mm	X:0.028 Y:0.023 Z:0.018
Accuracy	Reposition accuracy(total excursion)	mm	X:0.011 Y:0.009 Z:0.007
Ohters	Required air pressure	kgf/cm2	6.5
	Power supply capacity	KVA	50
	Weight of machine	kg	46000
	Floor area(length*width)	mm	9000×6000
	Height of machine	mm	30500
Tool type (optional)	Tool type		disc/chain
	Tool library specification		BT50
	Tool change time(tool presetting)	Sec.	3.5/5.5
	Tool station		24/30/40
	Max. size of tool(adjacent cutter diameter/length)	mm	Φ105/300
	Max.weight of cutting tools	Kg	15/20

IMAGE >> SPECIFICATION >> MAIN PARTS>> OTHER 5AXIS>> OTHER MACHINES >> PACKING >> R&C

IMAGE >> SPECIFICATION >> STALLATION >> OTHER ROBOTS >> OTHER MACHINES >> PACKING>> R&C

IMAGE >> SPECIFICATION >> STALLATION >> OTHER ROBOTS >> OTHER MACHINES >> PACKING >> R&C

Other Products

IMAGE >> SPECIFICATION >> STALLATION >> OTHER ROBOTS >> OTHER MACHINES>> PACKING >> R&C

KINDLY CONTACT ME IF YOU NEED ANY INFORMATION.
