XK50 Series CNC Vertical Knee-type Milling Machine

XK50 Series CNC Vertical Knee-type Milling Machine photo-1

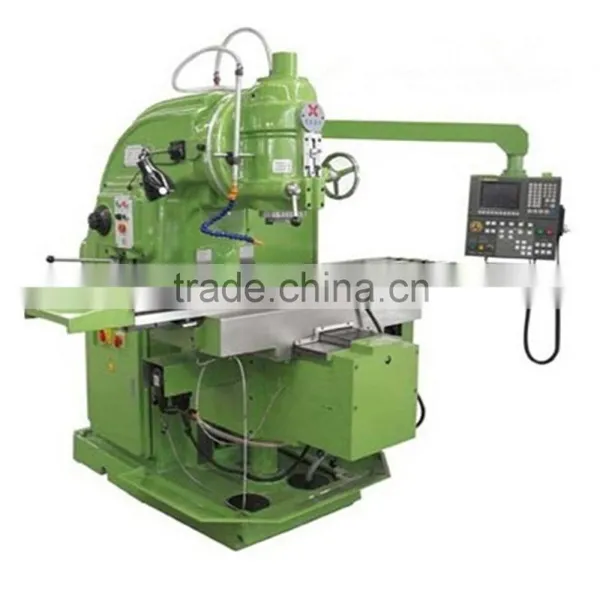

XK50 Series CNC Vertical Knee-type Milling Machine photo-2

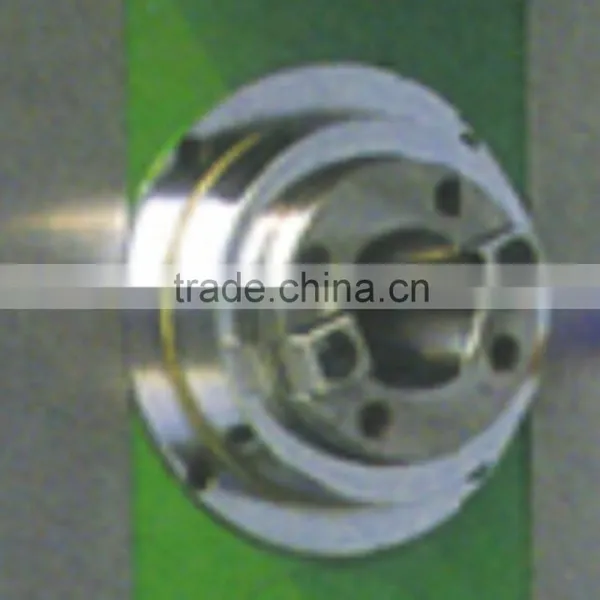

XK50 Series CNC Vertical Knee-type Milling Machine photo-3

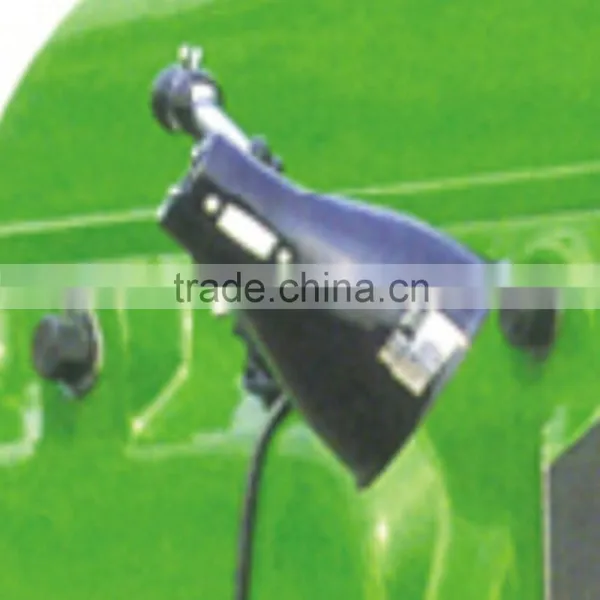

XK50 Series CNC Vertical Knee-type Milling Machine photo-4

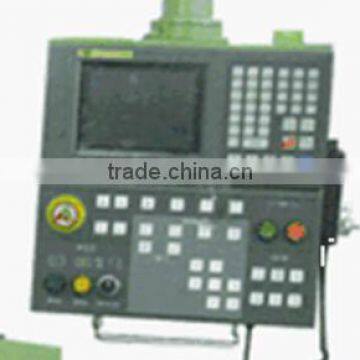

XK50 Series CNC Vertical Knee-type Milling Machine photo-5

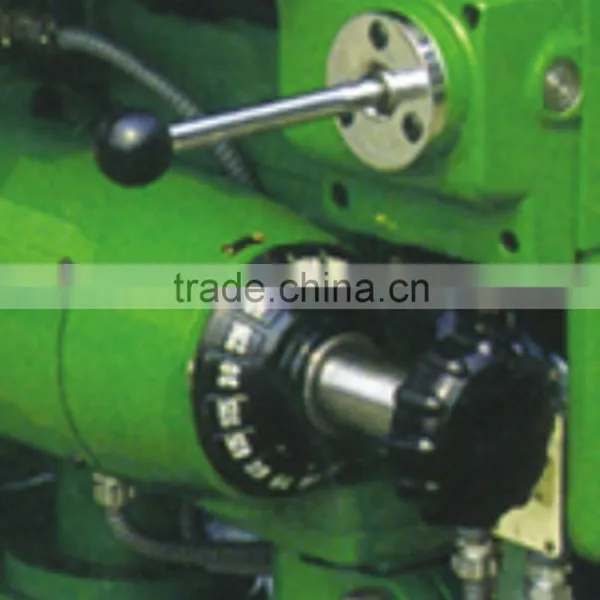

XK50 Series CNC Vertical Knee-type Milling Machine photo-6
US$ 30,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Liaoning, China
Brand Name:
R&C
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Liaoning, China
Brand Name R&C
Model Number XK5032
Type Vertical
CNC or Not CNC
Voltage 380V
Power(W) 7.5KW
Dimension(L*W*H) 2294X2050X1904 mm
Weight 3200 kg
Certification ISO9001,CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

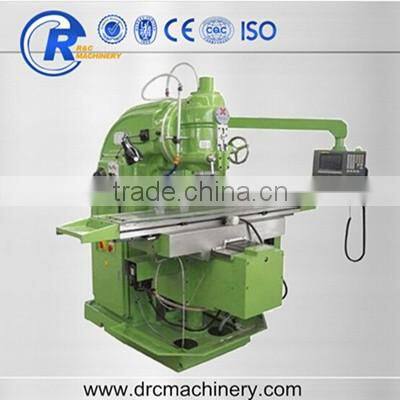

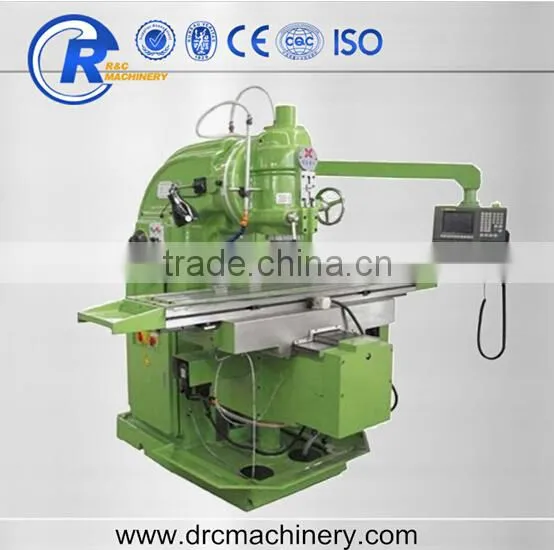

XK5032 CNC Vertical Knee-type Milling Machine


These machines are widely suited for flat surfaces. CNC vertical Knee-Type/Universal Milling Machine.With perfect lubricating system Variable speed range High speed cutting.

Characteristic

1.Good performance IS09001

2.Easy operate/ low noise / variable speed

3.High rigidity and stability casting body

Detailed Parameters
Specification
Unit
XK5032
XK5040
Table size
mm
1600X320
1700X400
T slots(N/W/D)
mm
3/18/70
3/18/90
Longitudinal travel
mm
900
1100
Cross travel
mm
310
350
Vertical travel
mm
350
385
Table longitudinal feed(auto)
-
Step-less(in finite)
Table cross feed(auto)
-
Step-less(in finite)
Table vertical feed(auto)
-
Step-less(in finite)
Distance between spindle and table surface
mm
35-385
80-465
Spindle hole taper
-
ISO 50(7:24)
Spindle speed step
series
18
Spindle speed range
r/min
30-1500
Max.swivel angle of spindle
-
±45°
Stroke of spindle quill
mm
70
85
Power of spindle motor
kw
7.5
11
Torque of X/Y/Z axis AC servo motor
N.m
10/10/23
15/15/23
Overall size
mm
2294X2050X1904
2556X2159X2298
Net weight
kg
3200
4200
Fair Show
Packing & Delivery

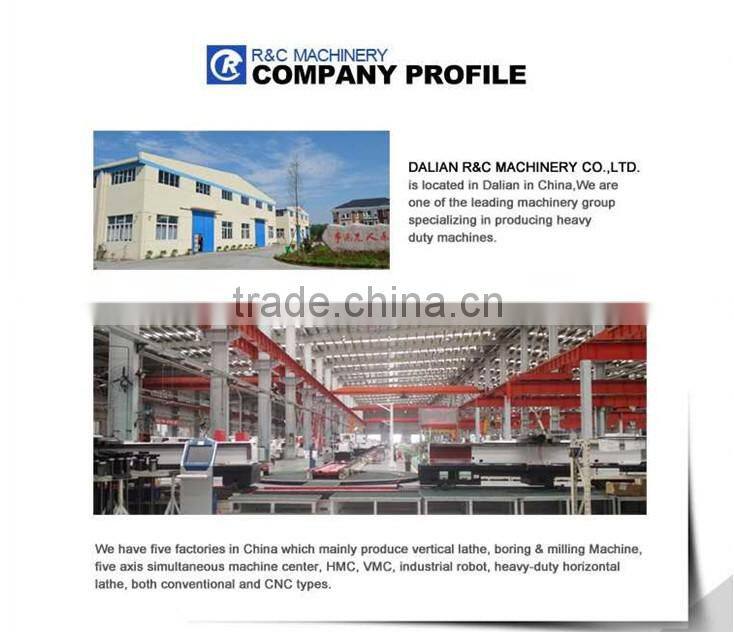

Company Profile
