RC-6060C High Precision CNC Graphite Engraving Machine

FOB Price

USD $20,000 - $40,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Dalian
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Liaoning, China
Brand Name	R&C	Model Number	RC-6060C
Type	Vertical	CNC or Not	CNC
Voltage	380V/50Hz	Power(W)	12kw
Dimension(LWH)	185018502000	Weight	3000kg
Certification	CE	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

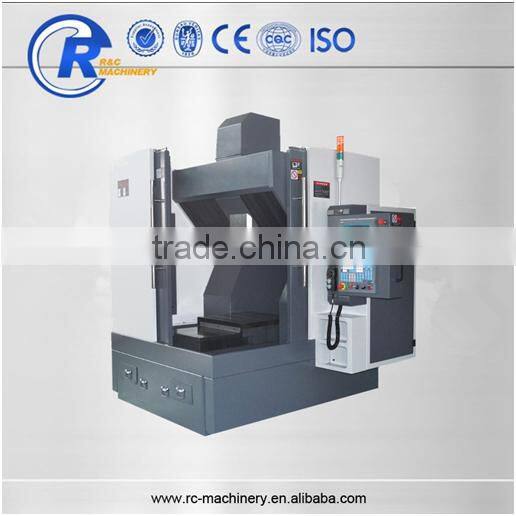

RC-6060C High Precision CNC Graphite Engraving Machine

Product Description

Structural features:

* It’s assured that the quality and working accuracy are quite high with integral cast of machine, aging treatment of quenching and firmness of the whole machine.

* X/Y/Z axis adopt imported rectangular linear of high accuracy. The load and bearing capacity of machine is super strong, and the accuracy of fast displacement and orientation is quite high.

Specifications:

Specification
Item	Standard Values	Unit
X/Y/Z travel	600600300	mm
Table size	600*600	mm
Table flatness tolerance	±0.02	mm
Spindle deviation	<0.005	mm
X/Y/Z control resolution	0.0015625	mm
X/Y/Z motion positioning accuracy	±0.01/300	mm
X/Y/Z repeatability	±0.00625	mm
X/Y/Z operating sensitivity	<0.005	mm
Z axis spatial height	450	mm
Machine weight	3000	kg
Max.carving power consumption	12	kw
Max.caving speed	6000	mm/min
Papid traverse	10000	mm/min
X/Z perpendicularity	0.01/300	mm
Spindle speed	6000-18000	r-min
Power of main motor	5.5	kw
Drive system	AC servo
Working voltage	380V/50Hz
Overall dimension	185018502000	mm

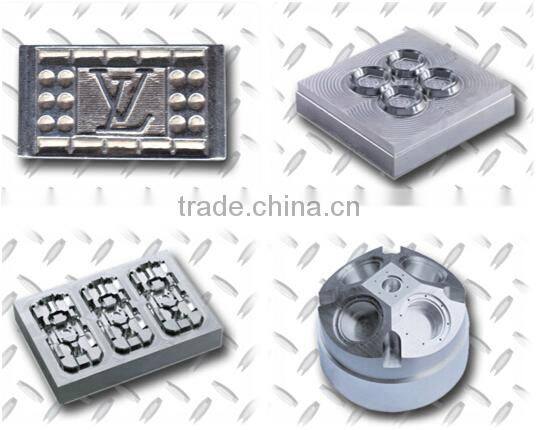

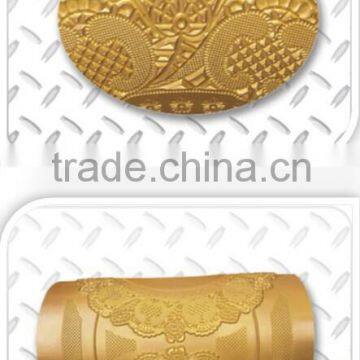

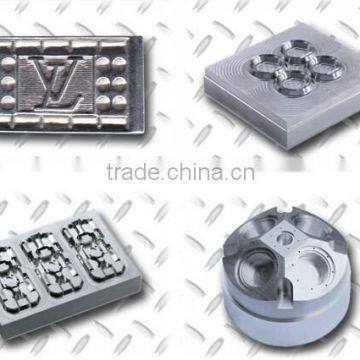

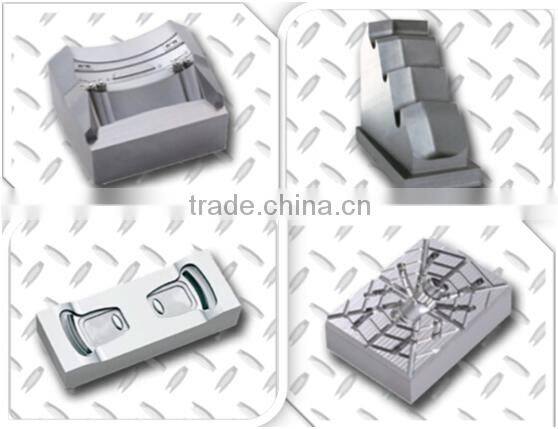

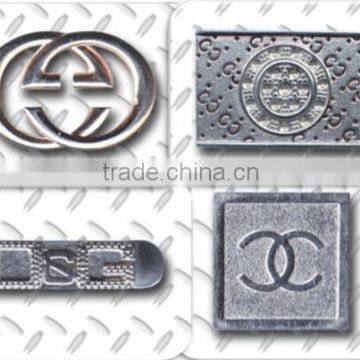

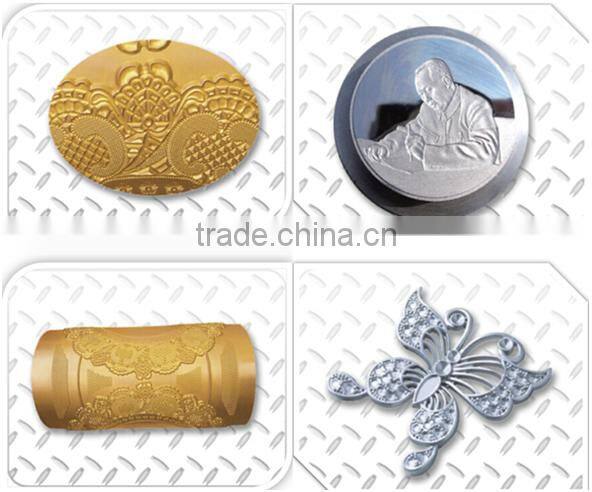

Finished Products

Factory Show

Exhibition

Our Customer

Company Promise
