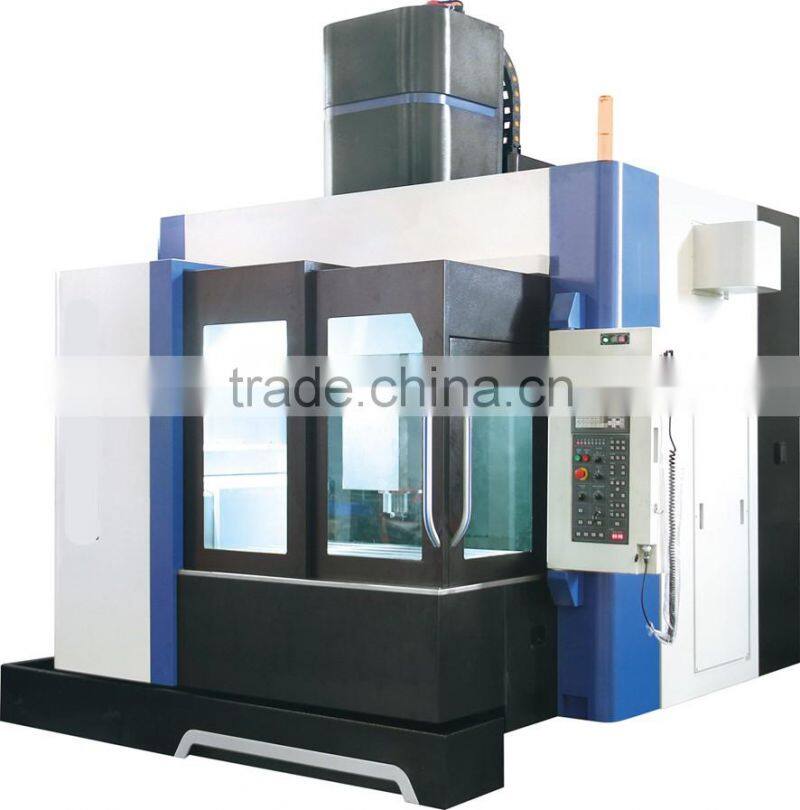

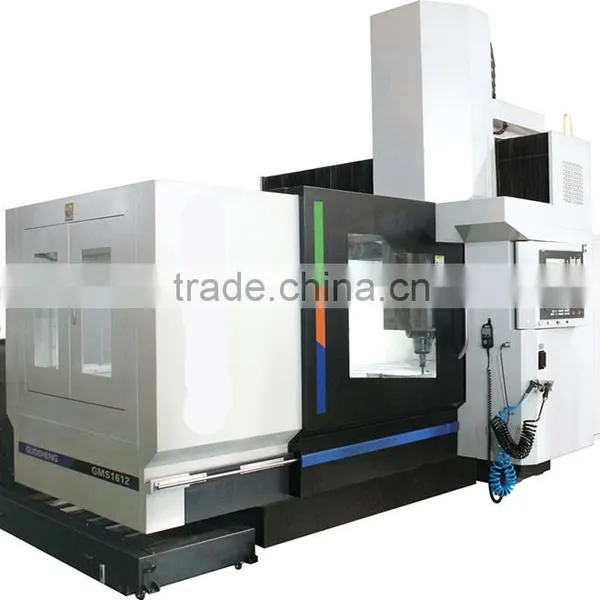

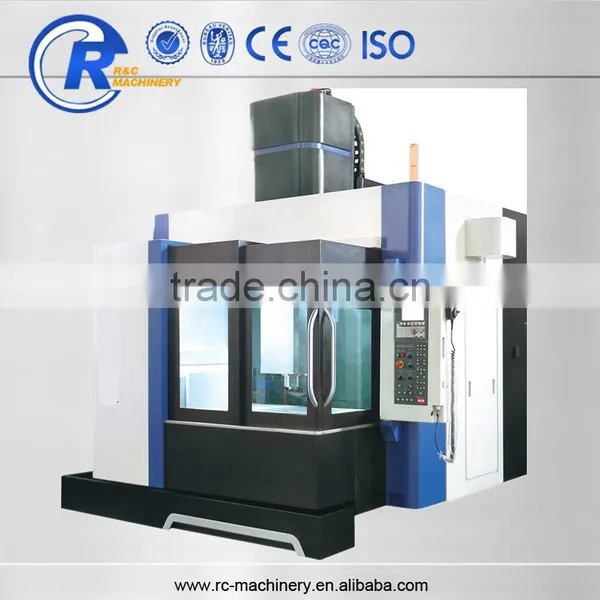

GME 1610 Customized High speed CNC Mini Aluminum Machining Center
|
Processing Equipment
|
| Machine Type | Unit | GME 1010 | GME 1310 | GME 1610 |
| Gantry width | mm | 1100 | 1100 | 1100 |
| Worktable (length*width) | mm | 1000 * 900 | 1300*900 | 1600*900 |
| Worktable (length*width) | kg | 1200 | 1500 | 3000 |
| X axis travel | mm | 1000 | 1300 | 1600 |
| Y axis travel | mm | 1000 | 1000 | 1000 |
| Z axis travel | mm | 550 | 550 | 550 |
| Distance from spindle nose to table surface | 100-650 | 100-650 | 100-650 | |
| Standard tool quantity | rpm | BT40/150 | BT40/150 | BT40/150 |
| Spindle speed | 12000 | 12000 | 12000 | |
| Spindle specifications | mm | BT40 | BT40 | BT40 |
| T-slot | mm/min | 5-18*180 | 5-18*180 | 5-18*180 |
| Rapid traverse speed | mm/min | 30000/30000/2000 | 30000/30000/2000 | 30000/30000/2000 |
| Cutting feedrate | 10-20000 | 10-20000 | 10-20000 | |
| Control system | FANUC Oi MD | FANUC Oi MD | FANUC Oi MD | |
| X/Y/Z-axis guide specifications | mm | 2-45(2")4,2-45(Y)5(Z) | 2-45(2×-)4,52(Z-)45(Y) | 2-45(2×-)4,52(Z-)45(Y) |
| Machine weight | kg | 7500 | 8500 | 9500 |
Structure Feature
1.Through the mechanical design and finite element,we design cotton combined with modern design method, and combined with the machine hot the original management techniques and into the machine engineering design technology, so the high fall, high rigidity, Gao Kejun, excellent thermal stability and other characteristics. The GMS how bed is more suitable for mould manufacturing.
2.The thermal stability of the junction of design technology, the machine heat source management perfect combination of technology and thermal compensation technology, to further improve the accuracy of machine tool stability.
3.The perfect combination of motor and screw. I the biggest motor power utilization.
4.Increase the machine tool spindle, tool storage, lubrication, can model about crumbs device, hydraulic station section, so the electricity plate fell by 30%.
|
