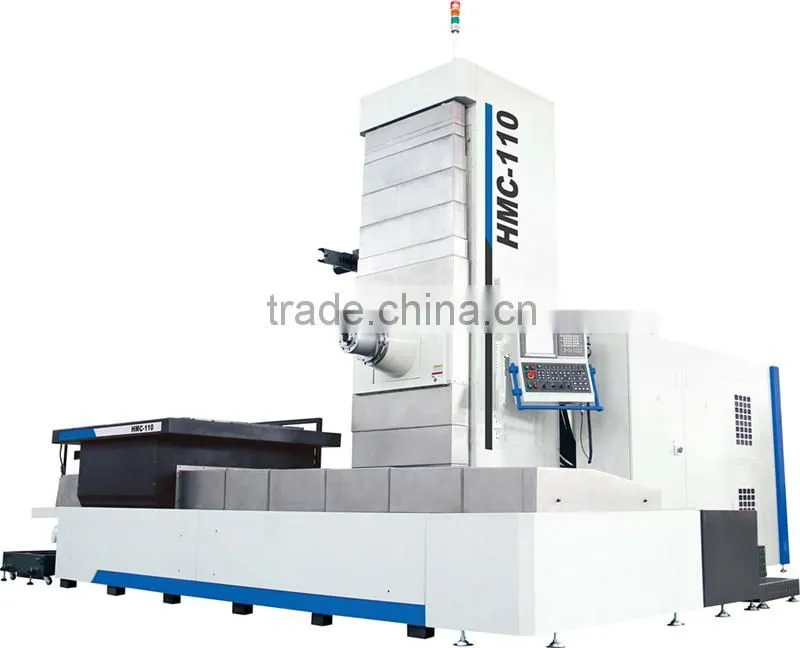

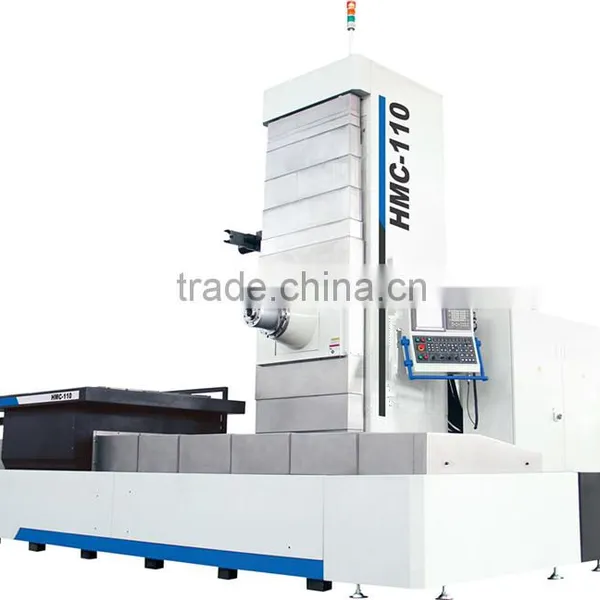

HMC-80 Aluminum curtain wall milling drilling tapping CNC profile machine center
|
|
|
Processing Equipment
|
| Machine Type | Unit | HMC-50 | HMC-63 | HMC-80 | HMC-110 | ||
| Worktable | |||||||
| Worktable(length×width) | mm | 500*500 | 630*630 | 800*800 | 1100*100 | ||
| Load of table(average load) | kg | 600 | 1200 | 3000 | 5000 | ||
| Reference aperture | mm | 50H7 | 50H7 | 50H7 | 50H7 | ||
| Division precision | Sec | ±5 | ±5 | ±5 | ±5 | ||
| Repetitive precision | Sec | ±2 | ±2 | ±2 | ±2 | ||
| Processing range | |||||||
| Maximum travel of X/Y/Z axes | mm | 700/650/600 | 1000/850/900 | 1300/1000/1000 | 2500/1200/1300 | ||
| Rotary worktable (B axis) | 1°*360 | 1°*360 | 1°*360 | 1°*360 | |||
| Distance from spindle nose to table surface | mm | 200-800 | 200-1100 | 200-1200 | 350-1700 | ||
| Distance from spindle center to table surface | mm | 50-700 | 100-950 | 100-1100 | 150-1500 | ||
| Spindle system | |||||||
| A tapered hole (7:24) | BT50 | BT50 | BT50 | BT50 | |||
| Spindle speed | r/min | 6000 | 6000 | 6000 | 6000 | ||
| Motor power of spindle | KW | FANUC 11/15 | FANUC 15/18.5 | FANUC15/18.5 | FANUC22/26 | ||
| Transmission form (standard) | Belt type | Belt type | Belt type | Belt type | |||
| Transmission form (optional 1) | |||||||
| Transmission form (optional 2) | ZF | ZF | ZF | ZF | |||
| Feed system | |||||||
| Transmission mode of X/Y/Z axes | |||||||
| Range of cutting feed speed | m/min | 10 | 10 | 10 | 7 | ||
| Rapid shift of X/Y/Z axes | m/min | 24 | 24 | 24 | 12 | ||
| Tools system | |||||||
| Tools capacity | 24 | 24 | 24 | 24 | |||
| Tool selection manner | random | Random | Random | Random | |||
| Maximum weight of tools | Kg | 15 | 15 | 15 | 15 | ||
| Maximum length of tools | mm | 350 | 350 | 350 | 350 | ||
| Tool exchanging manner | Tool arm type | Tool arm type | Tool arm type | Tool arm type | |||
| Precision | |||||||
| Positioning accuracy | mm | 0.01 | 0.01 | 0.012 | 0.012 | ||
| Accuracy of repeated positioning | mm | 0.006 | 0.006 | 0.008 | 0.008 | ||
| Requirements for air compressing | Kgf/cmm | 6 | 6 | 6 | 6 | ||
| Integrated weight(kg) | Kg | 11000 | 13000 | 18000 | 22000 | ||
| Machine Type | Unit | HMC-50 | HMC-63 | HMC-80 | HMC-110 | ||
| Worktable | |||||||
| Worktable(length×width) | mm | 500*500 | 630*630 | 800*800 | 1100*100 | ||
| Load of table(average load) | kg | 600 | 1200 | 3000 | 5000 | ||
| Reference aperture | mm | 50H7 | 50H7 | 50H7 | 50H7 | ||
| Division precision | Sec | ±5 | ±5 | ±5 | ±5 | ||
| Repetitive precision | Sec | ±2 | ±2 | ±2 | ±2 | ||
| Processing range | |||||||
| Maximum travel of X/Y/Z axes | mm | 700/650/600 | 1000/850/900 | 1300/1000/1000 | 2500/1200/1300 | ||
| Rotary worktable (B axis) | 1°*360 | 1°*360 | 1°*360 | 1°*360 | |||
| Distance from spindle nose to table surface | mm | 200-800 | 200-1100 | 200-1200 | 350-1700 | ||
| Distance from spindle center to table surface | mm | 50-700 | 100-950 | 100-1100 | 150-1500 | ||
| Spindle system | |||||||
| A tapered hole (7:24) | BT50 | BT50 | BT50 | BT50 | |||
| Spindle speed | r/min | 6000 | 6000 | 6000 | 6000 | ||
| Motor power of spindle | KW | FANUC 11/15 | FANUC 15/18.5 | FANUC15/18.5 | FANUC22/26 | ||
| Transmission form (standard) | Belt type | Belt type | Belt type | Belt type | |||
| Transmission form (optional 1) | |||||||
| Transmission form (optional 2) | ZF | ZF | ZF | ZF | |||
| Feed system | |||||||
| Transmission mode of X/Y/Z axes | |||||||
| Range of cutting feed speed | m/min | 10 | 10 | 10 | 7 | ||
| Rapid shift of X/Y/Z axes | m/min | 24 | 24 | 24 | 12 | ||
| Tools system | |||||||
| Tools capacity | 24 | 24 | 24 | 24 | |||
| Tool selection manner | random | Random | Random | Random | |||
| Maximum weight of tools | Kg | 15 | 15 | 15 | 15 | ||
| Maximum length of tools | mm | 350 | 350 | 350 | 350 | ||
| Tool exchanging manner | Tool arm type | Tool arm type | Tool arm type | Tool arm type | |||
| Precision | |||||||
| Positioning accuracy | mm | 0.01 | 0.01 | 0.012 | 0.012 | ||
| Accuracy of repeated positioning | mm | 0.006 | 0.006 | 0.008 | 0.008 | ||
| Requirements for air compressing | Kgf/ | 6 | 6 | 6 | 6 | ||
| Integrated weight(kg) | Kg | 11000 | 13000 | 18000 | 22000 | ||

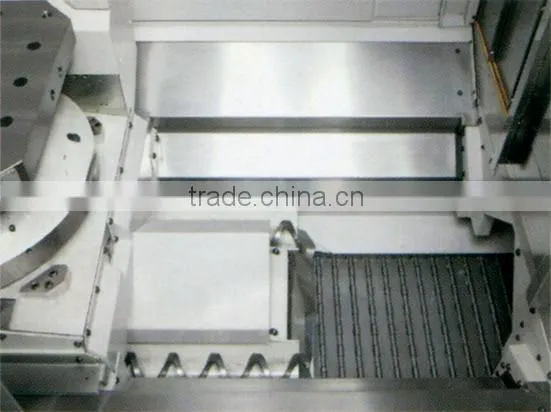

Horizontal Machining Center
Horizontal machining center can automatically exchange tool in the machining process, can one time clamping four surface milling, drilling, reaming, boring, tapping, and other process. The structure of the machine tool rigidity, large stroke, high precision, applicable to all kinds of heavy cutting, high precision mechanical processing field, guarantee the processing requirements of high efficiency and high precision of the single or small batch products.
Optional configuration
Automatic tool touch probe
Because it can automatically detect the tool wear, damage degree and the offset value, can improve the operation convenience.
cision, applicable to all kinds of heavy cutting, high precision mechanical processing field, guarantee the processing requirements of high efficiency and high precision of the single or small batch products.
Tool magazine
Automatic tool changer is composed of tool magazine and tool changing arms. Automatic tool changer is installed separately from machine tool with the purpose of preventing adverse influences of vibration during running of automatic tool changer and other reasons on precision. Tool selection adopts the method of fixed address in the shortest path. All tools return to original position, therefore, the problem of collision between large-size tools is only considered in initial installation. Two-way tool magazine adopts the shortest path.
|
|
