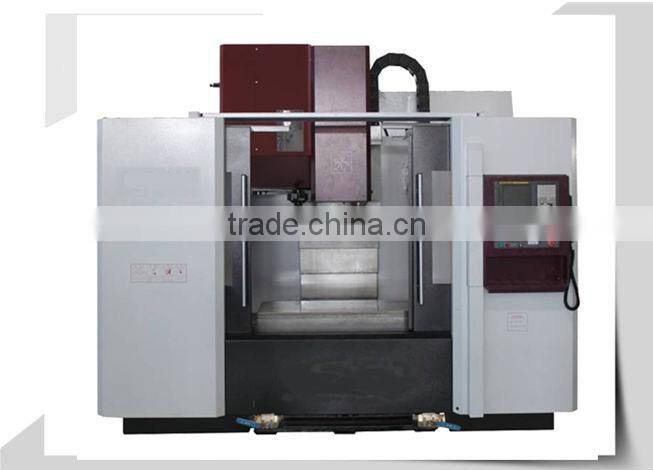

VDF850 China Cheap CNC Vertical Center Machine

Item

VDF850

VDF1000

VDF1200

VDF1500

VDF1800

Table(L×W)(mm)

1000×500

1120×560

1220×620

1700×800

2000×800

T-slot(Numbers × Width × Distance) (b/t slots)

5×18×100

5×18×100

5×18×100

6×18×125

6×18×125

Table load Max(kg)

500

750

1200

2500

2500

The distance from spindle center line to column guide way surface(mm)

550

629

660

850

850

The distance from spindle nose end face to table upper surface(mm)

150660

135~735

90~765

200~962

180~942

X/Y/Z travel(mm)

850/510/510

1020/560/600

1200/600/675

1530/800/762

1850/800/762

X/Y/Z guide way type

box way

box way

box way
Y-axis 4 rails

box way
Y-axis 4 rails

box way
Y-axis 4 rails

X/Y/Z rapid traverse speed(m/min)

20/20/18

24/24/18

20/20/18

15/15/12

15/15/12

Feedrate (mm/min)

17600

1~10000

1~10000

1~6000

1~6000

Positioning accuracy

X0.025  YZ0.020

X0.025  YZ0.020

X0.030  YZ0.020

 X0.030  YZ0.020

X0.030  YZ0.020

Repeat positioning accuracy

  X0.010  YZ0.008

X0.010  YZ0.008

X0.013  YZ0.008

X0.013  YZ0.008

X0.013  YZ0.008

X/Y/Z servo motor power(Nm)

12/12/12

12/12/12

22/22/22

22/22/22

22/22/22

Spindle motor power(kW)

7.5/11

7.5/11

11/15

11/15 wide range

motor

11/15 wide range

motor

Spindle speed range(r/min)

60~8000

60~8000

45~6000

45~6000

45~6000

Spindle taper

#40(7/24)

#40(7/24)

#50(7/24)

#50(7/24)

#50(7/24)

Tool magazine capacity/Type

20/drum
24/swing arm

20/drum
24/swing arm

24/swing arm

24/swing arm

24/swing arm

Tool adaptor type

BT40

BT50

BT50

BT50

Max. Tool weight(kg)

7

7

15

15

15

Max. Tool diameter/length(mm)

77/305

77/305
swing arm

127/305
swing arm

110/350swingarm

110/350swingarm

Time of tool change(T-T)(sec)

6~8/3

6~8/3

3.5

3.5

3.5

Air pressure requirement (mPa)

0.5

0.6

0.6

0.6

0.6

Power requirement (kW)

25

25

35

40

40

Overall dimension(L×W×H)

3350×2280×2650

2820×2820×2477

2880×2815×2791

4300×3480×3120

5160×3480×3120

Net weight (kg)

7000

8000

8500
