Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > VDF850 Low Price Vertical Machine Center

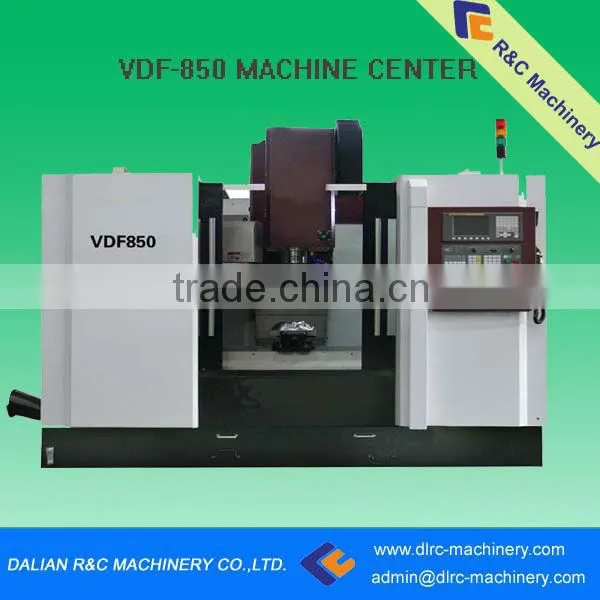

VDF850 Low Price Vertical Machine Center

US$ 20,000 - 100,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Vertical

Place of Origin:

Liaoning, China

Contact Supplier Request Quote Chat Now

Dalian R&C Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vertical

Place of Origin Liaoning, China

Brand Name R&C

Model Number VDF850

Voltage 380V

Power(W) 7.5/11KW(FANUC-0i-mate-MD)

Dimension(L*W*H) 3116*2260*2460mm

Weight 5200kg

Certification ISO9001,CE

Warranty 1 year, 1 year

After-sales Service Provided Engineers available to service machinery overseas

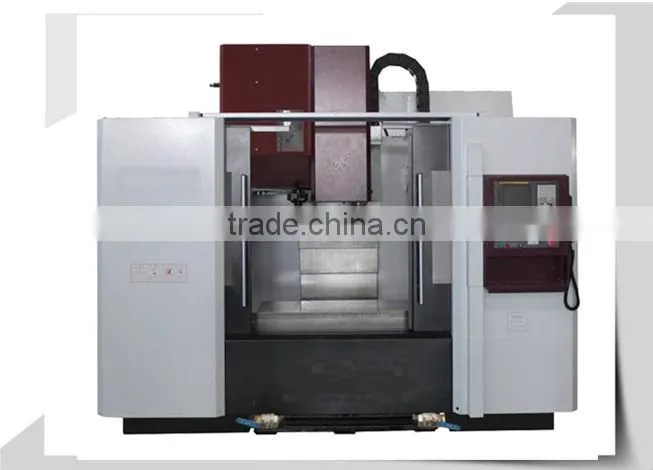

VDF850 Low price Vertical Machine Center

IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER MACHINES >> PACKING >> R&C

Item	VDF850	VDF1000	VDF1200	VDF1500	VDF1800
Table(L×W)(mm)	1000×500	1120×560	1220×620	1700×800	2000×800
T-slot(Numbers × Width × Distance) (b/t slots)	5×18×100	5×18×100	5×18×100	6×18×125	6×18×125
Table load Max(kg)	500	750	1200	2500	2500
The distance from spindle center line to column guide way surface(mm)	550	629	660	850	850
The distance from spindle nose end face to table upper surface(mm)	150660	135~735	90~765	200~962	180~942
X/Y/Z travel(mm)	850/510/510	1020/560/600	1200/600/675	1530/800/762	1850/800/762
X/Y/Z guide way type	box way	box way	box way Y-axis 4 rails	box way Y-axis 4 rails	box way Y-axis 4 rails
X/Y/Z rapid traverse speed(m/min)	20/20/18	24/24/18	20/20/18	15/15/12	15/15/12
Feedrate (mm/min)	17600	1~10000	1~10000	1~6000	1~6000
Positioning accuracy	X0.025 YZ0.020	X0.025 YZ0.020	X0.030 YZ0.020	X0.030 YZ0.020	X0.030 YZ0.020
Repeat positioning accuracy	X0.010 YZ0.008	X0.010 YZ0.008	X0.013 YZ0.008	X0.013 YZ0.008	X0.013 YZ0.008
X/Y/Z servo motor power(Nm)	12/12/12	12/12/12	22/22/22	22/22/22	22/22/22
Spindle motor power(kW)	7.5/11	7.5/11	11/15	11/15 wide range motor	11/15 wide range motor
Spindle speed range(r/min)	60~8000	60~8000	45~6000	45~6000	45~6000
Spindle taper	#40(7/24)	#40(7/24)	#50(7/24)	#50(7/24)	#50(7/24)
Tool magazine capacity/Type	20/drum 24/swing arm	20/drum 24/swing arm	24/swing arm	24/swing arm	24/swing arm
Tool adaptor type		BT40	BT50	BT50	BT50
Max. Tool weight(kg)	7	7	15	15	15
Max. Tool diameter/length(mm)	77/305	77/305 swing arm	127/305 swing arm	110/350swingarm	110/350swingarm
Time of tool change(T-T)(sec)	6~8/3	6~8/3	3.5	3.5	3.5
Air pressure requirement (mPa)	0.5	0.6	0.6	0.6	0.6
Power requirement (kW)	25	25	35	40	40
Overall dimension(L×W×H)	3350×2280×2650	2820×2820×2477	2880×2815×2791	4300×3480×3120	5160×3480×3120
Net weight (kg)	7000	8000	8500
