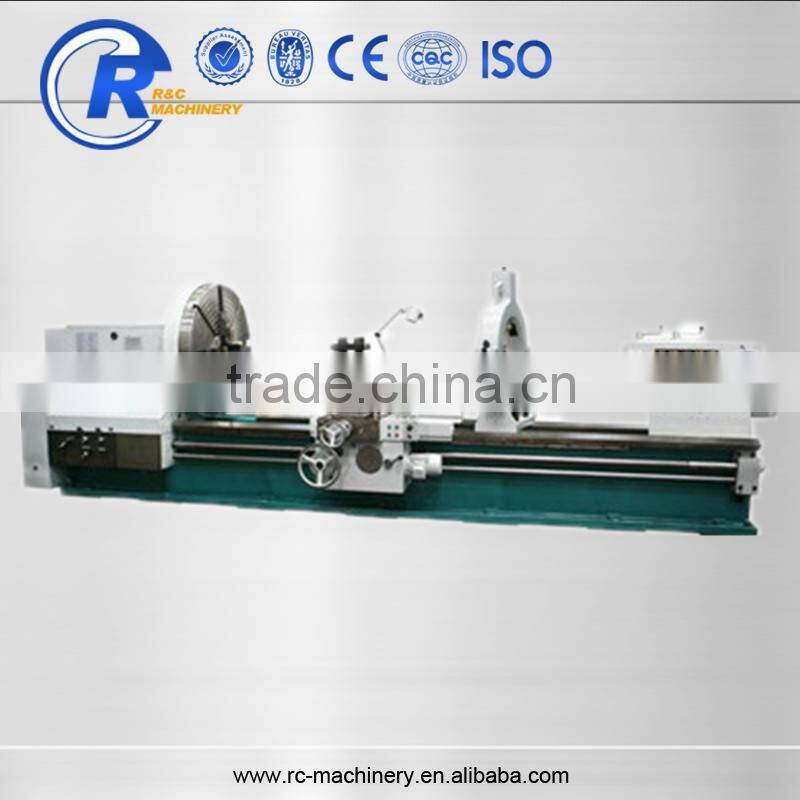

CS61125 China Horizontal Heavy Duty Lathe Machine Price

Dalian R&C Machinery Co., Ltd.

US$ 30,000 - 80,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 2000

Place of Origin Liaoning, China

Brand Name R&C

Model Number CS61125

Voltage 380V

Power(W) 22KW

Dimension(L*W*H) 6650*2380*2040mm(min)

Weight 14000kg(min)

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Heavy Duty Lathe
2.Swing over bed:1250mm
3.Max.Load:10T
4.Motor power:22kw
5.GB/T4020-1997

CS61125 China Horizontal Heavy Duty Lathe Machine Price

IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER MACHINES >> PACKING >> R&C

Model		Unit	CS61125
Max.weight of workpieces		ton	10
Max. length of workpieces		mm	3000,5000,6000,8000,10000 (when tailstock sleeve stretches out 250mm long)
width of machine bed		mm	970
spindle speed		r/min	4.25-192 total 12 grades
main motor parameters			22kw 380V 50HZ 970rpm
swing diameter over bed		mm	1250
swing diameter over tool rest		mm	880
section of cutter arbor		mm	45×45
spindle diameter		mm	front 200
tapered hole of spindle			1:20
diameter of spindle hole		mm	100
stroke of compound rest		mm	300
longitudinal rapid moving speed		mm/min	3800
cross rapid moving speed		mm/min	1900
feed species of tool rest			48
feed range of tool rest		mm/r	longitudinal 0.057~12.726 cross 0.027~6.096 6.096
diameter of tailstock sleeve		mm	Φ200
tapered hole of tailstock centers			Mohs No.6
stroke of tailstock sleeve		mm	250
species number of threads		mm	metric 46 range 1-224
		tooth/inch	BSP 46 range 28~1
		mm	module 37 range 0.25~56
total power of the machine		KW	24.85
supporting range of steady rest	standard	mm	200-550
