DL-20M Lathe Machine Sale

FOB Price

US$ 55,000 - 80,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, slant bed
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	600/1000mmmm	Place of Origin	Liaoning, China
Brand Name	R&C	Model Number	DL-20M
Voltage	380V	Power(W)	11/15 kw
Dimension(LWH)	4140/484017941795mm	Weight	5500/6500kg
Certification	ISO9001	After-sales Service Provided	Engineers available to service machinery overseas

lathe machine sale
1.ISO9001 Quality System
2.High quality
3.High precision
4.Slant bed cnc lathe

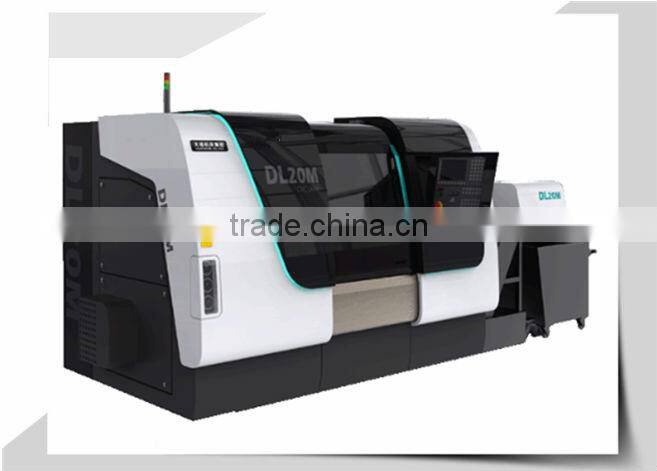

DL-20M lathe machine sale

IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER MACHINES >> PACKING >> R&C

Item	DL20M	DL25M
Swing over bed (mm)	440	520
Max turning length (mm)	600/1000	1000/1500
Max turning diameter(Shafts) (mm)	260	310
Max turning diameter(Discs) (mm)	400	500
Guide way type	linear	box-type
Chuck size	8"	10"
Spindle nose	ISO A2-8	ISO A2-8
Spindle speed (rpm)	45-4500	35-3500
Main spindle motor power(S6) (k w)	11(15)	18.5(22)
Spindle bore diameter (mm)	76	87
Max bar diameter (mm)	65	74
X-axis trave (mm)	265	260
Z-axis travel (mm)	700/1040	1100/1600
X-axis rapid travel (m/min)	24	12
Z-axis rapid travel (m/min)	24	12
Turret number of station	12	12
Tool size (mm)	25×25	25×25
Tailstock quill diameter (mm)	85	100
Tailstock quill travel (mm)	139	139
Tailstock taper (MT)	5	5
Machine size L×W×H (mm)	4140/484017941795	4834/493418301977
Net weight (kg)	5500/6500	7800/8300
CNC Type	FANUC 0i-T	FANUC 0i-T

IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER MACHINES >> PACKING >> R&C

IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER MACHINES >> PACKING>> R&C

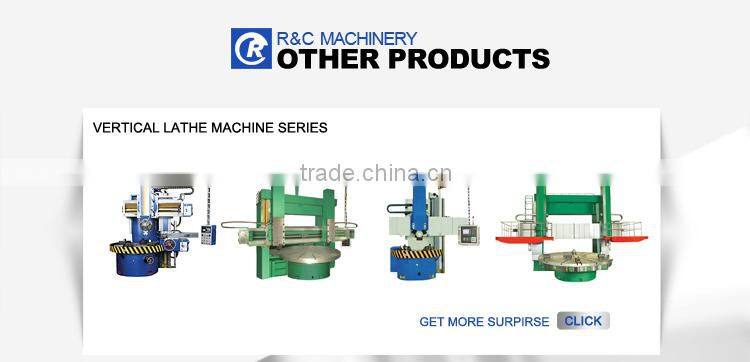

IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES >> PACKING >> R&C

IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES>> PACKING >> R&C

KINDLY CONTACT ME IF YOU NEED ANY INFORMATION.
