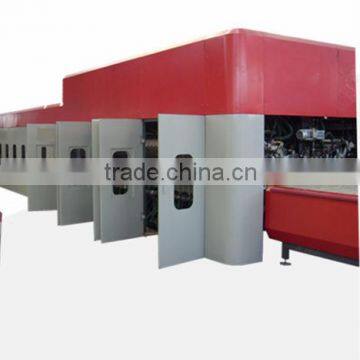

THP3015 China Fair Price Glass Tempering Furnace

FOB Price

USD $200,000 - $500,000 / Set

1 Set(Min.Order)

Supply Ability 15 Set / Sets per Month
Port Qinhuangdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Machine Type	Glass Tempering Furnace
Production Capacity	15/18 (load/h)	Place of Origin	Hebei, China
Brand Name	R&C	Model Number	THP3015
Voltage	380V	Power(W)	30KW
Dimension(LWH)	740010002500mm	Weight	3000kg
Certification	CE	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

THP3015 China Fair Price Glass Tempering Furnace

IMAGES >> SPECIFICATION >> FEATURES >> OTHER TYPES >> PACKING >> OTHER ROBOTS >> R&C(link)

IMAGES >> SPECIFICATION >> FEATURES >> OTHER TYPES >> PACKING >> OTHER MACHINERY >> R&C (link)

Models (KVA)	Max. Size( KVA)	Min. Size (KVA)	Thickness (KVA)	Capacity (KVA)	Installed Power Capacity (KVA)
THP1206	1200x600	80x80	2.8-12	11	100
THP1307	1300x700	80x80	2.8-15	14	100
			4-19		80
THP2010	2000x1000	220x100	2.8-15	30	400
			4-19		200
THP2212	2200x1200	220x100	2.8-15	40	400
			4-19		250
THP2515	2500x1500	300x150	4-19	56	315
THP2616	2600x1600	300x150	4-19	58	315
THP3015	3000x1500	220x100	4-19	67	400
THP3020	3000x2000	300x150	4-19	90	500
			5-19		400
THP3620	3600x2000	300x150	4-19	108	500
			5-19		400
THP3624	3600x2400	300x150	4-19	130	630
			5-19		500
THP4224	4200x2400	300x150	4-19	151	800
			5-19		630
THP5024	5000x2400	300x150	4-19	180	800
THP6024	6000x2400	300x150	4-19	216	1000
THP6030	6000x3000	450x300	5-19	270	1250
THP8030	8000x3000	450x300	5-19	360	1500
THP10030	10000x3000	450x300	5-19	495	2000

IMAGES >> SPECIFICATION >> FEATURES >> OTHER TYPES >> PACKING >> OTHER MACHINERY >> R&C (link)

-The tempering furnace is designed in according with standard of GB15763.2-2005,ANSIZ97.1 -2004, EN12150.2:2005.

-Degree of temper: Surface pressure is bigger than or equal to 90Mpa. The disparity of stress value in the same piece of glass will be less than 13MPa.

-Fragmentation:There would exist more than 40 pieces of fragments within area of 50x50mm.

-From distance of 1000mm and in natural light, people can not see any flaws like stress cod, breakage, and so on.

-General smoothness would reach 1.5/1000mm or more.

IMAGE >> SPECIFICATION >> FEATURES >> OTHER TYPES >> PACKING >> OTHER MACHINERY >> R&C (link)


*FLAT GLASS TEMPERING FURNACE*	*BENDING TYPE GLASS TEMPERING FURNACE*

IMAGE >> SPECIFICATION >> FEATURES >> OTHER TYPES >> PACKING >> OTHER MACHINERY >> R&C (link)

IMAGE >> SPECIFICATION >> FEATURES >> OTHER TYPES >> PACKING >> OTHER MACHINERY >> R&C

IMAGE >> SPECIFICATION >> FEATURES >> OTHER TYPES >> PACKING >> OTHER MACHINERY >> R&C(link)

Kindly contact me for further questions.
