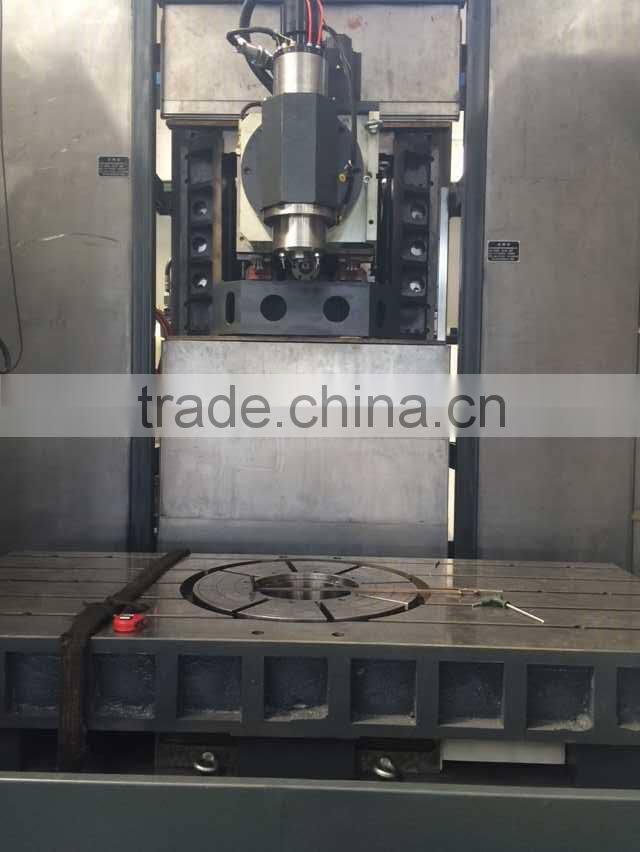

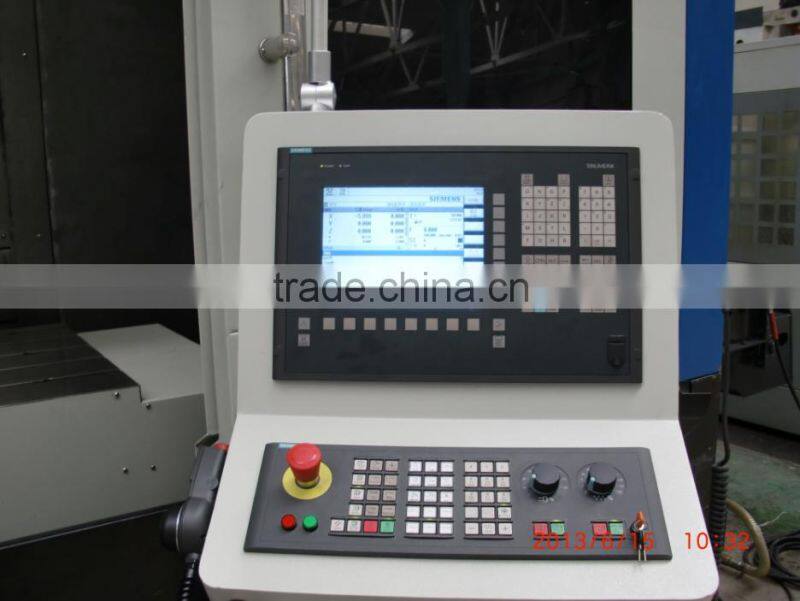

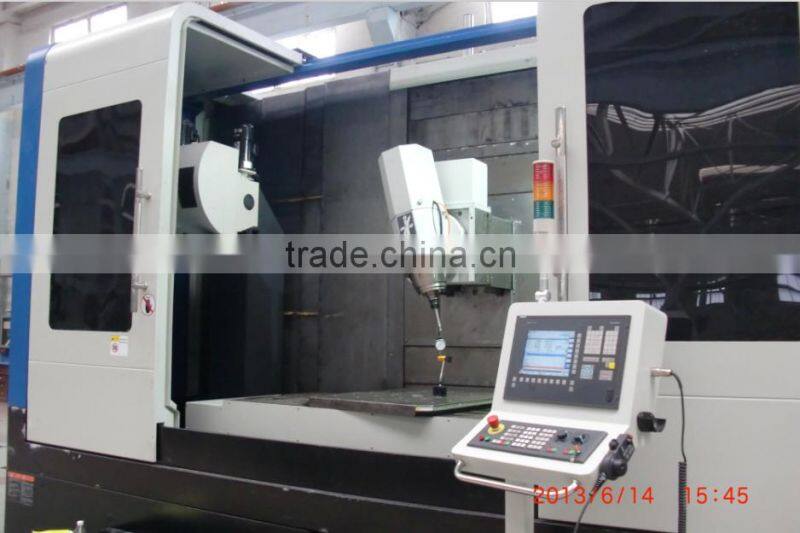

VS80180 5 axis Vertical Machine Center price
- SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Type | Vertical | |
| Place of Origin | Jiangsu, China | Brand Name | R&C | |
| Model Number | VS80180 5 axis vertical machine center | Voltage | 380V | |
| Power(W) | 15/18.5kw | Dimension(L*W*H) | 800*2000(table size) | |
| Weight | 22000KG | Certification | ISO CE | |
| Warranty | 1 YEAR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
VS80180 R&C low cost oil cooling CNC 5 axis Vertical Machine Center
| IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES >> PACKING >> R&C |
 |
IMAGE > SPECIFICATION>MAIN PARTS > OTHER 5AXIS>PACKING>OTHER MACHINES> PACKING > R&C |
Item | VS80180 |
Table size(mm) | 800×1800 |
X/Y/Z travel(mm) | 1800×800×800 |
Embedded rotary table diameter(C axis) | Φ630 |
Max. table loading(Kg) | 2000 |
Distance from spindle nose to table surface(mm) | 220---1020 |
Spindle type | BT40 |
Spindle diameter | 170mm |
Spindle swivel angle B axis | ±110° |
Spindle speed | 8000/10000/12000 |
Tool magazine type | BT40 |
Tool magazine capacity | 24/32 |
Repeatability(mm) | X:0.01 |
Y:0.01 | |
Z:0.01 | |
C axis:0.0015° | |
B axis:0.0015° |
IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES >> PACKING >> R&C |
|
| IMAGE >> SPECIFICATION >> MAIN PARTS>> OTHER 5AXIS>> OTHER MACHIN >> PACKING >> R&C |
|
|
|
|
VS555 Machining Area 300x300x300mm TableSwivel ±90° | VS655 Machining Area 600x300x420mm Spindle Swivel ±110° | VS5080 Machining Area 800x500x500mm Spindle Swivel ±110° | VS80180 Machining Area 1800x800x800mm Spindle Swivel ±110° |
IMAGE >> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >> OTHER MACHINES >> PACKING >> R&C |
|
|
Looking forward your contact!
