Home > Products > Solar Controller > SD2024T/SD3024L Solar Charge Controller

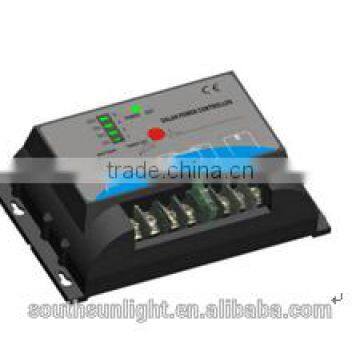

SD2024T/SD3024L Solar Charge Controller
USD $12 - $12
/ Piece
20 Pieces(Min.Order)
- 50000 Piece / Pieces per Month
- Shenzhen
You May Like
-
SL20 Solar Charge Controller
-
SC2060/SC4060 Solar Charge Controller
-
mppt solar charge controller
-
Factory supplier 12V/24V solar charge controller with USB output, pwm solar charge controller manual, 30A/50A solar controller
-
Factory supplier 12V/24V solar charge controller, pwm solar charge controller manual, 5A/10A solar controller
-
Factory supplier 12V/24V solar charge controller with USB output, pwm solar charge controller manual, 5A/10A solar controller
Product Details
| Place of Origin | Guangdong, China | Brand Name | South sunlight or customer's own brand | |
| Model Number | SD2024T/SD3024L 10A-30A | Application | Solar System Controller | |
| Rated Voltage | 24V | Maximum Current | 30A |
Product Description
Model No. Parameters | SD2024T/SD3024L | SD3024L |
| |||
Rated Voltage | 12V / 24V |
| ||||
Rated Current | 10A | 15A | 20A | 30A |
| |
Over-Charge Protection | 14.4V / 28.8V ± 0.2Vdc |
| ||||
Over-Discharge | Cut-off | 10.7V / 21.4V ± 0.2Vdc |
| |||
Resume | 12.6V / 25.2V ± 0.2Vdc |
| ||||
Over-Voltage | Cut-off | 16.5V / 33Vdc |
| |||
Resume | 15V / 30Vdc |
| ||||
Voltage Drop | Between input and batteries | <0.2Vdc |
| |||
Between batteries and load | <0.2Vdc |
| ||||
No Load Current Draw | <15mA |
| ||||
Ambient Temperature | -10 ~ +55 °C |
| ||||
Altitude | ≤5500m |
| ||||
Size (L*W*H: mm) | 164*100*48 |
| ||||
Weight (Kg) | 0.3/0.4 | 0.5 |
| |||
Temp. Compensated factor | -4 mV / cell•°C |
| ||||
Gross weight(Kg) | 13/14 | 15 | ||||
Carton size(L*W*H:mm) | 355*310*395 |
| ||||
Packing quantity | 30 PCS |
| ||||
