New design China 50W TV portable solar power system or solar energy home system with tv in a low price made in china

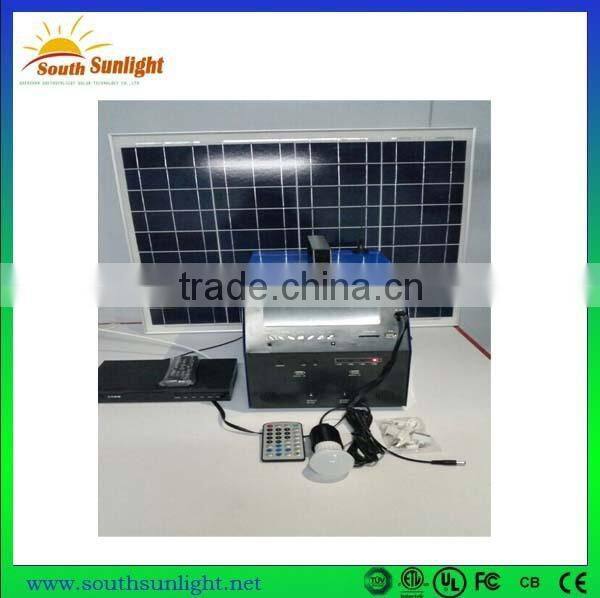

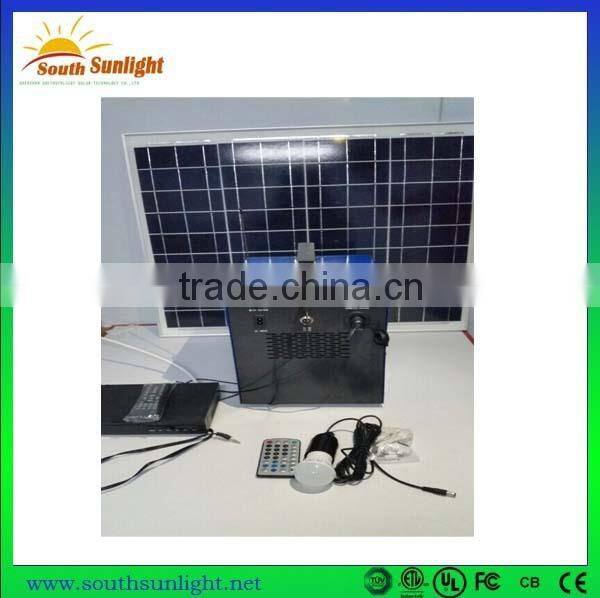

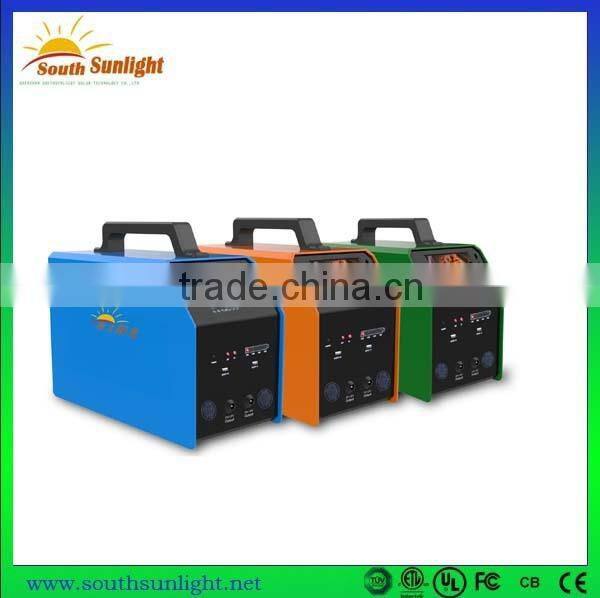

50w mobile home solar system pictures:

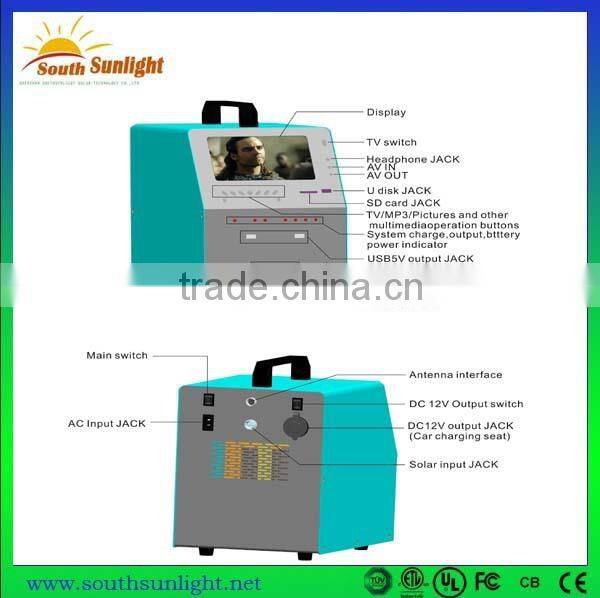

50w portable solar power system structure chart:
50w portable solar power system features:
1. Perfect working indicator gather on the main MCU controller, users can easily and fully grasp the system operation and achieve full intelligent control through the chassis panel indicator.
2. Internal core components are designed to easily changable form.When one part is damaged, users can maintain it without any professional knowledge.
3. Low self-loss, high energy efficiency, high stability are the advantages of the system.The system achieves zero power when turned off, improving the overall performance of the system through the system perfect switch settings which makes the system more energy-efficient, time-use load more lasting.
4. Multi-voltage output of the system for different digital products to use.
5.Pure sine wave AC output waveform is smoother than the grid, and anti-load capacity is more prominent. Have humane AC display interface, can have real-time view of the AC voltage, frequency and temperature.
6.The system uses terminal connections to connect external components,having the anti-anti, overcurrent, overvoltage, over-discharge protection features. The intelligent control makes it possibleto use without any professional knowledge, suitable for different consumer groups.
50w portable solar power system parameters:
| Model | NFYG2-02-003/003(A) | |||
| Battery Capacity | 204VA | |||
| System voltage | 12VDC | |||
| full charging can output power | 142.8WH | |||
| Solar panel | Pmax | 50W | ||
| Vmp | 18V | |||
| Imp | 2.78A | |||
| Controller | Voltage | 12V | ||
| Current | 5A | |||
| Output voltage | 12V | Voltage | 10.8-14.6V | |
| Current | 3A/8A | |||
| MAX Current | 4A/9A | |||
| 8.4V/5V/3.3V | Voltage | 8.4V/5V/3.3V +/-0.2V | ||
| Current | 1A | |||
| MAX Current | 1.2A | |||
| Battery | Capacity | 12V/17AH | ||
50w portable solar power system load products reference only:
| Name of Load | Power(W) | Quantity |
Working Time (H) |
Power consumption(WH) |
| LED lamp | 2 | 2 | 35.7 | 142.8 |
| mobile phone | 1.6 | 2 | 44.6 | 142.8 |
| digital camera | 1.5 | 2 | 47.6 | 142.8 |
| radio | 8 | 1 | 17.9 | 142.8 |
| MP3 | 5 | 1 | 28.6 | 142.8 |
| interphone | 3.6 | 2 | 19.8 | 142.8 |
| mini DC 12V fan | 5 | 2 | 14.3 | 142.8 |
| DC 12V floor fan | 15 | 1 | 9.5 | 142.8 |
| DC12V miniTV | 6 | 1 | 23.8 | 142.8 |
| DC 12V mini speaker) | 4 | 1 | 35.7 | 142.8 |
| (DC12Venergy saving lamp) | 5 | 2 | 14.3 | 142.8 |
| toy car | 1.8 | 2 | 39.7 | 142.8 |
50w portable solar power system accessories :
We are professional manufactuer on solar power system in China ,if you have any problems ,please contact me:
skype:emy19890204 whatsapp:008613528747569 wechat:13528747569
We can do ODM OEM as your detailed requirments !
