BAFA approved air to water Heat Pump

                         New Choice Of Heating-KERAM® HEAT PUMP SYSTEM

                                                 German Quality

About Keram

Keram (Nanjing) Science & Tech Co. Ltd, is a high tech company who is mainly engaged in manufacturing the heat pumps, central air conditioners, and its accessories by using and developing the renewable energy.

Heat pump Fuction

• Space heating;
• Heating hot water
• Cooling

Distinguishing features:

· COP = 4.9 at G0C / W 35 C

· Cutting Scroll compressors.

· Integrated electric heaters assist the heat pump 3/6/9kW at extremely cold temperatures or very high demand for hot water.

· Integrated Hot water tank with a capacity of 185L stainless steel. Persistence over 30 years.

· Heat exchangers made of stainless steel.

· The integrated display controller having a function of weather control, and support for domestic hot water heating in protection

· The controller also supports the work of several pumps in cascade.

· Soft start and phase loss control as standard .

· Integrated circulation pump of the lower and upper source

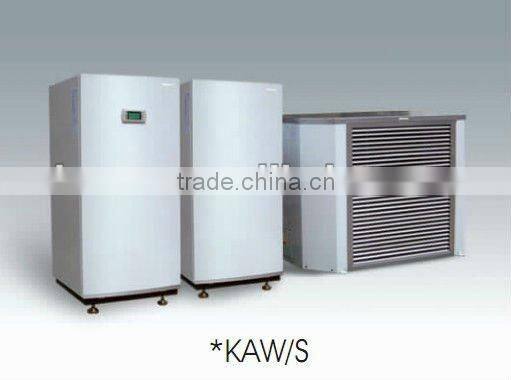

About KAW Series:

KAW series heat pump is an extremely economical and reliable heat pump, which is available in the output 6-20kw  .  It can heating and supply domestic hot water  simultaneously in winter, supply cooling and hot water in summer.

KAW series heat pump will have a best performance even if installed in the are where the temperature drops to -20c,(COP can reach to 2.7) it can save your heating cost up to 65% under a standard working conditions, and generates the heating temperature to max.65^oC

We also add the electrical heater (max 9kw) as a heating assistance to ensure the daily supply of domestic hot water and heating when there has a over demand,or under the circumstance when the weather is extremelycold and the compressor can't produce enough heat for your house.

 features:

 1. Scroll compressor;
 2. Electrical additional heating up to 9KW

 3.180L water tank to gurantee the hot water supply

 4. Large LED display control panel, easily read and operation

5. Auto alarm system;

6. Heating water pump and brine pump are the standard outfits

7. 220v, single phase available

8. Soft start relay

9. GSM remote control(optional)

 EVI compressor makes the unit could work well under -25°C,updated  inverter

          compressor,electronic expansion valve and sofware makes the COP a great increase
