TK6513 Precision Boring and Milling Machines for Sale on

FOB Price

US$ 300,000 - 550,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Production Capacity	10	Place of Origin	Liaoning, China
Brand Name	R&C	Model Number	TK6513
Voltage	380V	Power(W)	55(kW)
Dimension(LWH)	Worktable Size 1400x1600	Weight	50-80T
Certification	CE ISO BV	After-sales Service Provided	Engineers available to service machinery overseas

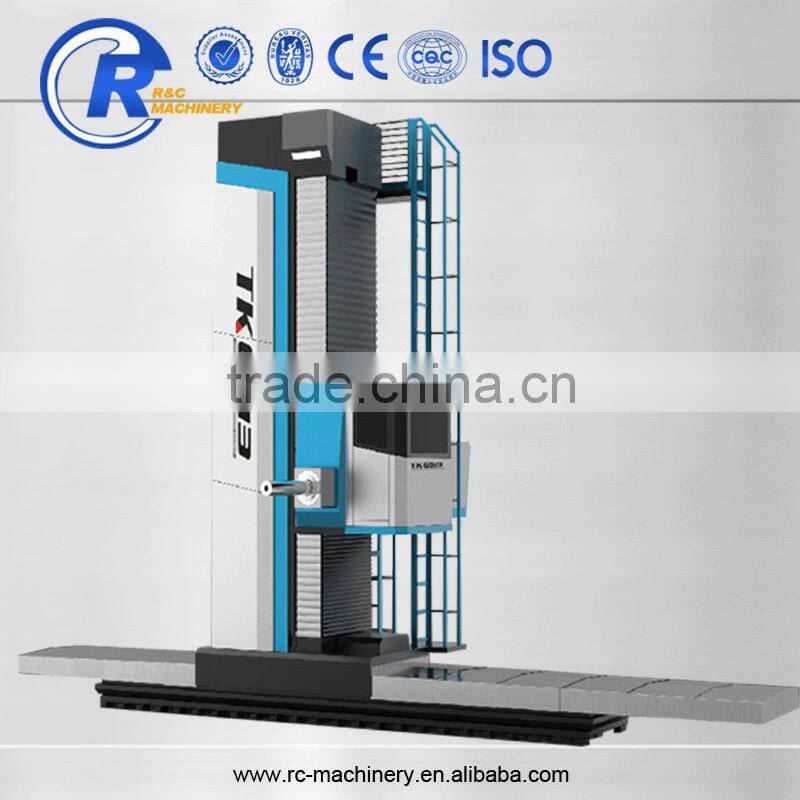

TK6513 Precision Boring and Milling Machines for sale on alibaba

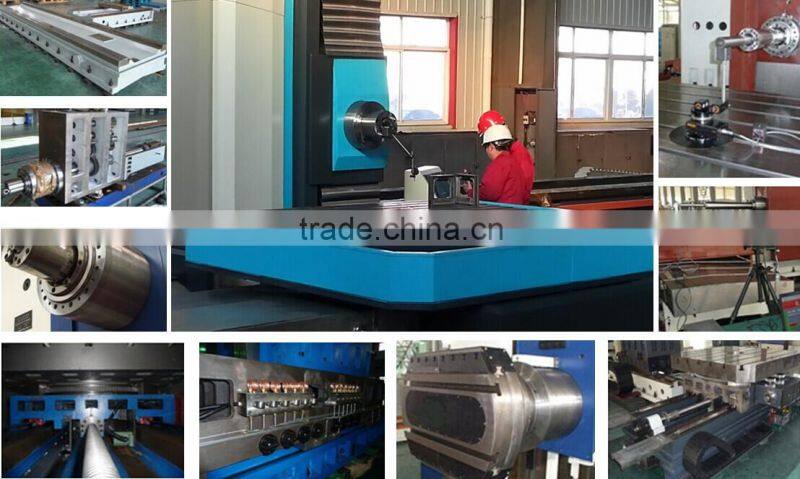

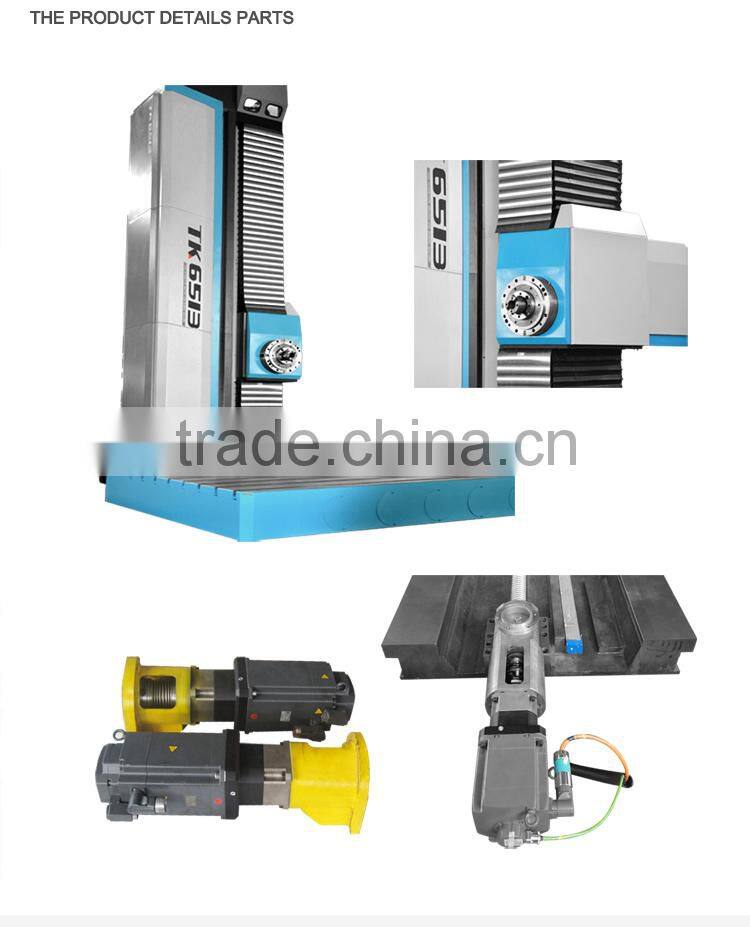

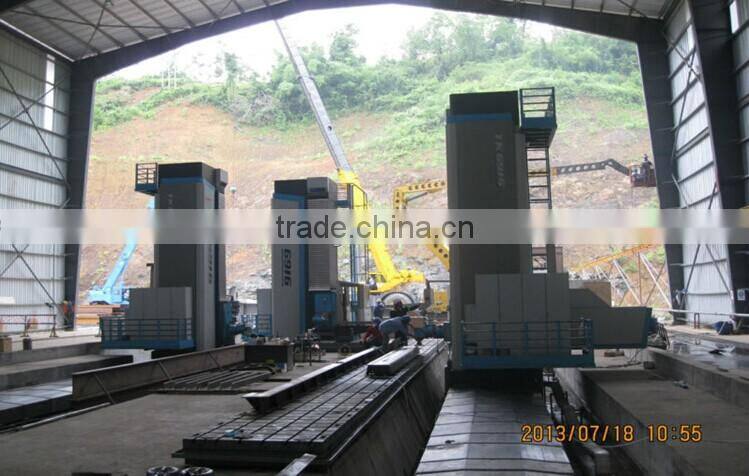

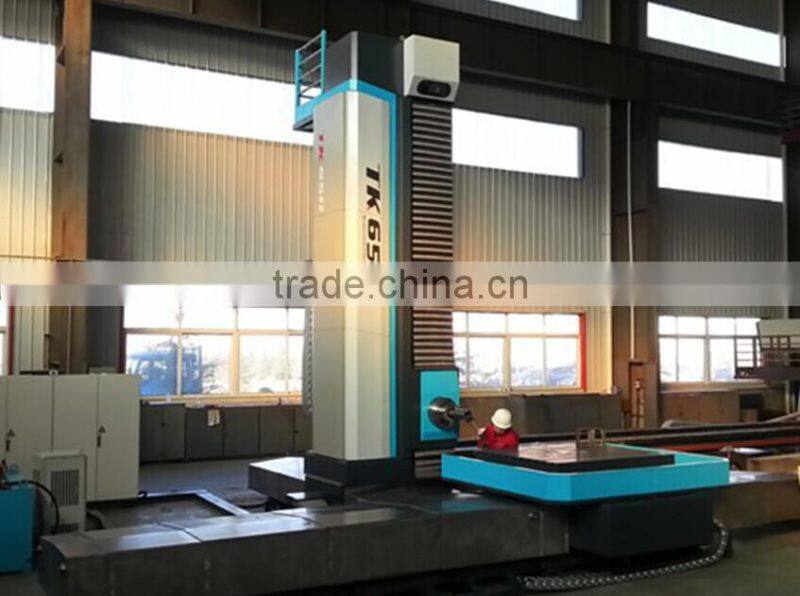

IMAGES>SPECIFICATION>SHOW ROOM>OTHER VERTICAL LATHES>OTHER MACHINES>PACKING>R&C

IMAGES>SPECIFICATION>>SHOW ROOM>>OTHER VERTICAL LATHES>>OTHER MACHINES>>PACKING>>R&C

Item			Unit	TK6513
Headstock	Spindle Dia		mm	φ130
	Spindle Bore Taper		ISO	50
	Spindle Rotating Speed		r/min	2~2000
	Milling Shaft Head Dia		mm	φ221.44
	Cross Section of Ram		mm	480x520
	Main Motor Power		kw	55
	Worktable Size			1400x1600 1600x1800
	Max. Load Capacity of Worktable (Adjustable)		kg	10000
	Distance Between Spindle Center and Worktable			-25
	Min. Distance from Spindle to Worktable			0
Machining Area	Travel of Worktable (X-axe) ADJUSTABLE			2000
	Vertical Travel of Head Stock (Y-axe) ADJUSTABLE			2000
	Travel of Spindle (Z-axe)		mm	800
	Travel of Ram (V-axe)		mm	-
	Travel of Column (W-axe)		mm	1500
	Rotary Angel of Worktable		°	360
Feed Rate	Travel Speed of Worktable (X)		mm/min	0.5~6000
	Vertical Travel Speed of Headstock (Y)		mm/min	0.5~6000
	Travel Speed of Spindle(W)		mm/min	0.5~4500
	Travel Speed of Ram (Z)		mm/min	0.5~4500
Tool Magazine (Optional)	Tool Magazine		-	40/60
	Max. Weight of Tool		kg	40
	Max.Tool Diameter	Occupancy of All Tool Positions	mm	φ125
		Vacant adjacent Tool Position	mm	φ250
	Max. Tool Length		mm	300
	ATC Time		s	15
Control System(Optional)			FANUC, FAGOR, SIEMENS

IMAGES>>SPECIFICATION>>SHOW ROOM>>OTHER VERTICAL LATHES>>OTHER MACHINES>>PACKING>>R&C

IMAGES>SPECIFICATION>SHOW ROOM>OTHER VERTICAL LATHES>OTHER MACHINES>PACKING>R&C


Tk69	TPX

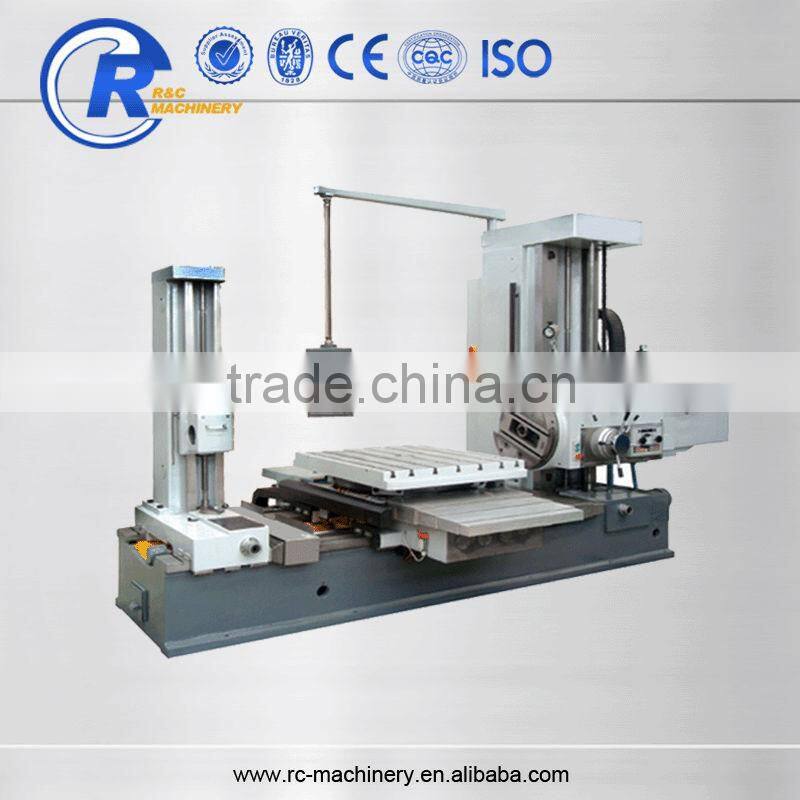

Please click above photos to know more boring and milling machines.

IMAGES>>SPECIFICATION>>SHOW ROOM>>OTHER VERTICAL LATHES>OTHER MACHINES>PACKING>>R&C

IMAGES>> SPECIFICATION>> SHOW ROOM>> OTHER VERTICAL LATHES>> OTHER MACHINES> PACKING>> R&C

IMAGES>> SPECIFICATION>> SHOW ROOM>> OTHER VERTICAL LATHES>> OTHER MACHINES>> PACKING>> R&C

CERTIFICATION.

PLEASE CONTACT WITH US.
