High Purity 99 Alumina Crucible Zirconia Crucible for Melting
- 100000 Piece / Pieces per Month
- Shanghai.Tianjin.Qingdao.etc
- T/T L/C D/P D/A Credit Card PayPal
- Sodium Lauryl Ether Sulphate /SLES 70% for personal care
- Precision Ceramic Chuck Semiconductor Equipment
- Ceramic Tubes with Fine Tube Sizes Available For Customization
- Corrosion Resistant and Insulating Alumina Ceramic Tube
- ST.CERA Customized Precision Zirconia Ceramic tube
- Semiconductor Ceramic Components Ceramic Focusing Rings
Product Details
Place of Origin: | Henan, China | Type: | Ceramic Plates | Application: | Industrial Ceramic |
Model Number: | JK-ACQ-CR69 | Brand Name: | JK |
Product Description
High Purity Al2o3 High Temperature Casting Alumina Ceramic Crucible 99
1. Uses of alumina crucible, zirconia crucible:
Used for a variety of experimental metal and nonmetal sample analysis, industrial analysis, testing laboratory and molten materials, etc.•melting ceramic crucibles/smelting crucibles/crucible for melting/crucible for iron melting/crucible for gold melting/crucibles for melting steel (glass/gold/silver/platinum)
2. Typical Application of alumina crucible, zirconia crucible:
Widely used in engineering, mechanical seals, electronics, instrumentation, sensing, transport, communications, and other occasions or areas.
3. Characteristics of alumina crucible, zirconia crucible:
- good rigidity
- high hardness
- excellent insulation,
- superior thermal conductivity
- high temperature resistance
- oxidation resistance
- corrosion resistance
- abrasion resistance
- high temperature strength
- ...
1. Shapes of alumina crucible, zirconia crucible:
- arc crucible,
- square crucible/plate,
- rectangle crucible/plate,
- column crucible
- ...any other shaped ones as you require.
All kinds of shaped crucibles can be customized.

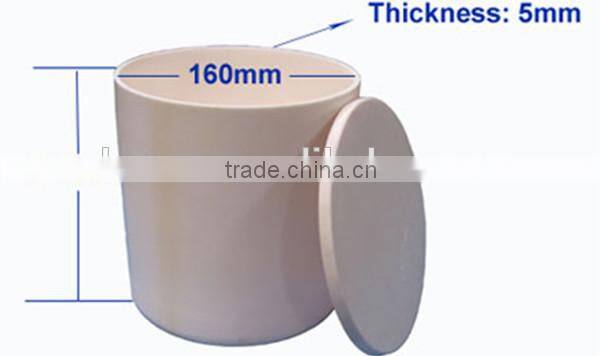

2. Standard Sizes of alumina crucible, zirconia crucible:
5ml 10ml 15ml 20ml 25ml 30ml 50ml 100ml 150ml 200ml- 2500ml
Capacity (ml) | Specification (mm) |
5 | Dia20x25x2 |
10 | Dia29x33x2.5 |
20 | Dia34x38x2.5 |
30 | Dia38x44x2.5 |
40 | Dia42x45x2.5 |
50 | Dia45x48x2.5 |
60 | Dia47x47x2.5 |
70 | Dia50x55x2.5 |
80 | Dia50x56x2.5 |
100 | Dia52x60x2.5 |
120 | Dia45x120x2.5 |
130 | Dia57x66x2.5 |
150 | Dia50x100x2.5 |
170 | Dia50x120x2.5 |
250 | Dia65x80x3 |
280 | Dia65x105x3 |
300 | Dia85x60x3 |
320 | Dia70x100x3 |
400 | Dia90x90x4 |
450 | Dia80x115x3.5 |
600 | Dia85x130x3.5 |
750 | Dia91x140x3.5 |
800 | Dia95x135x4 |
900 | Dia95x160x5 |
950 | Dia100x150x4 |
1200 | Dia100x150x4 |
1250 | Dia100x200x5 |
2000 | Dia120x260x5 |
2500 | Dia155x150x5mm |
Note:
Any other sizes and shapes can be produced according to customers’ specific requirement.
Crucibles with different shapes and various kinds and specifications will be available.
3. Technocal data of alumina crucible, zirconia crucible:
Alumina ceramic crucibles will be produced per the dimension or drawings of our customers.Name | Alumina Crucible | |
Chemical Ingredient | Al2O3 | >=99.7 |
R2O | <=0.02 | |
Fe2O3 | <=0.01 | |
SiO2 | <=0.2 | |
Volume Density (G/Cm2) | >=3.90 | |
Apparent Porosity (%) | <1 | |
Bending Strength (Mpa) | >350 | |
Compression Strength (Mpa) | >12000 | |
Dielectric Constant∑(Mhz) | 2 | |
Max. Service Temperature (C) | 1800 |
1. standard export packing , wooden case , cartoon case. Alumina/zirconia crucibles will be protected well.
2. Alumina crucible, zirconia crucible can be delivered in any way as you like: by sea ,by air , by express (DHL,FEDEX,EMS,TNT.......)
1) by sea ....... if the order is big/heavy, not urgently needed, by sea would be suggested.
advantage: much cheaper
disatanvage: take longer time.
2)by air.......... advantage: much faster than deliveried by sea
disadvantage: you have to go to airport to take goods and custom yourself.
3)by express....advantage: goods will be delivered faster with door to door service.
disadvantage: a little more expensive
1. Seriously reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well trained professional engineers and staff.
5. As an honest seller, we use superior raw material, advanced machines, skilled technicians to ensure our products finished in high quality and stable feature.
5. Samples are available for your evaluation.
We are manufacturer of high quality alumina/zirconia/ silicon carbide products, with advanced machines and experienced staff. We can produce any workpieces according to your specific requirement and drawings.
1. What’s your MOQ ?
At present we have no strict policy for this, so welcome orders with any quantity.
2. Are you a manufacturer or trade company ?
Yes, you are assured that we are manufacturer with full experience in this field and having developed business in domestic and oversea.
3. Do we accept OEM?
Yes, we would love to produce products according to your specific requirement.
4. How about packaging ?
Usually the products will be well packed within wooden case and standard export carton, plywood carton, or per your demand.
5. We haven’t do business before, how can I trust you?
We have been GOLD supplier for three years with no complaints on Alibaba. Our Products have been globally exported to Eath Asia, South Asia, the middle East Asia, Africa, Europe etc. and get great feedback.
Any questions please feel free to contact Amy
