Computer Cutting Twisted Wire Stripping Machine(Ultrashort Superfine Wire)

Computer cutting twisted  wire stripping machine(Ultrashort Superfine wire)

Features Description:

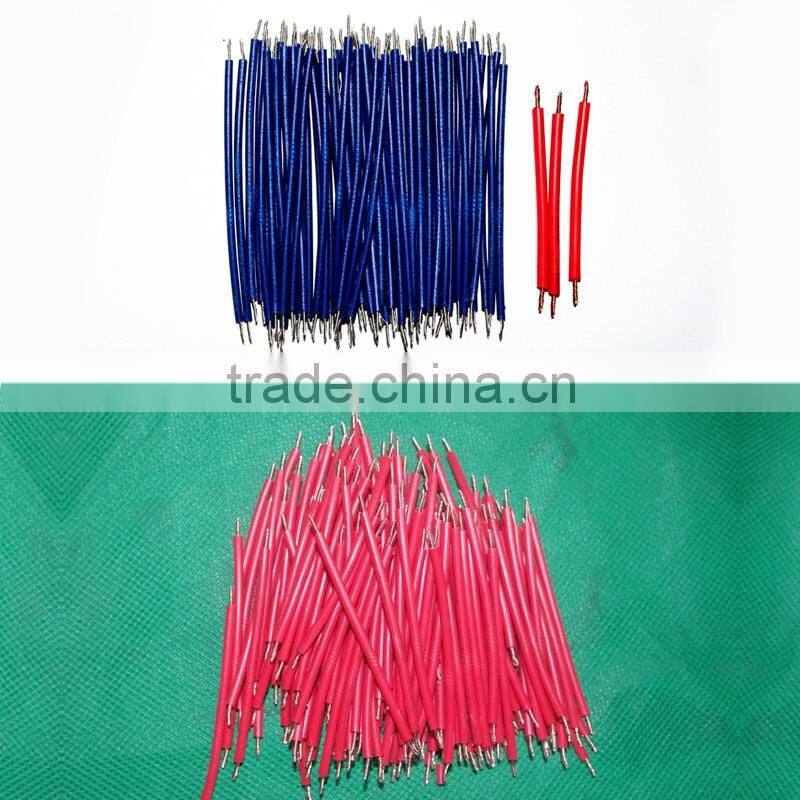

For electronic wire, silicone wire, Teflon wire, glass fiber lines, isolated lines, coaxial, casing, etc., automatic cut, skinned, half-stripped, the middle strip, twisted wire and other special features.Can instantly transform wire specifications and dimensions. New electronic products, claim for tendency of light, thin, short, small and also tend to thin wires needed, short lines and high-precision, the machine is good for these.The short wires less than 40mm used to be regarded as difficult to process, there are no difficulties now, even when the total length of only 1mm, Both ends  can peeling 0.3mm at the same time.This can set the speed of feed wire/knife,retract then peeling and peeling , the isolated wires also peeling to 99mm, Exclude the risk of Isolated lines can not be all stripping or injury to the center wire.

The system features:

1.Using the latest 32-bit Cortex-M3 core processor, running at single-cycle 72M;

2.5-way up to 100K pulse output, pulse form of "Pulse + Direction", open collector output, the output current up to 200mA;

3.7paths high-speed input point, the response time is less than 2us;

4.4 open collector output, the output current 5A;

5.Board integrated RS485 standard communication interface, and be equipped with Modbus RTU communication protocol, you can easily touch-screen communication with various brands, communication data format is 38400,8, n 1;

6.Board stepper drives configured drive power rectifier circuit,which can provide 15A current for the drive makes the machine's circuit wiring easier; During shutdown the rectifier circuit stops output, you can adjust the mechanical parts in  the continuous power;

7.With a large-capacity memory, you can save 100 sets of parameters simultaneously, to facilitate the operator to operate.

Machine parameters:

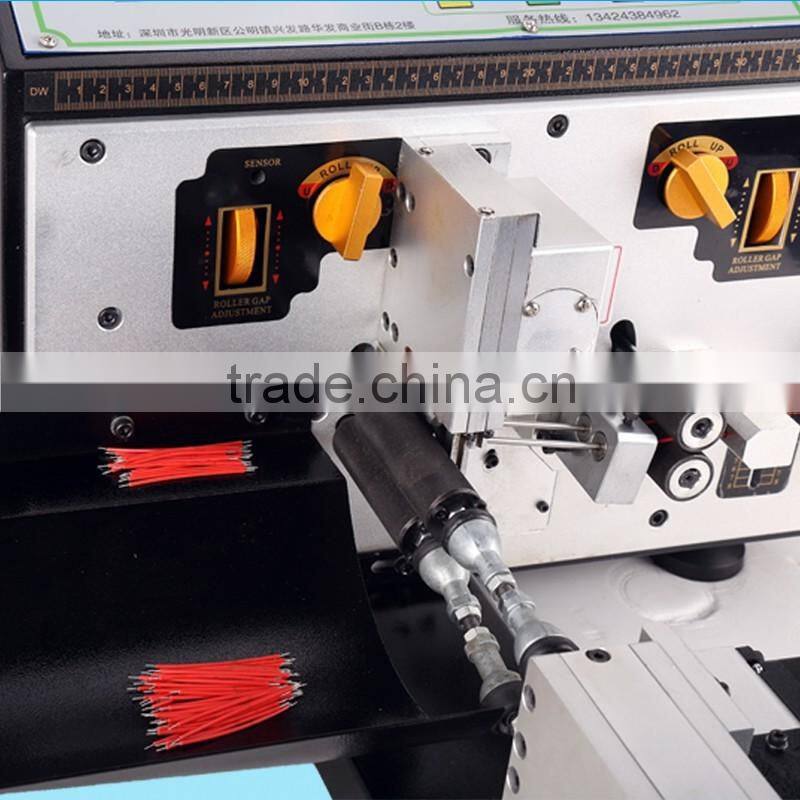

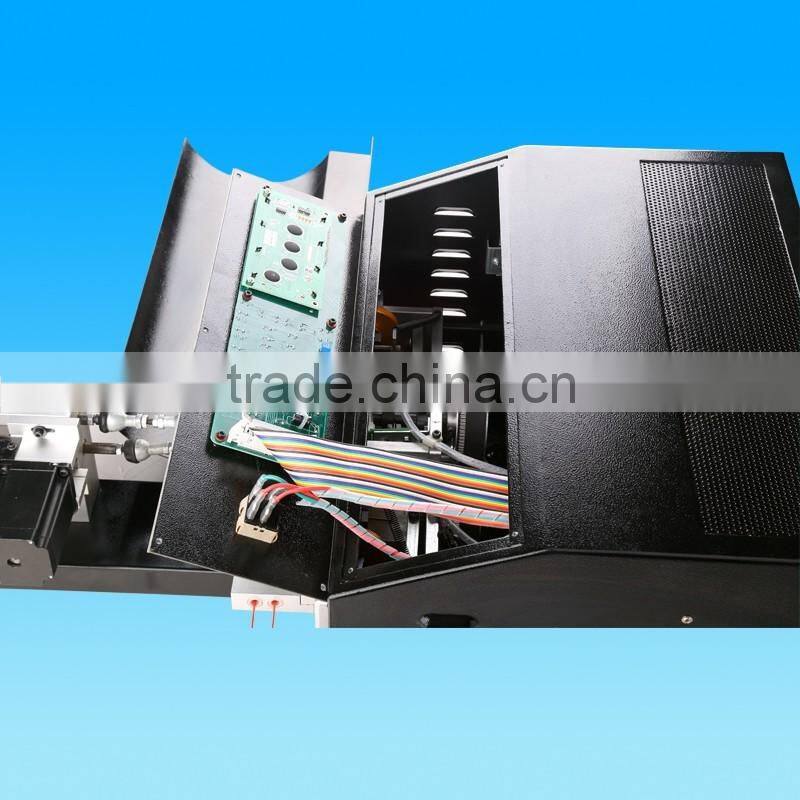

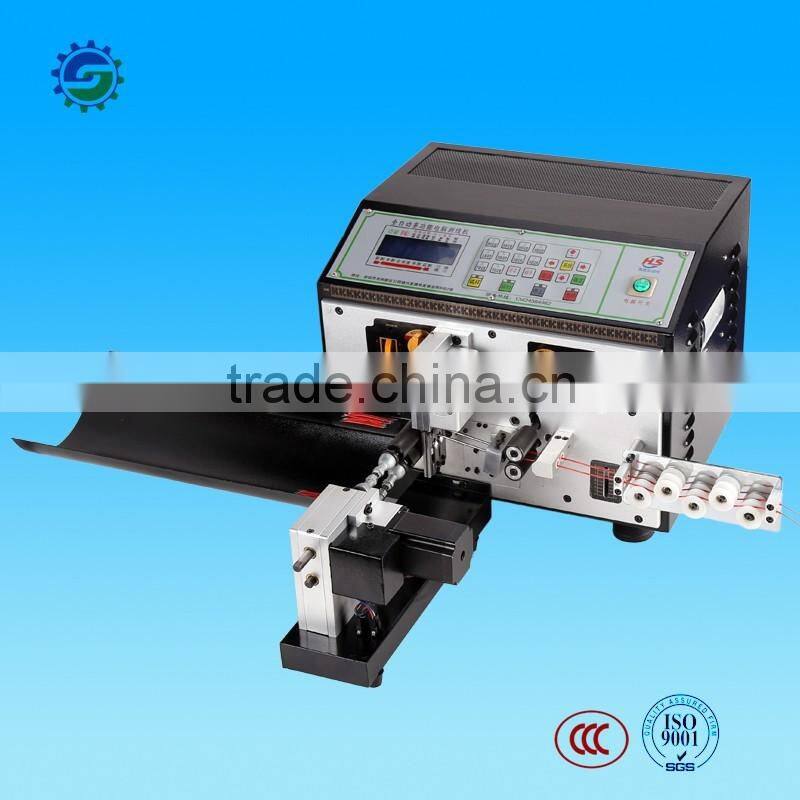

Equipment Display:

Packing Method:

FACTORY SHOW:

FAQ

1):Are you HaiSheng Automation Equipment a trader or a factory?

We are a company specializing in the production of Cable Manufacturing Equipment,  such as fully automatic terminal crimping machine, automatic wire stripping and cutting machine, automatic winding wire binding machine, automatic nylon tie belt machine, ultra quiet energy-saving terminal crimping machine, coaxial cable stripping machine, full automatic peeling and twisting wire machine and so on.

2)Whether the equipment can be customized?

We could provide you with custom-made equipment, according to the wire diameter, length, and other factors of production

3)  Is your price competitive?

We are the equipment manufacturer, not trading company, we will provide you with the best price

4)Where is your factory located? How can I visit there?

 Our factory is located in ShenZhen City, Guangdong Province, China. Nearby the ShenZhen BaoAn Airport,welcome to visit our factory. We will pick you up at the airport.
