Ultra-high-speed wire cutting peeling machine
- ShenZhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HaiSheng | |
| Model Number | HS-950L | Usage | Other, Peeling |
Product Description

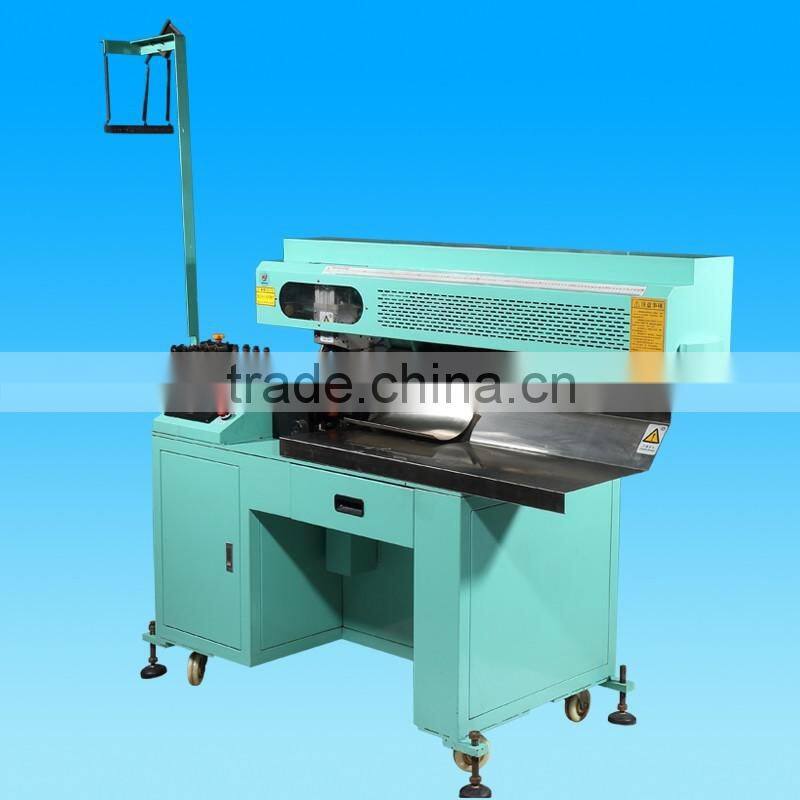

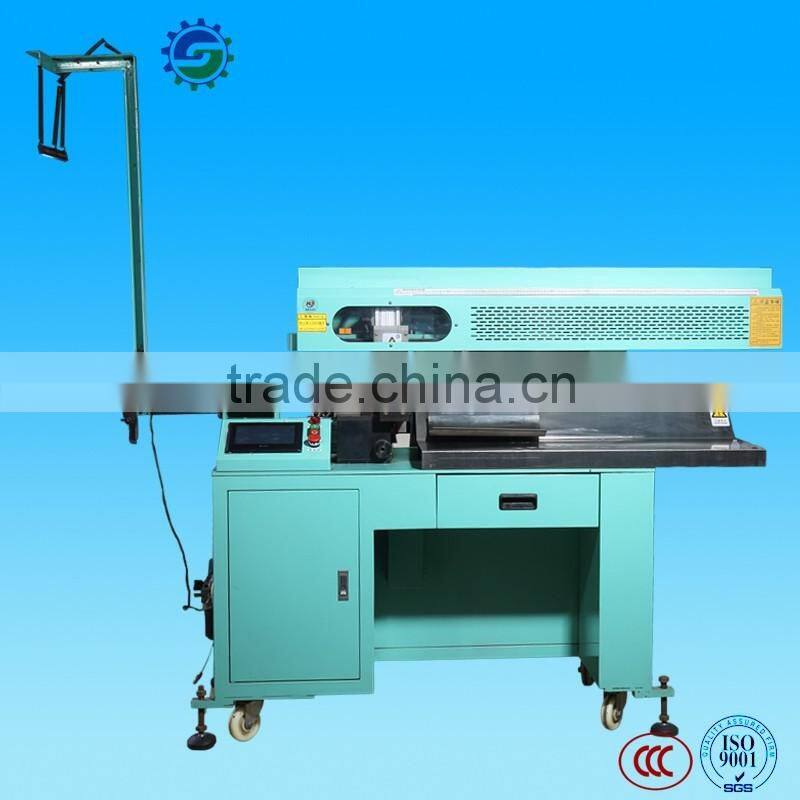

Ultra-high-speed wire cutting peeling machine
Introduction:
1.This machine uses the Japanese Mitsubishi PLC and man-machine interface touch screen, Japan Yaskawa servo motor, cylinder Japan SMC, Germany FESTO solenoid valve, Japan OMRON sensors, Japan THK linear guide.
2.Combination the easy to adjust/save time of digital type with the advantages of high efficiency production of mechanical wire cutting machine.
Technical parameters
Model | HS-950L |
Motor | AC Servo motor |
Power supply | AC 3 220V(380V) |
Cutting length | 43--9999mm |
Peeling length | Unilateral 3--30mm (no need pads, using the fine mode) |
Semi-stripping function | Unilateral 3--30mm |
Control mode | Inching, dynamic and automatic (continuous) |
Tool change | 8,10,12,14AWG;16,18AWG;20,24AWG Corner knife;24,28,30AWG Flat knife |
Applicable Wire | AWG8--AWG32 And cable,combined line, special wire |
Size | 750mmX1700mmX1580mm |
Weight | 420Kg |
Productivity table: 5- and 10-wire feeding
STROKE | HS-950L | |
Frequency | Cutting length | PCS/H |
1 | 43mm--950mm | 45000(PCS)--32000(PCS) |
2 | 950mm--1900mm | 31500(PCS)--19000(PCS) |
3 | 1900mm--2850mm | 18500(PCS)--13000(PCS) |
4 | 2850mm--3800mm | 12500(PCS)--10000(PCS) |
9 | 7600mm--8550mm | 5000(PCS)--3800(PCS) |
10 | 8550mm--9500mm | 3700(PCS)--3000(PCS) |

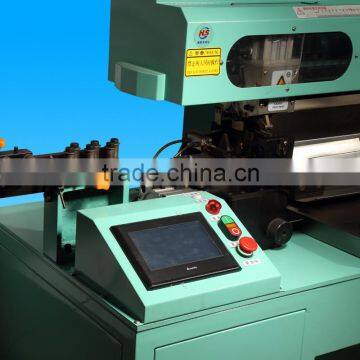

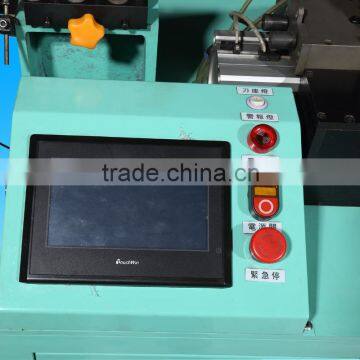

Product Display:
Our Services
---Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.
--- Technical Support
In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. HS engineers are here for your assistance.
---After Sale Service
Don’t worry, we are here to help. HS provides life time after sale support to our customers including operation guidance, parts replacement, maintainance support. Just feel free to contact us!
---OEM
HS provides OEM services to our customers.
FAQ:
If u have any question, u can feel free to contact me
