Ultra-thick cable cutting wire peeling machine
Machine features:
The company produces automatic computer stripping machine is suitable for single-strand, multi-strand wire, sheathed cable cutting, stripping head, tail stripping, middle stripping process,
Processing cross-sectional area from 0.1 to 70 square,Cut to a maximum length of 100m,Longest stripping head of about 200mm, tail stripping of 100mm.NX2 is suitable for short thin peel twist, peel twist shortest of 28-30mm,HT2 is suitable for sheath cable,in particular better for stripping the long thread/tail, this model has a lift wheel functions in the release thread,880XL peelable 10-70 square super thick cable.
Parameters:

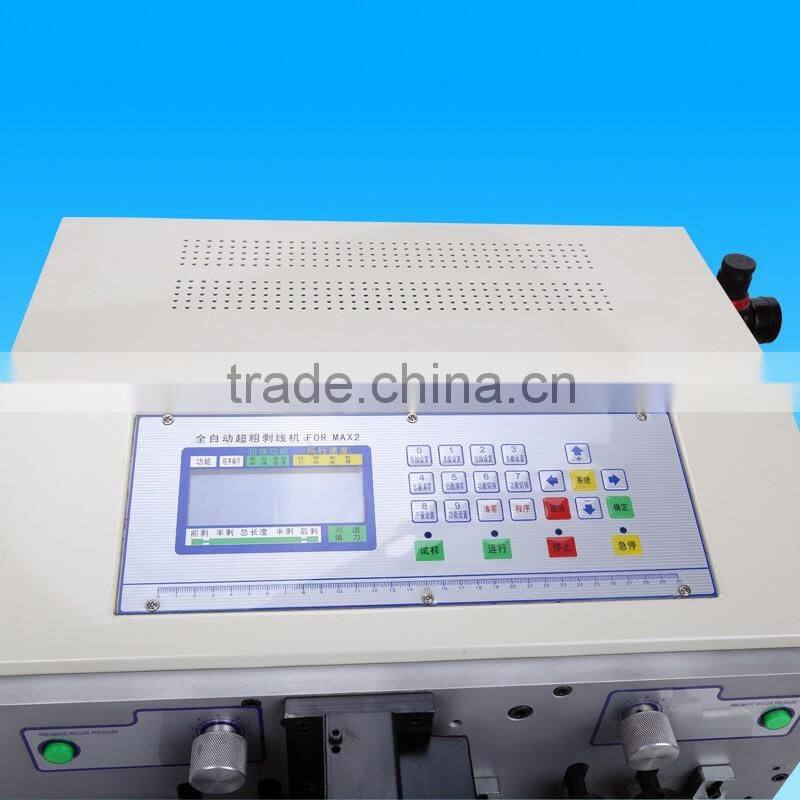

Display method | Chinese or English interface LCD display |
Cutting length | 0.1mm-100m |
Cutting tolerance | Less than 0.002*L |
Core cross-sectional area of cutting | 2-70mm2 |
The maximum diameter of the catheter | 18mm |
Intermediate stripping | 12 position |
Tool material | High-speed steel |
Stripping speed 100mm length units | 4000-6000pcs/h |
Drive mode | Eight drive (silent hybrid stepping motor, each step forward 0.1mm) |
Stripping speed, cutter speed, wire feed speed Three items can be adjusted separately | 0-9 |
Weight | 72kg |
Size | 400mm×515mm×345mm |
Rated Power | 1000w |

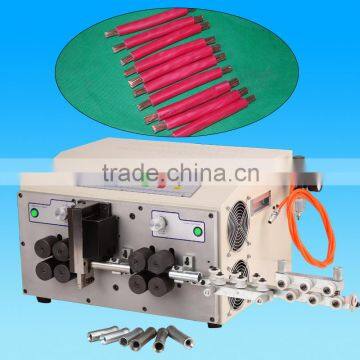

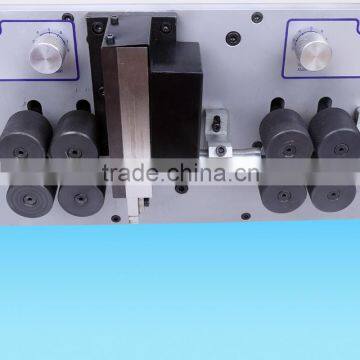

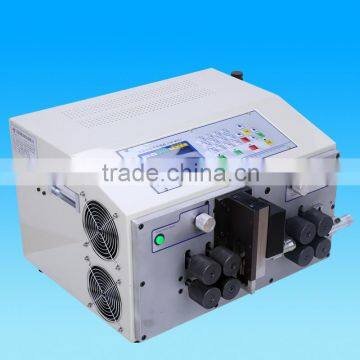

Product Display:
Our Services
---Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.
--- Technical Support
In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. HS engineers are here for your assistance.
---After Sale Service
Don’t worry, we are here to help. HS provides life time after sale support to our customers including operation guidance, parts replacement, maintainance support. Just feel free to contact us!
---OEM
HS provides OEM services to our customers.
FAQ:
If u have any question, u can feel free to contact me
