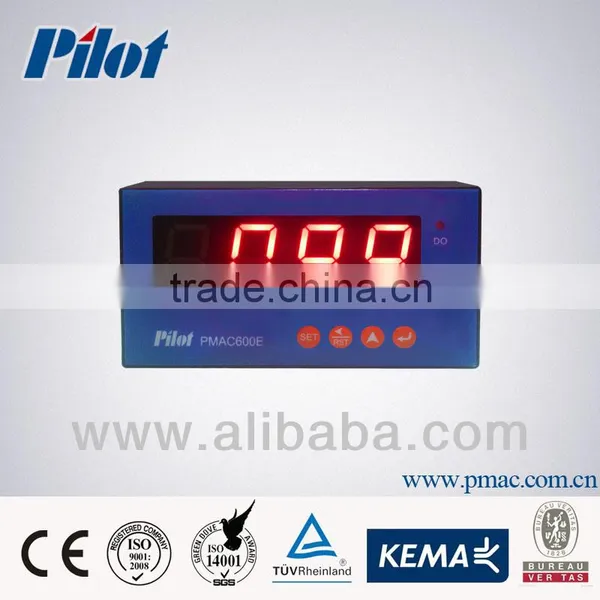

PMAC600E AC Single Phase Programmable Digital Panel Meter

FOB Price

Negotiable / Unit

5 Units(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

AC Single phase voltage meter and ampere meter
1. one realy alarm output
2. 4 LED digit display
3. 0.5%

PMAC600E AC Single phase programmable digital panel meter

Feature:

• Voltage / Ampere panel free setting by software

• One Relay alarm output

• 4 LED digit display, range from -1999 to + 9999

• Sampling rate : 4.5 times/ second

Technical information:

Max. Display	9999 (AC display available scaling function)
Input mode	Single-terminal input
A/D converter	Dual slope
Frequency	40~200Hz (Only for AC)
Overflow indication	“1” or “-1”
Polarity display	Only “-” displayed (Only for DC)
Display	Red LED
Power Supply	AC 100~240V ±10%, 50/60Hz
Power Loss	<5VA
Insulation strength	AC 1500V 1min
Insulation impedance	DC 500V≥100MΩ
Weight	350g

order information

Model	Range	Resolution	Input	Accuracy	Maximum Input Value
PMAC600E-NAV	600V	100uV – 1V	Direct Input	±0.5% F.S.	1000V

PMAC600E-NAA5 5A 1mA Direct input ±0.5% F.S. 5A
