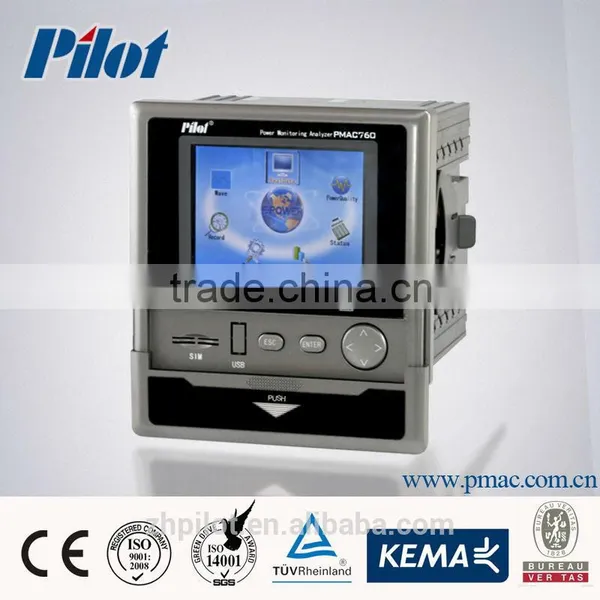

PMAC760 Power Quality Analyzer with Ethernet ,USB

Specifications

1. waveform Power meter display voltage, current, power, Hz, kWh, kvarh, 63rd harmonic
2. 4DI/ 4DO, RS485,Ethernet

PMAC760 Power Quality Analyzer with  Ethernet ,USB

 with following features:



PMAC760 is designed for monitoring and displaying electric parameters include Current, Voltage, Active/ Reactive/ Apparent power, Power factor, Frequency, Active/ Reactive energy. This also includes basic alarm on over/ under current or voltage, unbalance, demand based load shedding, and capacitor power factor correction control. All monitored values are available via two digital RS485 communication ports running the Modbus protocol. If Analog values are required for direct interface to PLC, any of the monitored values can be output to one of 4 isolated analog outputs. A process variable can be measured using an analog input. A front panel RS232 communication ports can be connected to PC for simultaneous access of information by other plant personnel.



Features:

• Realtime parameters measuring
• Two-way/ four-quadrant energy display
• 4DI/ 4DO
• Power quality analysis harmonics: voltage devisation, voltage fluctuate, and frequency deviation
• Setpoints protection system
• Max./ Min. value record
• Statistics of demand
• Error wave record

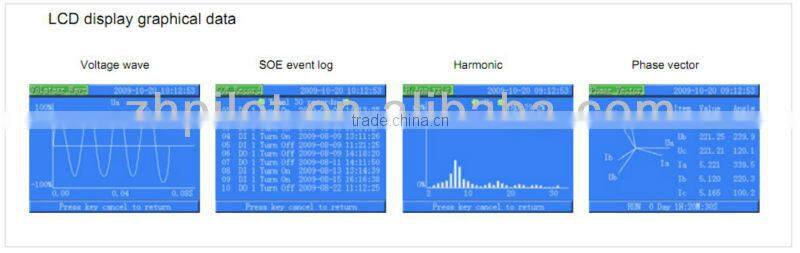

• Vector graph and diagram display
• SOE event record
• Support RS485, Ethernet,



 PMAC760  Modbus-TCP/IP Power Quality Analyzer



Basic Function
Real time metering	Voltage	Ua, Ub, Uc, Uab, Ubc, Uca, UL-L avg, UL-N avg
	Current	Ia, Ib, Ic, In, Iavg
	Power	Pa, Pb, Pc, ∑P, Qa, Qb, Qc, ∑Q, Sa, Sb,Sc, ∑S
	Power factor	PFa, PFb, PFc, ∑PF
	Energy	kWh and kvarh (4 quadrant), kVAh
	Max./ Min. value	Max._U, Max._I, Max._P, Max._Q Min._U, Min._I, Min._P, Min._Q
	Demand	Dmd_I, Dmd_P, Dmd_Q ,Dmd_S
	Phase angle
	Frequency	F
Power quality analysis	Voltage fluctuate
	Voltage deviation
	Frequency deviation
	Unbalance	U_unbl, I_unbl
	Harmonic	THDu, THDi, TOHDu, TOHDi, TEHDu, TEHDi 2nd-31st   harmonic (display), 32nd -63rd harmonic (COM)
Setpoint alarm	Over/ under limit alarm
DI/ DO	4 status input + 4 relay output
RS485	Modbus-RTU protocol
SOE and Clock	Event log and real time clock
Optional Function
Ethernet	Ethernet communication port, 10M, UDP/ TCP Server/ TCP Client
USB	USB 2.0 communication port













Accuracy:



Parameter	Accuracy
Voltage	0.2%
Current	0.2%
Power	0.5%
Power factor	0.5%
Frequency	0.01
Active energy	1.0%
Reactive energy	2.0%
2-63rd harmonic	1.0%
