Home > Packaging & Printing > Packing Machinery > Packing Line > Single-Station Side Type Pressurized Integrated Low Pressure Injection Molding Machine JX-1800H

Single-Station Side Type Pressurized Integrated Low Pressure Injection Molding Machine JX-1800H

Name: Single-Station Side Type Pressurized Integrated Low Pressure Injection Molding Machine JX-1800H
Brand: JXC/TWSL
SKU: 103625493
Availability: InStock

Shenzhen JXC Mechanical & Equipment Co., Ltd.

Single-Station Side Type Pressurized Integrated Low Pressure Injection Molding Machine JX-1800H thumbnail-1

Single-Station Side Type Pressurized Integrated Low Pressure Injection Molding Machine JX-1800H thumbnail-2

Single-Station Side Type Pressurized Integrated Low Pressure Injection Molding Machine JX-1800H thumbnail-3

Single-Station Side Type Pressurized Integrated Low Pressure Injection Molding Machine JX-1800H thumbnail-4

Single-Station Side Type Pressurized Integrated Low Pressure Injection Molding Machine JX-1800H thumbnail-5

Single-Station Side Type Pressurized Integrated Low Pressure Injection Molding Machine JX-1800H thumbnail-6

Single-Station Side Type Pressurized Integrated Low Pressure Injection Molding Machine JX-1800H photo-1

Single-Station Side Type Pressurized Integrated Low Pressure Injection Molding Machine JX-1800H photo-2

Single-Station Side Type Pressurized Integrated Low Pressure Injection Molding Machine JX-1800H photo-3

Single-Station Side Type Pressurized Integrated Low Pressure Injection Molding Machine JX-1800H photo-4

Single-Station Side Type Pressurized Integrated Low Pressure Injection Molding Machine JX-1800H photo-5

Single-Station Side Type Pressurized Integrated Low Pressure Injection Molding Machine JX-1800H photo-6

US$ 3077.00 - 3846.00 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

JXC/TWSL

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Guangdong, China

Brand Name JXC/TWSL

Model Number JX-1800H

Voltage 220V

Power(W) 4500W

Weight 400KG

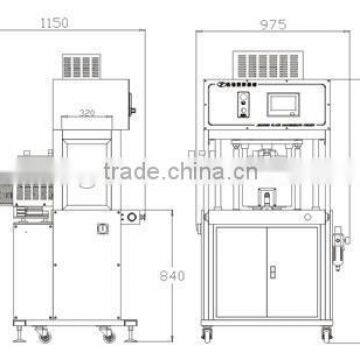

Dimension(L*W*H) 975*1150*1880 MM

Certification ROHS CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Pressurized Integrated Low Pressure Injection Molding Machine JX-1800H

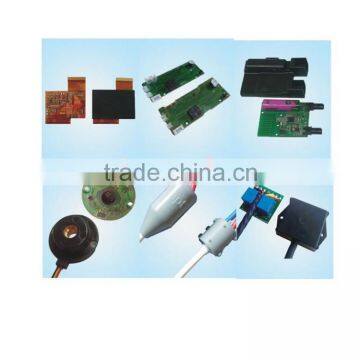

is integrated vertical single station side type injection equipment with air-draulic pressure cylinder design, adapted for small sized (less than 100*90*18mm) high valued electronic parts(PCBA, mobile battery, sensor, connector, LED, etc.) encapsulation.

Integrated design, in-built glue cylinder glue gun connected with plastic cylinder directly, take up less room. DELTA temperature control module for accurate temperature monitor, injection pressure adjustable. Manual clamping and emergency stop switch ensuring safe operation. Text screen display, pedal design conforms to human engineering requirements, convenient for operation.

Components have other options to control costs and improve equipment productivity and lifetime.

Product	JX-1800H
Size(mm) Machine(kg)	97511501880 (400kg)
Work Station Height(mm)	840
Melting Tank	（5Liter）×1
Gun & Tip Angle	（36.4°/60°/90°）optional
Electricity	200-240VAC/ 1 Phase/ 50 or 60 Hz
Temperature Control Zones	3
Glue Heating Hose	no
Temperature Range	70°-260°℃
Max.Power(Kw)	4.5
Working pressure(Mpa)	0.5（Mpa）~0.8（Mpa）
Air Consumption	0.1m3/min
Clamping Device	Air Over Oil
Clamping Force	Max.10Ton
Clamping Stroke(mm)	125mm or150mm optional
Control System	touch screen
Standard Mold Set Size(mm)	230×120×150 （25kg）
Max.Mold Set Size(mm)	300x200x150
Max. Part Size(mm)	100×90×18

Detailed Images

Packing & Delivery

We Are Guaranteed,
All for our products have passed ISO9001:2008, ISO14001:2009, TS16949:2009, raw material can meet ROHS,CE standard. Meanwhile, we guarantee after sold in 1 year, we will send the new products for natural damage
Delivery Time: 10--45 days.

Our Company

Shenzhen JXC Equipment Co Ltd.

Is a manufacturer which combines R&D and marketing,we have professional R&D team as well as proficient stuff,and has been specializing in researching and producing high quality electromechanical equipment for 10 years.Shenzhen JXC Equipment Co Ltd., is a manufacturer which coombines R&D and marketing.We have professional R&D team as well as proficient stuff,and has been specializing in researching and producing high quality electromechanical equipment for ten years.
Our main products include Battery production equipment,low pressure injection molding machine,low pressure injection mold,low pressure injection molding material,machine parts and so on.
