Manual Cell Phone Battery Spot Welder Service Provider of Battery Pack TWSL-100

Manual Cell Phone Battery Spot Welder service provider of battery pack  TWSL-100

1 ,Model: TWSL-100

2 ,Power: 15KVA

3 ,Power parameters:

Input voltage:200-240VAC

Primary current:25-60A

Power frequency:50-60Hz

Power plug: 3LEGS

4 ,Secondary current:

Secondary short-circuit current (maximum) 4500A

Power factor: 0.5%

 5 ,Welding Control:

Pre-welding pulses (MAX) 0-99

Welding pulses (MAX) 0-99

Welding power series 0-99

6 ,Power supply allows the fluctuation range + 30-40

7 ,Buffer time adjustment range 0.2 seconds x8

8 ,Digital display :digital

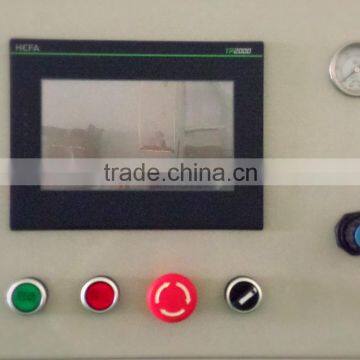

9 ,Control Panel: touch membrane type

10 ,The main control chip: MPU

11 ,Memory chip: EEPROM

12 ,Operating mode: The foot switch

13 ,Weight : 100KG

14 ,Size :880x750x1300 mm

Feature

1 ,Imported energy storage power, welding voltage lockout technology to prevent network pressure fluctuations in the welding current.

2 ,Welding adjustable pulse width, small spatter, weld discoloration.

3 ,Discharge of imported IGBT module, enabling single-pulse and double pulse with multi-pulse welding.

4 ,Advanced technology: the continuous exchange with the international advanced inverter technology improvement and innovation. Dual pulse welding, welding and continuous pre-welding. Pre-solder oxide removal, remove debris, reducing the spark,, Continued solder joint cosmetics firm, no black, solder joints uniform size burr, does not affect the appearance of the product.

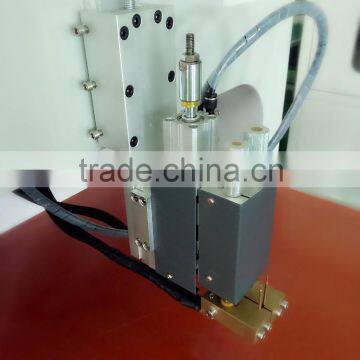

5 ,Adjustment easy to use: solder pin spacing is adjustable, suitable for fine components welding, alignment accuracy, high yield.

Scope:

1 ,This professional welder power battery cells (thick slices 0.5mm or less) welding design.

2 ,18650 nickel belt suitable for welding, soldering connection battery, button cell welding, with guide wire between the nickel-metal hydride batteries and lithium batteries, nickel plate aluminum alloy nickel composite tape, appliance parts and welding wire, light bulbs foot welding, welding mobile power and cell phone battery.

Welder MPU microcomputer control, pneumatically operated, small dimensions, with a protection circuit and alarm display, welding preheat wave, voltage fluctuation automatic compensation function to ensure stable energy output, high joint quality, easy maintenance, can improve the welding effectiveness. Suitable for high-volume production line.

FAQ

1 , What is the product ?

It is a welding machine for lithium battery , use for all type of lithium battery  welding .

2 , how is it performance ?

It is  more effectioncy , works faster  ,it can help you increase production run ,

and decrease production cost .

3 , what about the quality guarantee and after-sale service ?

we prrovide one year quality guarantee , full time after-sale service .

4 , we want to open battery factory  or an automating system for lithium battery , how it can do that ?

Yes , we can provide you the battery system and solution .
