Cheap Spot Welder for Batteries and Household Demostic Appliances From China

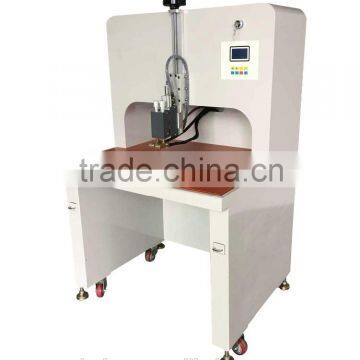

TWSL-100 pneumatic energy storage spot welding machine 18650 battery pack welding systems

1. Model: TWSL-100

2. Power: 15KVA

3. Power parameters:

 Input voltage:200-240VAC                       Primary current:25-60A

Power frequency:50-60H                           Power plug: 3LEGS

4. Secondary current:

Secondary short-circuit current (maximum) 4500A

Power factor: 0.5%

 5. Welding Control:

Pre-welding pulses (MAX) 0-99                              Welding pulses (MAX) 0-99

Welding power series 0-99

6. Power supply allows the fluctuation range + 30-40

7. Buffer time adjustment range 0.2 seconds x8

8. Digital display :digital

9. Control Panel: touch membrane type

10. The main control chip: MPU

11. Memory chip: EEPROM

12. Operating mode: The foot switch

13. Weight : 100KG

14. Size :880x750x1300 mm

Feature

1. Applied for mobile phone batteries, 18650battery, power batery, button battery, Ni-MH battery, etc spot welding; households spare parts, wires, handware accessories, stailess table wear spot welding and so on.  spot welding.

2. Small in size, auto circuit protection and danger alarm.

3. Automatic compensation to the distribution voltage, ensuring stable power output.

4. Imported IGBT module for adjustable pulse width. Dual pulse welding: pre-welding and renew welding available to clean out oxide removal, remove debris, reduce sparks for solid, spotless, uniformed and purrless welding.

5. Welding probes space adjustable, suitable for delicate components welding, para position accurate,  high efficiency.
