TWSL-700 High Speed Cell pack Battery Spot Welding Machine, 18650 26650 Welder Battery Pack Spot Welder Battery Tabs Welder

 TWSL-700 High Speed Cell Phone Battery Spot Welding Machine, 18650 26650 Welder

Battery Pack Spot Welder Battery Tabs Welder

Product Name: Phone Battery Spot Welding Machine TWSL-700

power: 15 KVA (max)
Input Frequency: 50/60 Hz
Input voltage: 220 VAC
Input gas source: 5-8 Bar (kg / cm)
Primary current: 30-60 A
Primary short-circuit current: 4500 A
The whole structure: Integrated structure
Welding arm structure: Telescopic swing control
Electrodes to the body distance: 100 mm (Scalable adjustable)
Cylinder diameter: 20 mm
The number of pulses :  0-9
Pulse energy level: 0-99
Automatic compensation range: + 30V - 40V
Panel digital display: 7-segment LED display
External dimensions : 445 * 224 * 343 mm
Gross weight : 42 kg

Feature

1., For 18650 battery. Mobile power and other standardized production.
2 , Simple operating system, 7.5-inch color touch screen, user-friendly design, easy to understand.
3 , Control system: PLC programming control, with fault alarm system.
4 , Cooling device comes with solder pin to improve welding and prolong machine life.
5 , X- and Y-axis ball screw design, full servo motor driven and  ball screws power transmission to ensure welding accuracy.
 6.Imported energy storage power, welding voltage lockout technology to prevent network pressure fluctuations in the welding current.

 7.,Welding adjustable pulse width, small spatter, weld discoloration.

8.Discharge of imported IGBT module, enabling single-pulse and double pulse with multi-pulse welding.

9.Advanced technology: the continuous exchange with the international advanced inverter technology improvement and innovation. Dual pulse welding, welding and continuous pre-welding. Pre-solder oxide removal, remove debris, reducing the spark,, Continued solder joint cosmetics firm, no black, solder joints uniform size burr, does not affect the appearance of the product.

10.Adjustment easy to use: solder pin spacing is adjustable, suitable for fine components welding, alignment accuracy, high yield.

Scope:

1 ,This professional welder power battery cells (thick slices 0.5mm or less) welding design.

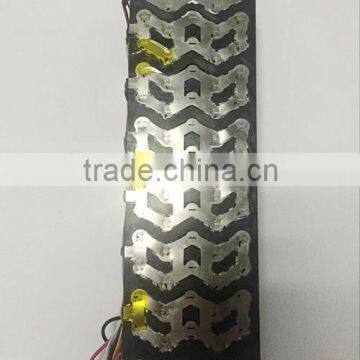

2 ,18650 nickel belt suitable for welding, soldering connection battery, button cell welding, with guide wire between the nickel-metal hydride batteries and lithium batteries, nickel plate aluminum alloy nickel composite tape, appliance parts and welding wire, light bulbs foot welding, welding mobile power and cell phone battery.

Welder MPU microcomputer control, pneumatically operated, small dimensions, with a protection circuit and alarm display, welding preheat wave, voltage fluctuation automatic compensation function to ensure stable energy output, high joint quality, easy maintenance, can improve the welding effectiveness. Suitable for high-volume production line.

FAQ

1 , What is the product ?

It is a welding machine for lithium battery , use for all type of lithium battery  welding .

2 , how is it performance ?

It is  more effectioncy , works faster  ,it can help you increase production run ,

and decrease production cost .

3 , what about the quality guarantee and after-sale service ?

we prrovide one year quality guarantee , full time after-sale service .

4 , we want to open battery factory  or an automating system for lithium battery , how it can do that ?

Yes , we can provide you the battery system and solution .
