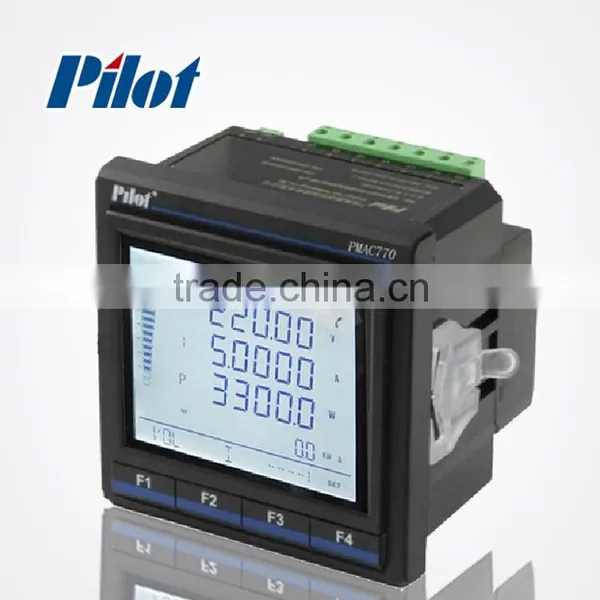

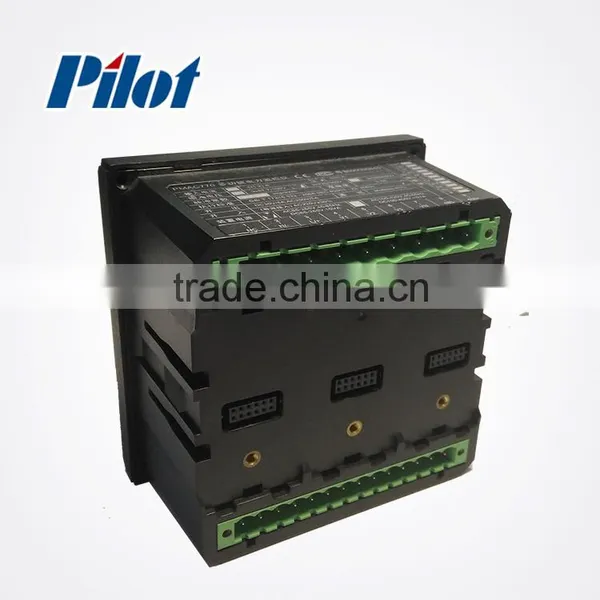

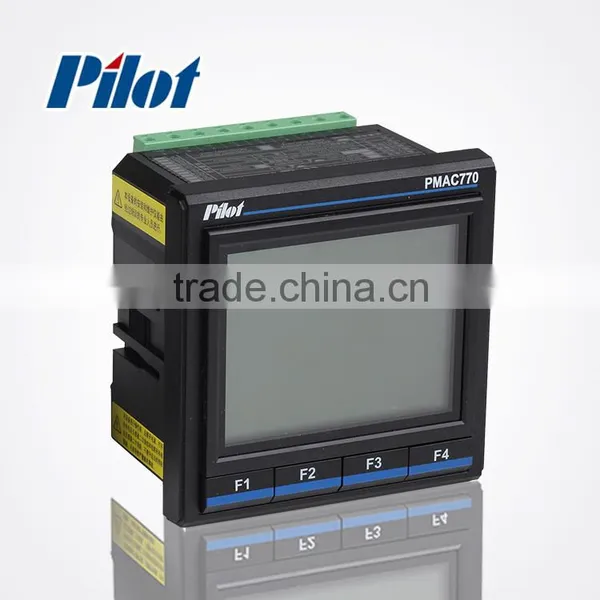

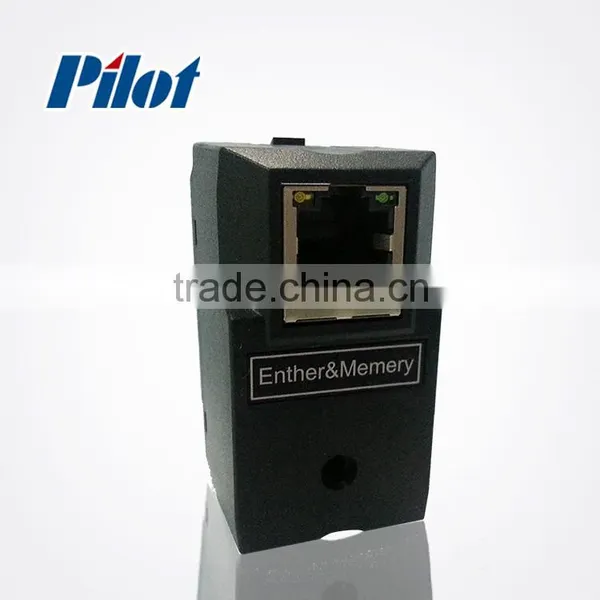

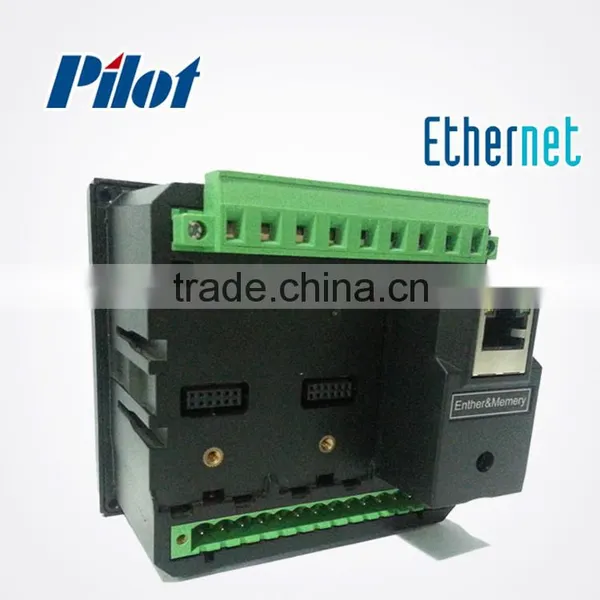

PILOT PMAC770-DR Quality Analysis DIN Rail Power Meter

FOB Price

Negotiable / Piece

8 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

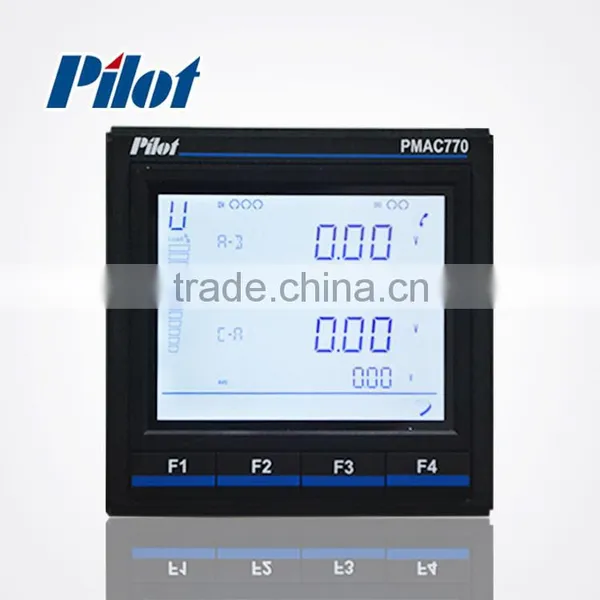

PILOT PMAC770-DR quality analysis DIN Rail Power Meter

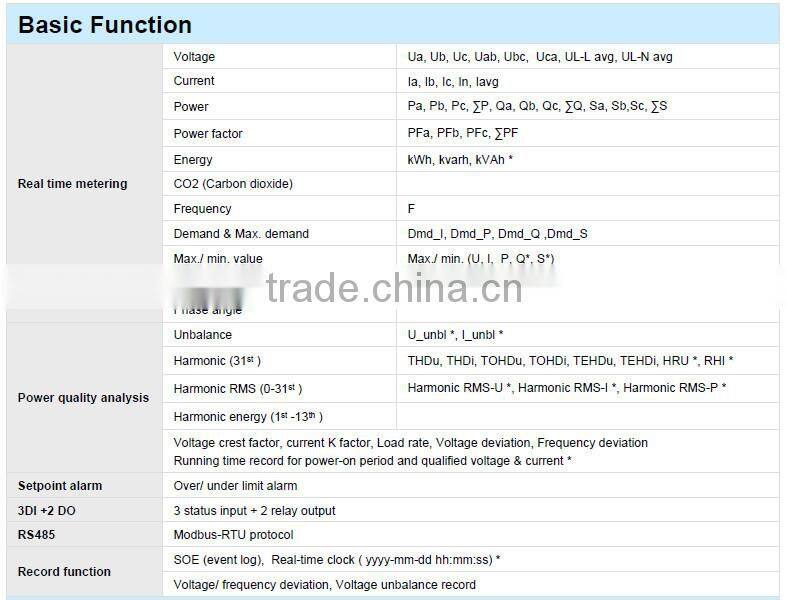

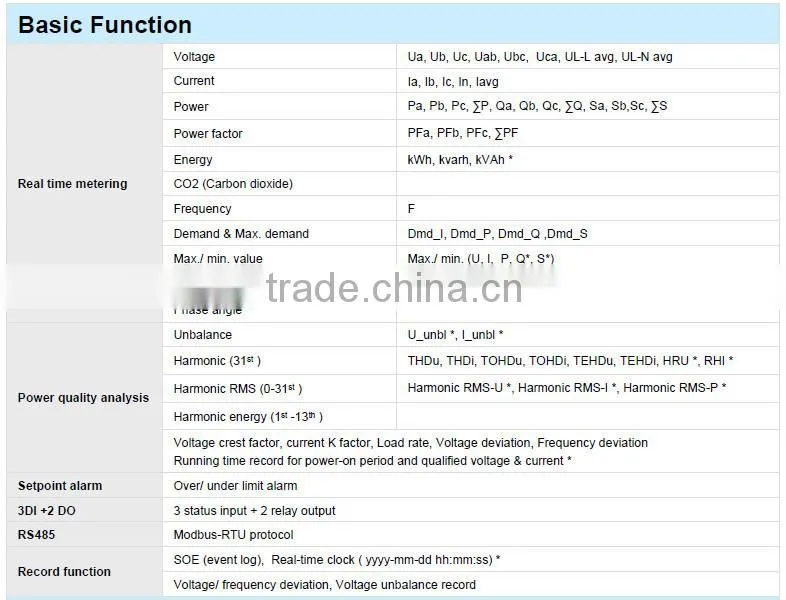

good design with lcd panel meter Feature:

1. Multifunction RMS measurement

2. Demand calculation mode is programmable

3. Multi-tariff billing, historical data of 31 days and 12 months

4. Real-time measurement, Power quality analysis

5. Support online upgrade

6. Setpoint alarm

7. CO2 (carbon dioxide) emission calculate

8. High accuracy, U, I up to 0.2% accurracy

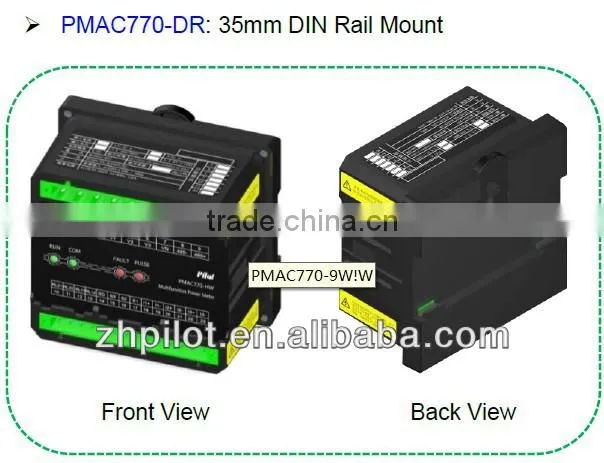

8. Small size and 35mm DIN rail installation, Pluggable terminal, easy to install

9. LED indicates situation of the meter

10. RS485 Communication: Modbus-RTU protocol

11. Standard IEC62053-22/ 23, CE. KEMA

Product Description

Metering	True RMS, 1 sec refresh time
Input	Rate current: 1A or 5A Rate voltage: direct 0 ~690V Frequency: 50/ 60Hz
Overload	120% of rated, continuously Instantaneous current: 10 times/ sec Instantaneous voltage: 2 times/ sec
Status input	Wet contact, external power supply
Relay output	Node capacity: 250VAC/5A
Pulse output	Pulse constant: 1000~9999 programmable Pulse width: 60~100ms programmable Formula: 1 pulse = (1÷ pulse constant ×PT ×CT) kWh
Power frequency withstand voltage		AC 2KV/minute
Insulation resistance		≥50MΩ
Impulse withstand voltage		4kV (peak), 1.2/50uS

Power supply	85-265V AC / 100-300V DC
Power loss	≤5VA
Communication	RS485 serial, support Modbus-RTU Baud rate: 1200, 2400, 4800, 9600, 19200, 38400bps Address: 1~247
Dimension (L x W x H)	Panel: 96 x 96 x 13.5mm Cut-out: 90 x 90 x 45.1mm
IP index	IP52 (front panel) and IP30 (case)
Weight	Basic unit: approx 400gr.
Environment	Operating temperature: -10°C~ +55 °C Storage temperature: -40°C~ +70 °C Humidity: 5%~95% non-condensing

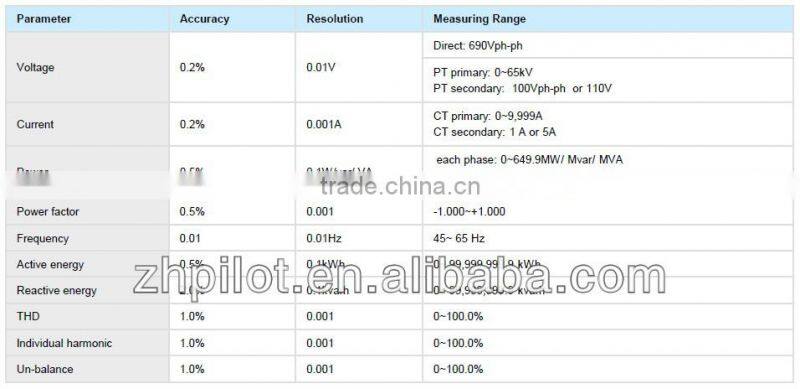

Technical specification

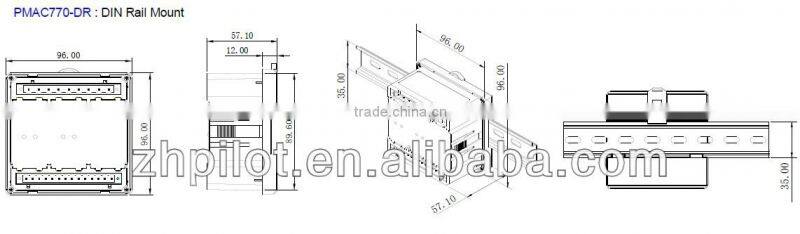

Dimension

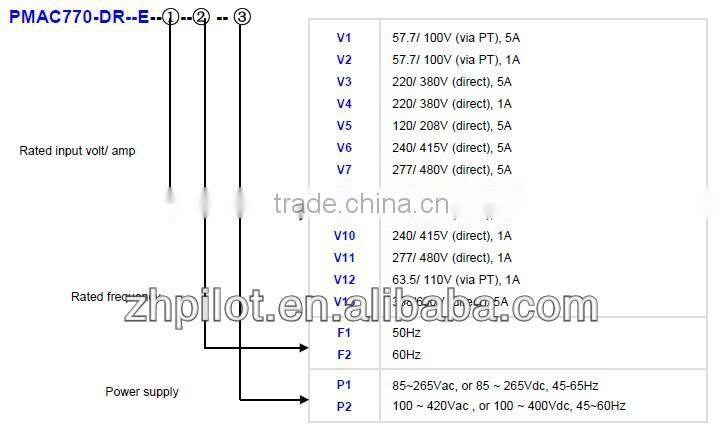

Order Information:
