Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > DC Multi Channel Branch Circuit Power Meter in China
US$ 1500.00 - 1500.00
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PILOT
Model Number:
PMAC203
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhuhai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PILOT PMAC203 DC Branch Circuit Power MonitorNegotiableMOQ: 1 Unit -
PILOT BMS Battery Management SystemUS$ 30 - 1,000MOQ: 1 Unit
-
12V Battery Temperature MonitorUS$ 20 - 70MOQ: 10 Units
-
BTS Monitor in TelecommunicationNegotiableMOQ: 1 Unit
-
PILOT PMAC203 DC Multi Channel Energy MeterNegotiableMOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
PILOT
Model Number
PMAC203
Display Type
Digital Only
Phase
Single Phase
Measuring Energy Range
0-999999
Accuracy Class
Class 1.0
Output Voltage
24Vdc
Operating Temperature
10~55
Dimensions
123.6*178.5*99mm

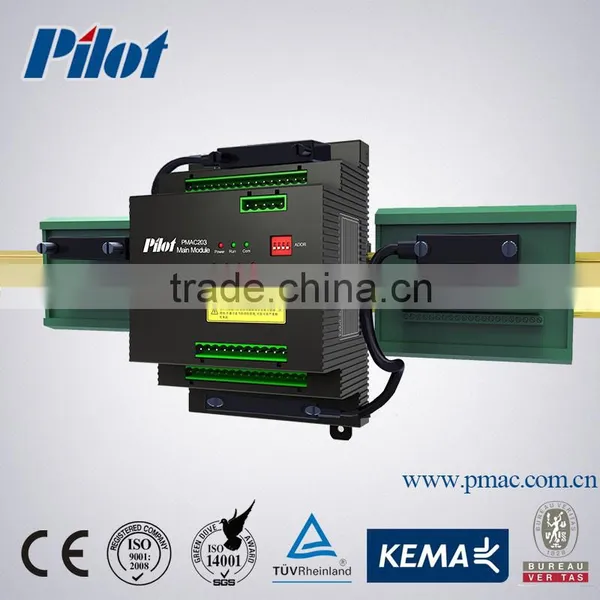

PMAC203 DC Multi Channel Branch Circuit Power Meter
Application
Application
ØDC load management
ØData Center Power Manage
ØTelecommunication Power Manage
ØDC Insulation resistance monitoring
Product Description
DC power system voltage
Ø240VDC with 24VDC Hall sensor
Ø48VDC with +/-12VDC Hall sensor
ØCustomizable DC voltage level, from 48~ 400VDC
Function
Measuring: 1 main circuit + 42 branch circuits, Hall sensor zero point calibration
DI: 4 status inputs (dry contact) for Main breaker and Lightning protection switch,
DO: 2 relay outputs for alarm, 1 pulse output
Settable Pre-Alarm function:
Main circuit: Alarm for voltage, current, load, breaker status. Option alarm for Insulation resistance and temperature.
Branch circuit: Alarm for current (lo-lo-limit, lo-limit, hi-limit, hi-hi-limit), breaker status. Option Insulation resistance .
Communication: RS485, support Modbus-RTU protocol
Optional Hall Sensor input for Main circuit: 100A, 200A, 400A, 600A, 800A, 1600A
Optional Hall Sensor input for Branch circuit: 50A, 100A, 200A
Hall sensor zero point calibration
Optional mean and branch circuit status monitor
Temperature and isolation monitor
Historical kWh record: kWh yearly consumption of last 10 years,
kWh monthly consumption of last 12 months
