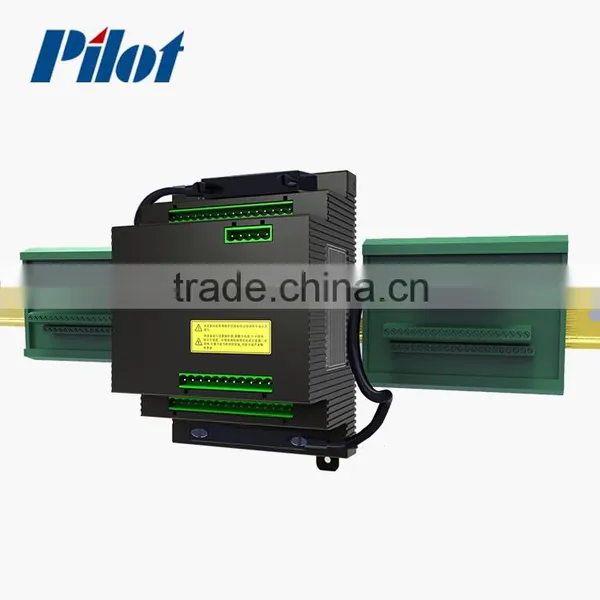

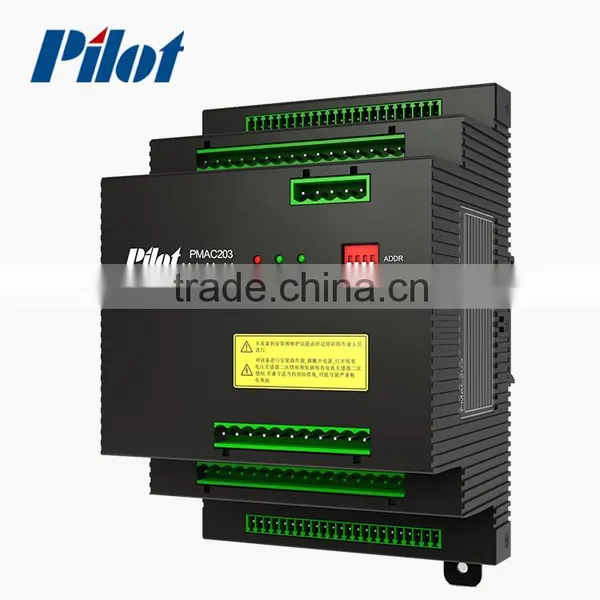

PILOT PMAC203 Multi Circuit DC Energy Meter

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port Zhuhai Port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	PILOT
Model Number	PMAC203	Display Type	Digital Only
Phase	Single Phase	Measuring Energy Range	0-999999
Accuracy Class	Class 1.0	Output Voltage	24Vdc
Operating Temperature	10~55	Dimensions	123.6178.599mm

Product Description

PILOT PMAC203 Multi circuit DC Energy meter

Application

Application

ØDC load management

ØData Center Power Manage

ØTelecommunication Power Manage

ØDC Insulation resistance monitoring

Product Description

DC power system voltage

Ø240VDC with 24VDC Hall sensor

Ø48VDC with +/-12VDC Hall sensor

ØCustomizable DC voltage level, from 48~ 400VDC

Function

Measuring: 1 main circuit + 42 branch circuits, Hall sensor zero point calibration

DI: 4 status inputs (dry contact) for Main breaker and Lightning protection switch,

DO: 2 relay outputs for alarm, 1 pulse output

Settable Pre-Alarm function:

Main circuit: Alarm for voltage, current, load, breaker status. Option alarm for Insulation resistance and temperature.
Branch circuit: Alarm for current (lo-lo-limit, lo-limit, hi-limit, hi-hi-limit), breaker status. Option Insulation resistance .

Communication: RS485, support Modbus-RTU protocol

Optional Hall Sensor input for Main circuit: 100A, 200A, 400A, 600A, 800A, 1600A

Optional Hall Sensor input for Branch circuit: 50A, 100A, 200A

Hall sensor zero point calibration

Optional mean and branch circuit status monitor

Temperature and isolation monitor

Historical kWh record: kWh yearly consumption of last 10 years,

kWh monthly consumption of last 12 months
