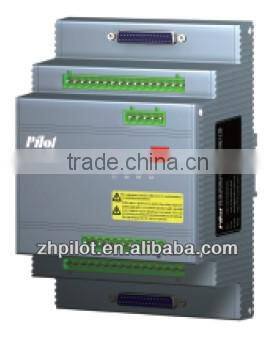

PILOT PMAC202 brabch circuit power meter
Product Description
Application
Load management
Data storage industry
Lighting Panels
Main feature:
1. One incoming circuit and Max. 42 outgoing circuit electrical
parameter measuring and analysis
2. DI/DO: 4 status inputs, 2 relay outputs, neutral voltage(0~5V),
one temperature measurement
3. Measure incoming circuit 3 phase voltage and current, neutral
current, neutral voltage
4. Power load analysis monitoring and pre-alarm
5. Event Log: Record Max. 5000 event
6. Support RS485 modbus communication port.
7. Multi-tariff energy (TOU); four tariffs, 8 time periods
8. Memory 8M bytes: keep I, U, kWh, Power Factor per 15 min.
for one week
9. Current input: incoming 5A, outgoing 0.1A
Technical Specification:
Incoming circuit | 1 circuit, three phase 220V/380V ac |
Outgoing circuit | 21 or 42 (Opthonal) |
Power supply | 24V DC |
MTBF | ≥50000h |
Service Life | 10 years |
Rated Voltage | 220V/380V ac Range: 10%~150%, Accuracy: 0.5% |
Rated incoming circuit current | 5A, Range: 1%~120%, Accuracy: 0.5% |

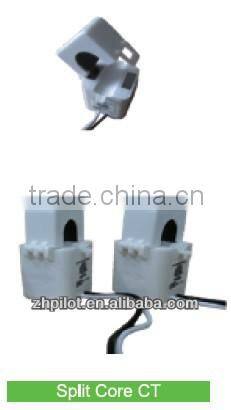

Rated outgoing circuit current | CT strip: 50A ac, Range: 1%~100%, Accracy:0.5% Split core CT: 25A, 50A, 100A, 200A, Range: 1%~100%, Accuracy: 0.5% Customized CT: support 0.1A input |
Rated Frequency | 50Hz, Range: 45~65Hz, ±0.01Hz |
Power Factor | Accuracy: Incoming circuit : 1% Outgoing circuit: 1% |
Active power & active energy | Accuracy: Incoming circuit : 1%, Outgoing circuit: 1% Note: CT accuracy require class 0.5 |
Reactive power & reactive energy | 2% |
Communication | RS485 port Baud rate: 2400, 4800, 9600, 19200(optional) |
Digital input (Wet contact) | 220V ac, 40%~120% |
Digital input (Dry contact) | External provides 30V dc |
Relay output capacity | 220Vac/5A or 30Vdc/5A |
Environment | Operation: -10°C ~ +55 °C Storage : -25°C ~ +70 °C Humidity: 5%~95%, non-condensing |
Measuring feature:
A—Basic function
Income circuit monitoring:
1. Voltage-Ua, Ub, Uc;
2. Current--Ia, Ib, Ic, In, I unbal, Max. I
3. Active power– Pa, Pb, Pc, ∑P
4. Reactive power – Qa, Qb, Qc, ∑Q
5. Power factor -- PF
6. Frequency – F
7. Active energy – kWh
8. Reactive energy -- kvarh
9. Demand and Max. record for I
10. THD for U, I
11. 4 status, 2 relay
Outgoing circuit monitoring:
1. I, Max. I, P, Q, PF, kWh, kvarh,
2. Demand and Max. record for I
3. THD for I
B—High configuration function
Income circuit monitoring:
1. Voltage-Ua, Ub, Uc;
2. Current--Ia, Ib, Ic, In, I unbal, Max. I
3. Active power– Pa, Pb, Pc, ∑P
4. Reactive power – Qa, Qb, Qc, ∑Q
5. Power factor -- PF
6. Frequency – F
7. Active energy – kWh
8. Reactive energy -- kvarh
9. Demand and Max. record for I
10. THD for U, I
11. 4 status, 2 relay
Outgoing circuit monitoring:
1. I, Max. I, P, Q, PF, kWh, kvarh,
2. Demand and Max. record for I
3. THD for I
4. Input status
Order information:
Main module: montoring 21 or 42 branch circuits
CT: option 1
CT: option 2 CT: option 3
7 inch touch-screen HMI
DI module: Power Supply module:
